Sails

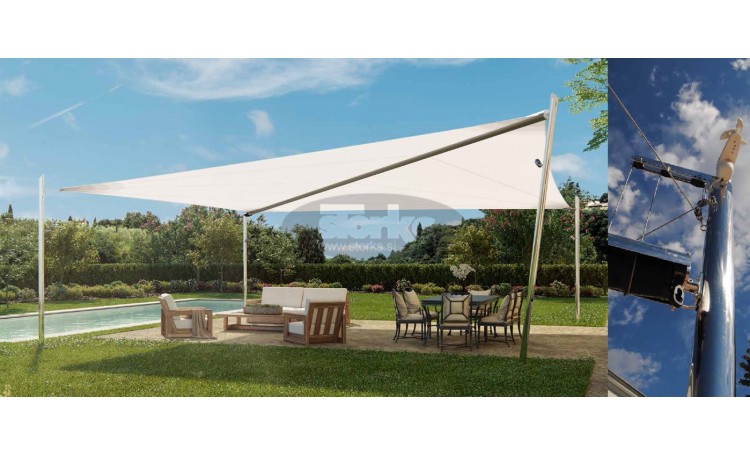

Freestanding shade sail with structure made of polished + electropolished + passivated stainless steel, manual or 230V 50 Hz motor-driven version, anemometer, radio control, sail in white Dacron®, radial cloth cuts, weight 400 sq. m and sail cover.Maestrale can have a square or rectangular shape with 90° angles.Optional: LED spotlight, electrical connections for motor/radio for LED spotlight, resin-bonded Tempotest® StarLight® sail in “not fire-retardant” or “fire-retardant” version, pole in satin-finished and electropolished version.LED spotlight: provided with 8,2 W, 230 V 50-60 Hz LED lamp, 4000°k natural light, lumen 800, and 4-m long electric cable. Made of silver-anodized aluminum alloy and applied to the pole with a polished stainless steel bracket allowing light orientation.

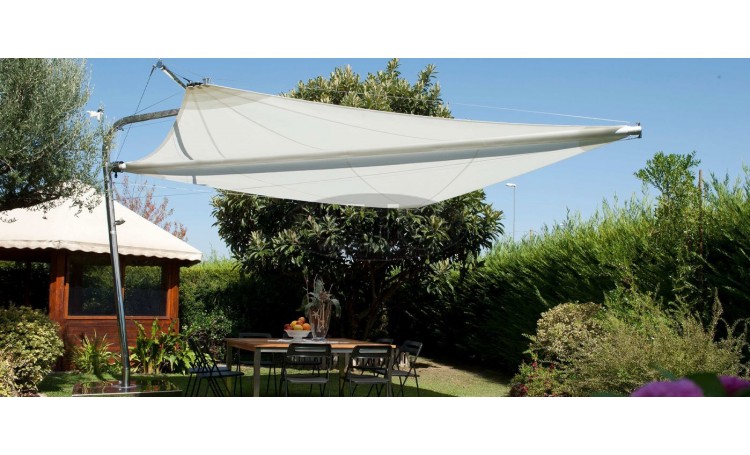

Self-supporting Defense is equipped with a sail that can rotate by 360° while wall-mounted Defense can rotate by about 90°. The sail can be rolled up or opened very quickly thanks to the motor integrated in the roller tube, and controlled manually or via remote control. The motorised version is equipped with an anemometer that triggers sail automatic closure in case of strong wind.Self-supporting or wall-mounted shading structure consisting of two sails wound on a horizontal bar supported by a shaped pole. Roller tube, Ø 65 x 2 mm, in anodised aluminium. Shaped pole, Ø 60 x 3 mm, supporting arms Ø 40 x 2 mm in stainless steel, cables Ø 3 mm and stainless steel tensioners.Dacron® sails, available in white, with sail cover* and cleaning kits for standard stainless steel.The opening can be manual (standard) or motor-driven.

Maximum dimensions of the diagonals 6 x 12 m.Shading sail with self supporting structure on four legs, elegant and minimal, well expressing freshness and desire of light.Possibility to install the tube on the wall through special angular plates.Cloth tensioned patented system, cloth tensioned with gas springs inserted in frontal inclined poles.Micrometric adjustment for the inclination.DACRON fabric.Painting by polyester powder in our factory following rigid qualitative standard.

Maximum dimensions 5 x 5 m.
Shading sail with cloth tensioned patented system, with gas springs inserted in frontal inclined poles.Micrometric adjustment for the inclination. Polyester fabric.Double cable system for cloth alignment while closing and for security.

Maximum dimensions width 6 x projection 6 m.Shading sail with cloth tensioned patented system, with gas springs inserted in frontal inclined pole.Micrometric adjustment for the inclination.DACRON fabric.Painting by polyester powder in our factory following rigid qualitative standard.

dimension: 4 x 4 x 4 msurface: 6,1 m2fabric type: SOLIDIUMAcryl 250 gr/m2 / ColorRating 7/8 (max = 8) / Water repellentSUNBRELLAAcryl 260 gr/m2 / ColorRating 7/8 (max = 8) / Water repellent

dimension: 5 x 5 x 5 msurface: 9,8 m2fabric type: SOLIDIUMAcryl 250 gr/m2 / ColorRating 7/8 (max = 8) / Water repellentSUNBRELLAAcryl 260 gr/m2 / ColorRating 7/8 (max = 8) / Water repellent

dimension: 4 x 5 x 6,4 msurface: 7,35 m2fabric type: SOLIDIUMAcryl 250 gr/m2 / ColorRating 7/8 (max = 8) / Water repellentSUNBRELLAAcryl 260 gr/m2 / ColorRating 7/8 (max = 8) / Water repellent

dimension: 3 x 3 msurface: 7,8 m2fabric type: SOLIDIUMAcryl 250 gr/m2 / ColorRating 7/8 (max = 8) / Water repellentSUNBRELLAAcryl 260 gr/m2 / ColorRating 7/8 (max = 8) / Water repellent

dimension: 3 x 4 msurface: 10,4 m2fabric type: SOLIDIUMAcryl 250 gr/m2 / ColorRating 7/8 (max = 8) / Water repellentSUNBRELLAAcryl 260 gr/m2 / ColorRating 7/8 (max = 8) / Water repellent

dimension: 3 x 5 msurface: 13 m2fabric type: SOLIDIUMAcryl 250 gr/m2 / ColorRating 7/8 (max = 8) / Water repellentSUNBRELLAAcryl 260 gr/m2 / ColorRating 7/8 (max = 8) / Water repellent

dimension: 4 x 4 msurface: 13,8 m2fabric type: SOLIDIUMAcryl 250 gr/m2 / ColorRating 7/8 (max = 8) / Water repellentSUNBRELLAAcryl 260 gr/m2 / ColorRating 7/8 (max = 8) / Water repellent
