Fortero umbrella max. R 3,5 m or 3,5 x 3,5 m
dimensions and colors from stock (quickship program):
Ø350 cm, 200 × 300 cm, 250 × 350 cm, 250 x 250 cm, 300 x 300 cm, 350 x 350 cm without flounce, in colors: 150 / 453 / 523
shape:
round or square
dimensions:
R 350
200 x 300, 250 x 350, 250 x 250, 300 x 300 or 350 x 350 cm
flounce:
not available
frame:
8 rods made of natural anodized aluminium, 100 % inox, screws and rivets of high-grade steel, two-part profiled pole 55 × 2.5 mm, contrarotating opening system allowing for easy opening.
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester approx. 220 g/m²),
Class 4 (100 % polyester approx. 250 g/m²),
Class 5 (100 % polyacrylic approx. 300 g/m²).
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)

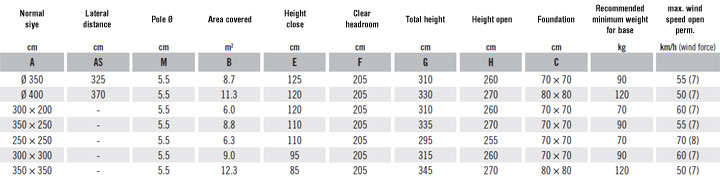

Specification
Looser cover max. 10 cm, concrete thickness min. 30 - 40 cm 8 parts
(pay attention to frost depth), water outflow.
The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Height dimensions are based on ground socket PX. These differ slightly depending on the type of base. Apart from the steel base minus 7.5 cm.
The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage.
