Alu-Twist umbrella max. R 3,3 or 2,4 x 2,4 m



dimensions and colors from stock (quickship program):
Ø270 cm, Ø300 cm, Ø330 cm, without flounce, in colors: 127 / 150 / 151 / 156 / 157 / 162 / 403 / 404 / 420 / 422 / 453 / 461
150 × 210 cm, 200 × 250 cm, without flounce, in colors:  127 / 150 / 151 / 156 / 157 / 162 / 403 / 404 / 420 / 422 / 453 / 461
240 × 240 cm, without flounce, in colors:  127 / 150 / 151 / 156 / 157 / 162 / 403 / 404 / 420 / 422 / 453 / 461

shape:
round, square or rectangle

dimensions:
R 270 cm,  R 300 cm or R 330 cm
240 x 240 cm
150 x 210 cm or 200 x 250 cm

flounce:
not available

frame:
6 or 8 rods made of aluminium, anodized natural, with a profiled pole – upper pole 38.4 × 1.2 mm – lower pole 39 × 1.5 mm, with crank mechanism for easy opening and “twist” mechanism for stepless tilting.

shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester approx. 220 g/m²),
Class 4 (100 % polyester approx. 250 g/m²),
Class 5 (100 % polyacrylic approx. 300 g/m²).



Video presentation




Material class 2 (100 % polyester approx. 220 g/m²)




Material class 4 (100 % polyester approx. 250 g/m²)



Material class 5 (100 % polyacrylic approx. 300 g/m²)



Specification

Podrobnosti
Looser cover max. 10 cm, concrete thickness min. 30 cm
(pay attention to frost depth), water outflow.

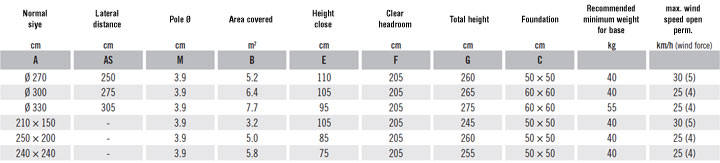

Specification

The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Height dimensions are based on ground socket M4. These differ slightly depending on the type of base. Except for base M4, 180 kg plus 15.5 m, 240 kg plus 19 cm.
The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage.
In the presence of several sunshades, the min. distance between one sunshade and another and between sunshades and walls shall be 20 cm.

204
€353.50 (tax incl.) €353.50 (tax excl.)
(No tax)



  • R 270 cm
  • R 300 cm
  • R 330 cm
  • 150 x 210 cm
  • 200 x 250 cm
  • 240 x 240 cm

  • Class 2
  • Class 4
  • Class 5

  • YES model Z
  • YES model Z - INOX 304
  • YES model BT
