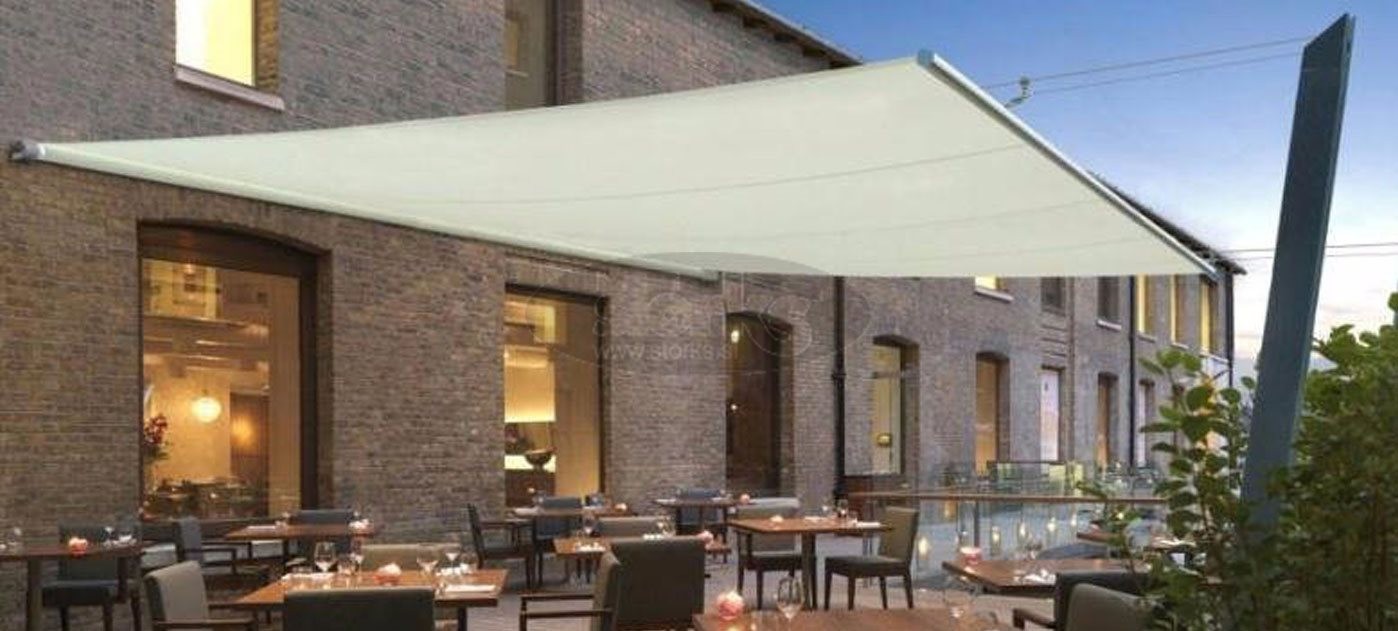

R310 Vela Cube 5 x 5 m
Maximum dimensions 5 x 5 m.
Shading sail with cloth tensioned patented system, with gas springs inserted in frontal inclined poles.
Micrometric adjustment for the inclination.
Polyester fabric.
Double cable system for cloth alignment while closing and for security.
Standard colors of construction +10%
Cloths Tempotestar
producer: Para
composition: 100% PET
width: 120 cm
weight: 300 g/m2
water column: 380 mm
oil repelency: 5 degree
colour fastness to light: 7/8-8 degree blue scale (UNI EN ISO 105-B04) 4/5 degree grey scale (UNI EN ISO 105-B04)
breaking load: Warp: 2100 N Elongation: 56,0% Weft: 1400 N Elongation: 40,0%
pantone color: 19-3925
RAL color: 5013
NCS color: S 8010 - R70B
HI-CLEAN: Special treatment made of micrometric particles covering a large surface area which gives in partnership with DupontTM Teflon® the following characteristics: • Repellent to normal dirt formation • Water-repellent • Excellent dimensional stability
Plan
