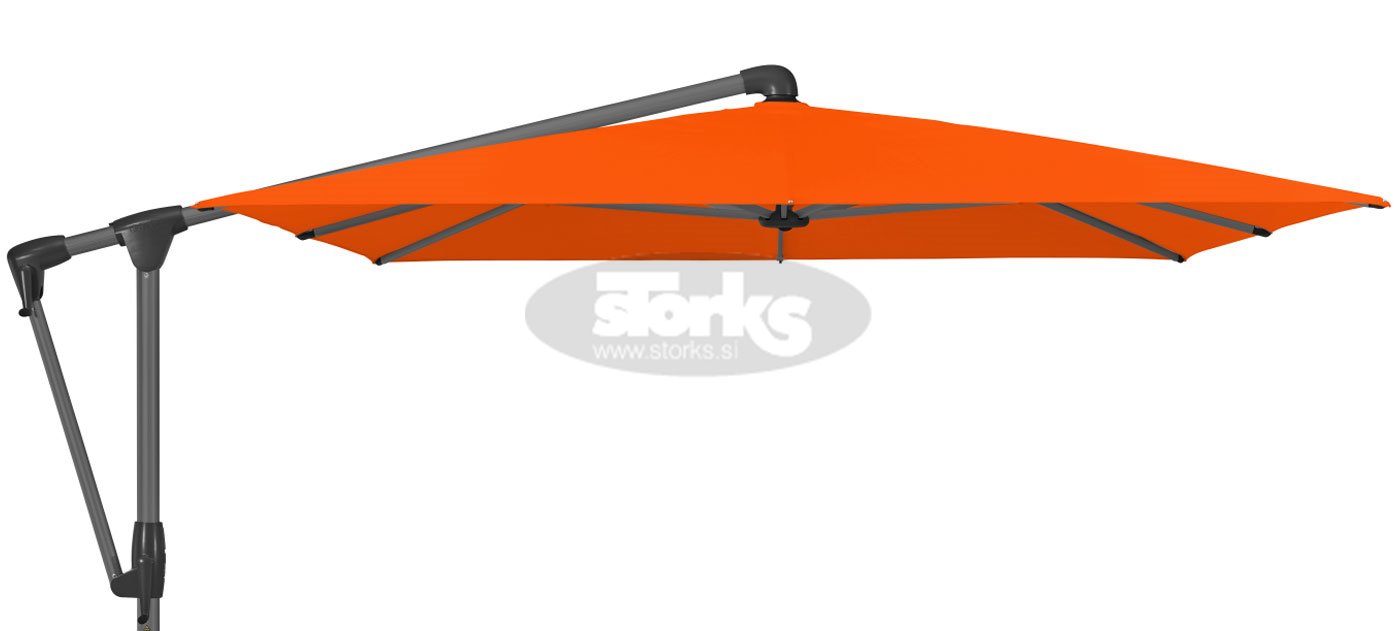

Sunwing CASA umbrella max. R 3,3 m or 2,7 x 2,7 m
dimensions and colors from stock (quickship program), (natural anodized or anthracite powder-coated):
Ø300 cm, Ø330 cm, without flounce, in colors: 150 / 151 / 157 / 408 / 420 / 422 / 453 / 461 / 501 / 523 / 605 / 684 / 686
240 × 300 cm, without flounce, in colors: 150 / 151 / 157 / 408 / 420 / 422 / 453 / 461 / 501 / 523 / 605 / 684 / 686
270 × 270 cm, without flounce, in colors: 150 / 151 / 157 / 408 / 420 / 422 / 453 / 461 / 501 / 523 / 605 / 684 / 686
shape:
round or square
dimensions:
R 300 or R330 cm
240 x 300 or 270 x 270 cm
flounce:
not available
frame:
8-part made from aluminium with crank mechanism for opening and adjusting the roof inclination comfortably, up to 45° on both sides. The pole profile is round, 55 × 2.5 mm. With a removable hand crank.
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 4 (100 % polyester approx. 250 g/m²),
Class 5 (100 % polyacrylic approx. 300 g/m²).
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)

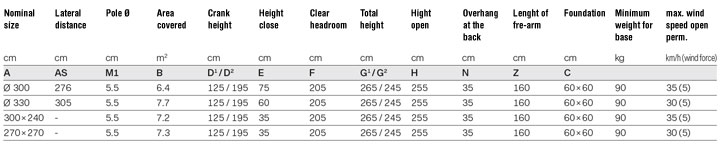

Specification
Looser cover max. 10 cm, concrete thickness min. 30 - 40 cm
(pay attention to frost depth), water outflow.
The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Height dimensions are based on ground socket PX. These differ slightly depending on the type of base.
With the base variant these vary slightly. With the variants with the ground sockets M4 and mounting plate M4 / M8, the stated height dimensions vary by 11,5 – 15,5 cm.
The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage.
In the presence of several sunshades, the minimum distance between one sunshade and another and between sunshades and walls shall be 20 cm.
