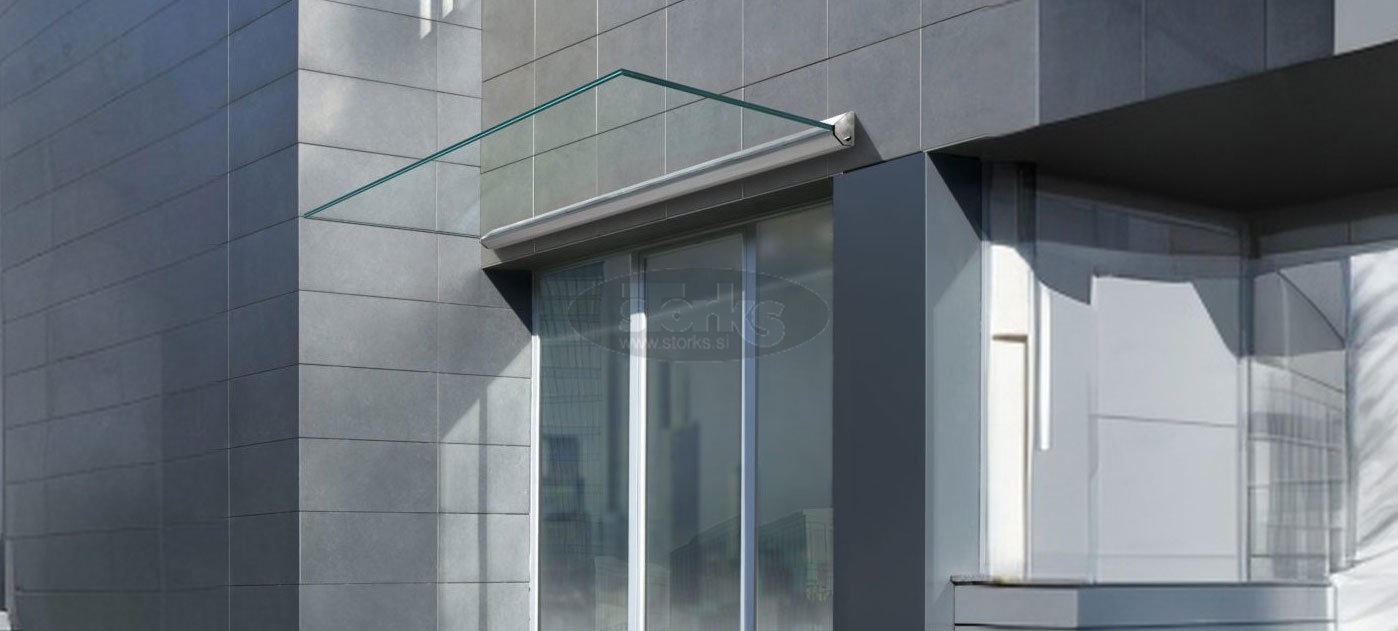

G20 Minimal glass canopy max. 1,2 x 2,5 m
A minimal glass canopy with integrated water drainage and optional LED lighting. Designed for clean lines, simple installation and reliable weather protection.
The G20 Minimal glass canopy max. 1,2 x 2,5 m is a modern wall mounted system for entrances, walkways and small outdoor coverings. It has a slim profile and a clean architectural look. The structure uses a wall supporting profile with integrated technical elements that collect rainwater and guide it to a single drainage point. This keeps the area dry and prevents uncontrolled dripping.
The system offers optional LED lighting. You can place the light on the lower side to illuminate the walkway or inside the profile between the glass and the frame. This creates a discreet and even light line.
The system is easy to install. It does not require notches or drilled holes in the glass. Profiles are available in aluminium, stainless like finish and other finishes on request.
The silver structure price includes 10+10 tempered extraclear glass with stiff PVB 1.52 and side plastic caps.
FEATURES
Minimal and clean design.
Wall mounted profile with integrated rain collection and single drainage point.
Optional LED lighting below the canopy or inside the profile.
Easy installation without drilling the glass.
Aluminium or stainless like profiles. Other finishes available on request.
Includes 10+10 tempered extraclear glass with stiff PVB 1.52 and side plastic caps.
USE CASES
Building entrances
Residential doors
Commercial shop fronts
Hotel and restaurant access points
Walkway protection
Small outdoor covering areas up to 1.2 x 2.5 m
Standard colors for BT Glass systems
RAL Gloss
Matt satin colours table
Colours shown are approximate. For accurate selection, always refer to the official RAL chart.
Special colours
Frozen
FROZEN colours are powder coatings for metal surfaces. They reflect infrared radiation, keep the coated surface at a lower temperature and offer high outdoor durability.
Plan
