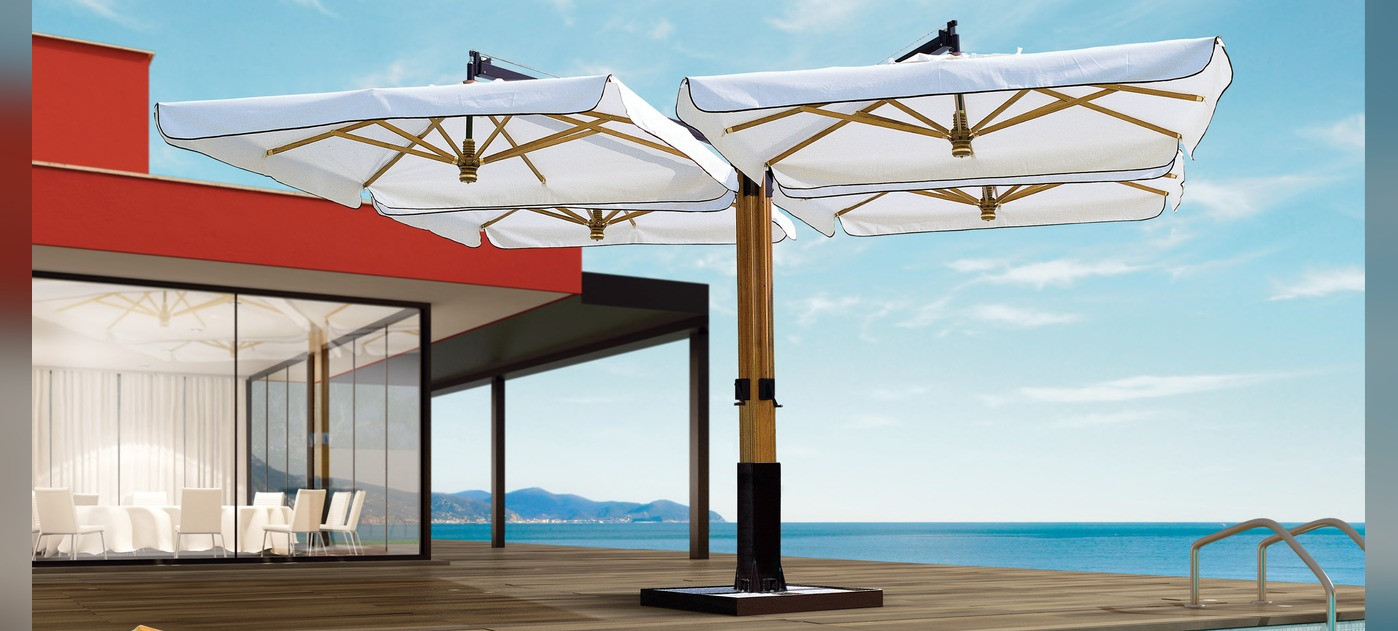

Quadrifoglio modular parasol up to 8 x 8 m

Quadrifoglio is a modular parasol in IROKO wood with wooden ribs. It covers from 600 x 600 to 800 x 800 cm. You open it with independent winches. Each piece is made by hand.

frame: IROKO wood treated with low-impact products, painted wooden ribs
opening: independent winches
sizes: from 600 x 600 to 800 x 800 cm
weight: 350 to 400 kg, depending on size
colours: wood colour, anthracite, corten, white, other RAL shades at extra cost
code: QF6060, QF6080, QF7070, QF8080

Description

Technical data

frame: IROKO wood treated with low-impact products
ribs: painted wood, 24 ribs, section 20 x 35 mm and 17 x 35 mm
pillar: 200 x 200 mm
components: steel, cataphoresis treated and powder coated
opening: independent winches
stainless steel screws
wind vent
canopy: solution-dyed acrylic
sizes, height and weight:
- 600 x 600 cm: height 360 cm, weight 350 kg
- 600 x 800 cm: height 360 cm, weight 380 kg
- 700 x 700 cm: height 360 cm, weight 380 kg
- 800 x 800 cm: height 360 cm, weight 400 kg
mounting: without, base frame 125 x 125 cm, concrete ballast 120 kg (50 x 50 cm), ground socket for concrete or metal plate 80 x 80 cm
number of concrete ballasts: 4 pieces (600 x 600, 600 x 800, 700 x 700 cm), 8 pieces (800 x 800 cm)
frame colours: wood colour, anthracite, corten, white, other RAL shades to order at extra cost
accessories: protective cover, base cover, LED lighting

ACRYLIC - long lasting
Traditional acrylic is a yarn made from man-made fibres. It is fully synthetic. Its use has grown steadily in recent years because it is versatile and works in every field. The acrylic we use weighs 300 g/m². It is waterproof and treated against mould. Its main strengths are resistance to wear and to weather. This makes it a long-lasting choice if you want a professional, technically sound product.

TEMPOTEST acrylic
As with the other PARA fabrics, the dyed fabric gets a special treatment with Teflon® protection. This protection stops dirt from building up naturally. As a result the fabric repels water and keeps its shape extremely well. We use it for special situations or when you want a guarantee of durability and extra resistance. It comes in a range of colours and has a 5-year guarantee. It also weighs 300 g/m².

PVC - for professionals
PVC canopies keep their shape exceptionally well and last a long time. Other canopy types do not match this. That is why PVC is rightly seen as the canopy for professionals. It suits you if your work needs a 100% guarantee against the weather. The PVC we use weighs 400 g/m². You can clean it easily with water and a neutral detergent.

BINDING - the finishing touch
The binding is the last choice for your canopy. You pick it from the same colour range as the canopy fabric, so the edge matches the canopy or sets a contrast. The tape is made of 100% Dralon acrylic yarn (Nastrino Dralon). It is light and strong and holds even on the largest canopies.
