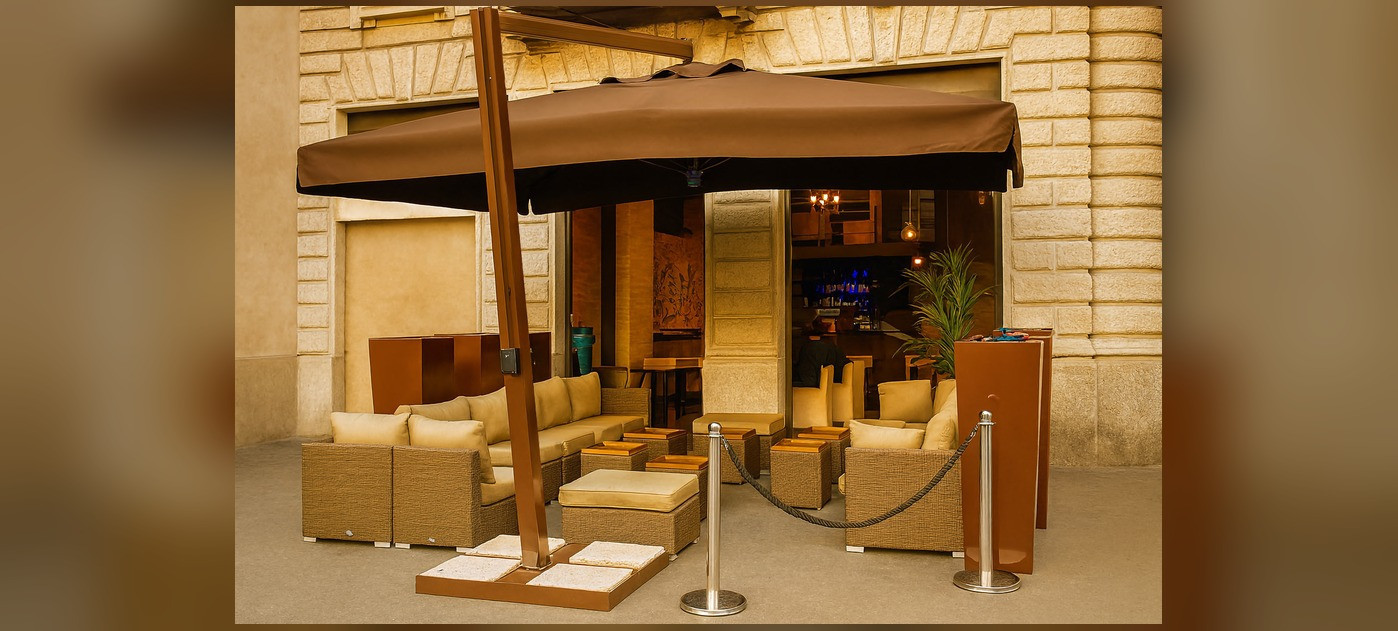

Minio side pole parasol up to 5 x 5 m

Minio is a large side pole parasol. Wooden ribs go with the sturdy steel frame. It covers up to 500 x 500 cm. You open it with a winch.

frame: steel, cataphoresis treated and powder coated, painted wooden ribs
opening: winch
sizes: from 450 x 450 to 500 x 500 cm
weight: 150 to 180 kg, depending on size
colours: anthracite, corten, white, other RAL shades at extra cost
code: MI4545, MI5030, MI5040, MI5050

Description

Technical data

frame: steel, cataphoresis treated and powder coated
ribs: painted wood, 8 ribs, section 20 x 35 mm
pole: 120 x 120 mm
opening: winch
stainless steel screws
wind vent
canopy: solution-dyed acrylic
sizes, height and weight:
- 450 x 450 cm: height 370 cm, weight 150 kg
- 500 x 300 cm: height 380 cm, weight 160 kg
- 500 x 400 cm: height 390 cm, weight 165 kg
- 500 x 500 cm: height 400 cm, weight 180 kg
mounting: without, base frame 120 x 120 cm, concrete ballast 120 kg (50 x 50 cm), ground socket for concrete or metal plate 50 x 50 cm
number of concrete ballasts: 4 pieces for all sizes
frame colours: anthracite, corten, white, other RAL shades to order at extra cost
accessories: protective cover, base cover, LED lighting

ACRYLIC - long lasting
Traditional acrylic is a yarn made from man-made fibres. It is fully synthetic. Its use has grown steadily in recent years because it is versatile and works in every field. The acrylic we use weighs 300 g/m². It is waterproof and treated against mould. Its main strengths are resistance to wear and to weather. This makes it a long-lasting choice if you want a professional, technically sound product.

TEMPOTEST acrylic
As with the other PARA fabrics, the dyed fabric gets a special treatment with Teflon® protection. This protection stops dirt from building up naturally. As a result the fabric repels water and keeps its shape extremely well. We use it for special situations or when you want a guarantee of durability and extra resistance. It comes in a range of colours and has a 5-year guarantee. It also weighs 300 g/m².

PVC - for professionals
PVC canopies keep their shape exceptionally well and last a long time. Other canopy types do not match this. That is why PVC is rightly seen as the canopy for professionals. It suits you if your work needs a 100% guarantee against the weather. The PVC we use weighs 400 g/m². You can clean it easily with water and a neutral detergent.

BINDING - the finishing touch
The binding is the last choice for your canopy. You pick it from the same colour range as the canopy fabric, so the edge matches the canopy or sets a contrast. The tape is made of 100% Dralon acrylic yarn (Nastrino Dralon). It is light and strong and holds even on the largest canopies.
