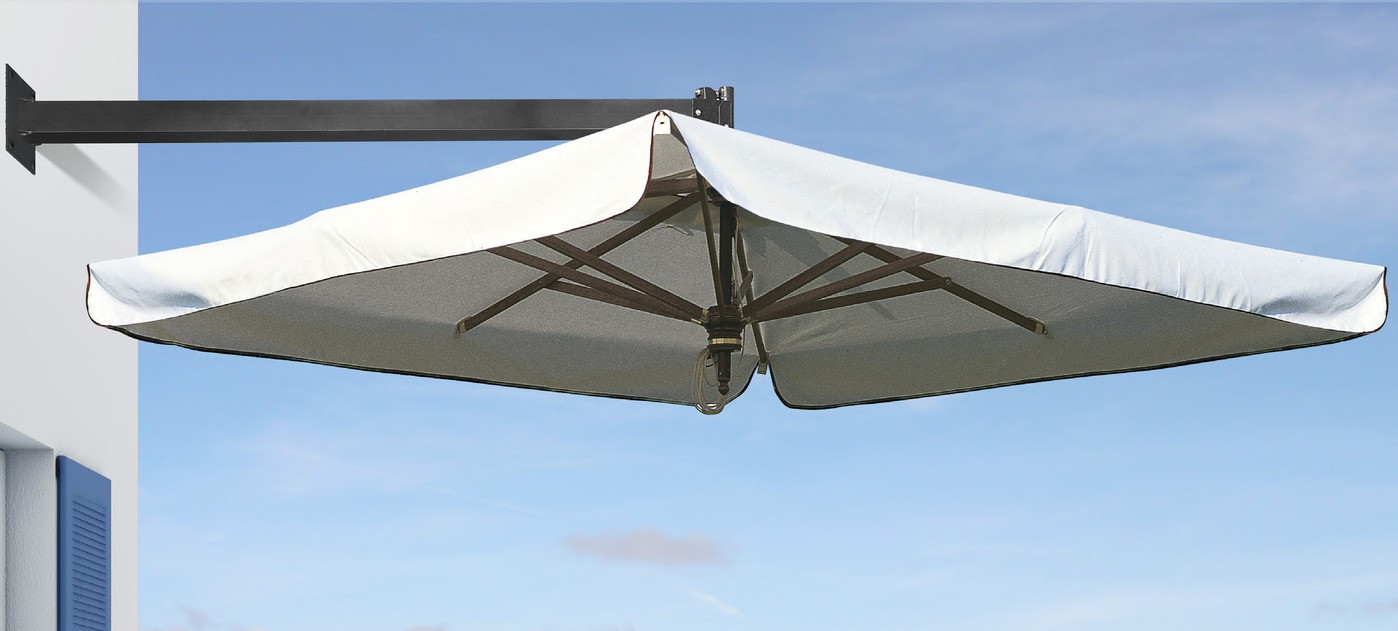

Fly wall-mounted parasol up to R 4 m or 4 x 4 m

Fly is a wall-mounted parasol. It fixes to the wall with a 30 x 30 cm plate, so it needs no space on the ground. It opens with a double pulley. A left or right swivel system is available on request.

frame: steel, cataphoresis treated and powder coated, painted aluminium ribs
opening: double pulley
sizes: R 300, R 350 and R 400 cm, from 200 x 200 to 400 x 400 cm
weight: 40 to 60 kg, depending on size
colours: anthracite, corten, white, wood effect and other RAL shades at extra cost
code: FLY30, FLY35, FLY40, FLY2020, FLY2030, FLY2525, FLY3030, FLY3040, FLY3535, FLY4040

Description

Technical data

frame: steel, cataphoresis treated and powder coated
ribs: painted aluminium, 8 ribs, section 20 x 40 mm
pole: 80 x 80 mm
opening: double pulley
wall plate 30 x 30 cm
stainless steel screws
wind vent
canopy: solution-dyed acrylic
sizes and weight:
- R 300 cm: weight 40 kg
- R 350 cm: weight 45 kg
- R 400 cm: weight 50 kg
- 200 x 200 cm: weight 40 kg
- 200 x 300 cm: weight 42 kg
- 250 x 250 cm: weight 45 kg
- 300 x 300 cm: weight 50 kg
- 300 x 400 cm: weight 55 kg
- 350 x 350 cm: weight 55 kg
- 400 x 400 cm: weight 60 kg
height: not given in the maker's price list
mounting: without, wall plate 30 x 30 cm or swivel system (left or right)
frame colours: anthracite, corten, white, wood effect and other RAL shades to order at extra cost
accessories: protective cover, LED lighting

ACRYLIC - long lasting
Traditional acrylic is a yarn made from man-made fibres. It is fully synthetic. Its use has grown steadily in recent years because it is versatile and works in every field. The acrylic we use weighs 300 g/m². It is waterproof and treated against mould. Its main strengths are resistance to wear and to weather. This makes it a long-lasting choice if you want a professional, technically sound product.

TEMPOTEST acrylic
As with the other PARA fabrics, the dyed fabric gets a special treatment with Teflon® protection. This protection stops dirt from building up naturally. As a result the fabric repels water and keeps its shape extremely well. We use it for special situations or when you want a guarantee of durability and extra resistance. It comes in a range of colours and has a 5-year guarantee. It also weighs 300 g/m².

PVC - for professionals
PVC canopies keep their shape exceptionally well and last a long time. Other canopy types do not match this. That is why PVC is rightly seen as the canopy for professionals. It suits you if your work needs a 100% guarantee against the weather. The PVC we use weighs 400 g/m². You can clean it easily with water and a neutral detergent.
