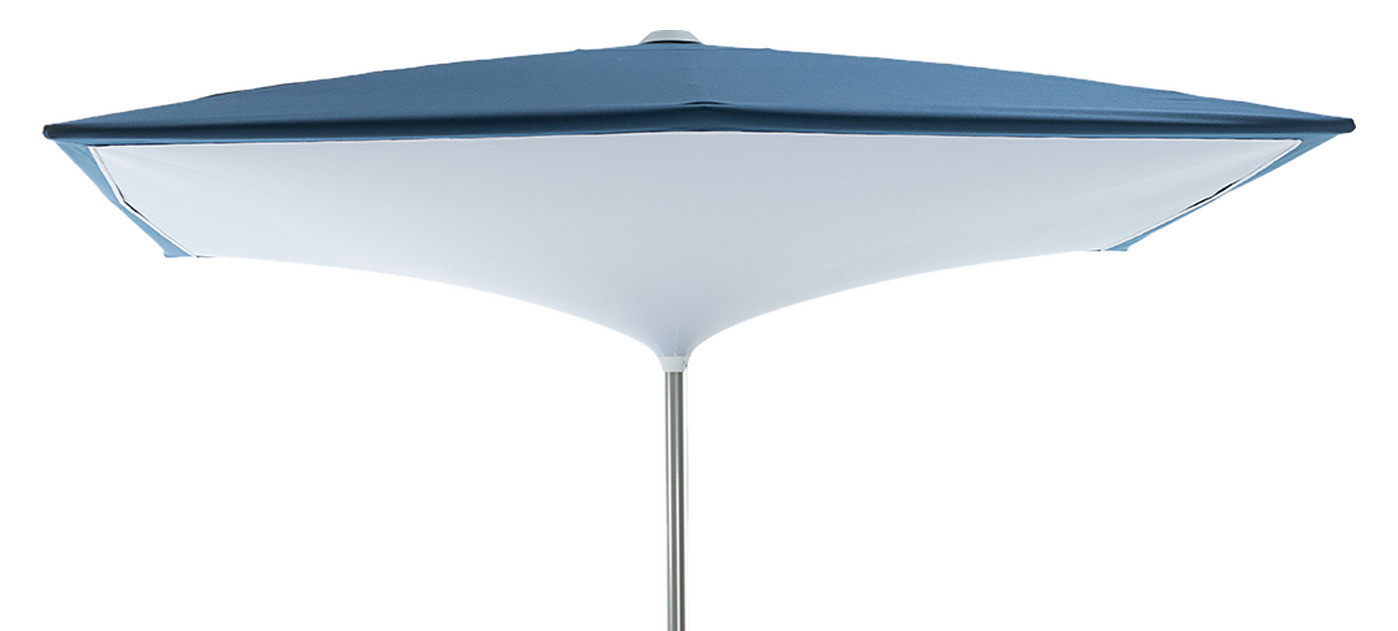

Diamond umbrella max. 3 x 3 m

Diamond is a central-pole umbrella. Its lower canopy in white stretch polyester has facets like a cut stone. They break up daylight and artificial light and draw a play of shadows. The upper canopy is solution dyed acrylic, and you open the umbrella with a pulley.

shape: square

dimensions: 300 x 300 cm

flounce: none

lighting: optional, 8 LED strips with remote control and dimmer

protective cover: optional, 251 EUR excl. VAT

opening mechanism: pulley

Description

Video presentation

Fabric type

Our goal is to produce the best quality products. For this reason we use only prime grade materials and the best fabrics for outdoor use.

Solution dyed acrylic fabric (Sunbrella) - the best coloured fabric for outdoor use (280 g/m²)
The colour is added while the fibre is produced. This gives the fabric high resistance to UV rays, even in aggressive environments with chlorine or salt. The colours do not fade and stay stable for a long time, and the fabric also resists moisture. A special treatment makes it water-repellent and protects it from stains. Regular brushing keeps its original look. UPF 50+ (UV protection factor).

White stretch polyester - lower canopy
The lower canopy is made of neutral white stretch polyester. The white membrane spreads the light of the LED strips.

Frame colours

Diamond comes in three frame colours: anodised aluminium, powder coated in white (BIAN), silver (SILV) or graphite (GRAF). All three cost the same. The colours in the picture may differ from the real ones.

Specification

Frame: anodised aluminium, powder coated in white (BIAN), silver (SILV) or graphite (GRAF).
Pole: central, Ø 5 cm.
Opening: with a pulley.
Shape and size: square, 300 x 300 cm.
Upper canopy: solution dyed acrylic, without flounce and without vent.
Lower canopy: neutral white stretch polyester.
The double canopy cuts the heat that passes through, so the space under the umbrella stays cooler.
The elastic lower canopy stops air from building up under the umbrella. This makes it less sensitive to wind than a classic umbrella of the same size.
Optional lighting: 8 LED strips in neutral white light, transformer (in 220-110 V, out 24 W), power supply, control unit, remote control and dimmer. Use the umbrella with LED only on the FIM bases listed below.
The base is sold separately.
Packaging without LED: 1 package, 15.5 kg, 0.105 m³. With LED: 2 packages, 20.5 kg, 0.12 m³.
Bases: ground insert base Stylo C, surface mount plate 30 x 30 cm with tube, round concrete base 40 kg (Ø 59 cm), square concrete base 60 kg (59 x 59 cm) and steel plate base 50 kg (73 x 73 cm). Fix the surface mount plate with 4 chemical anchors, not supplied.
Protective cover: grey Airfim with zip and telescopic stick, 251 EUR excl. VAT. You fit it on the mounted and closed umbrella.
Design: Riccardo Giovanetti.

Dimensions

The table shows the measures in cm for every base, and you find the letters on the base drawings below it.
