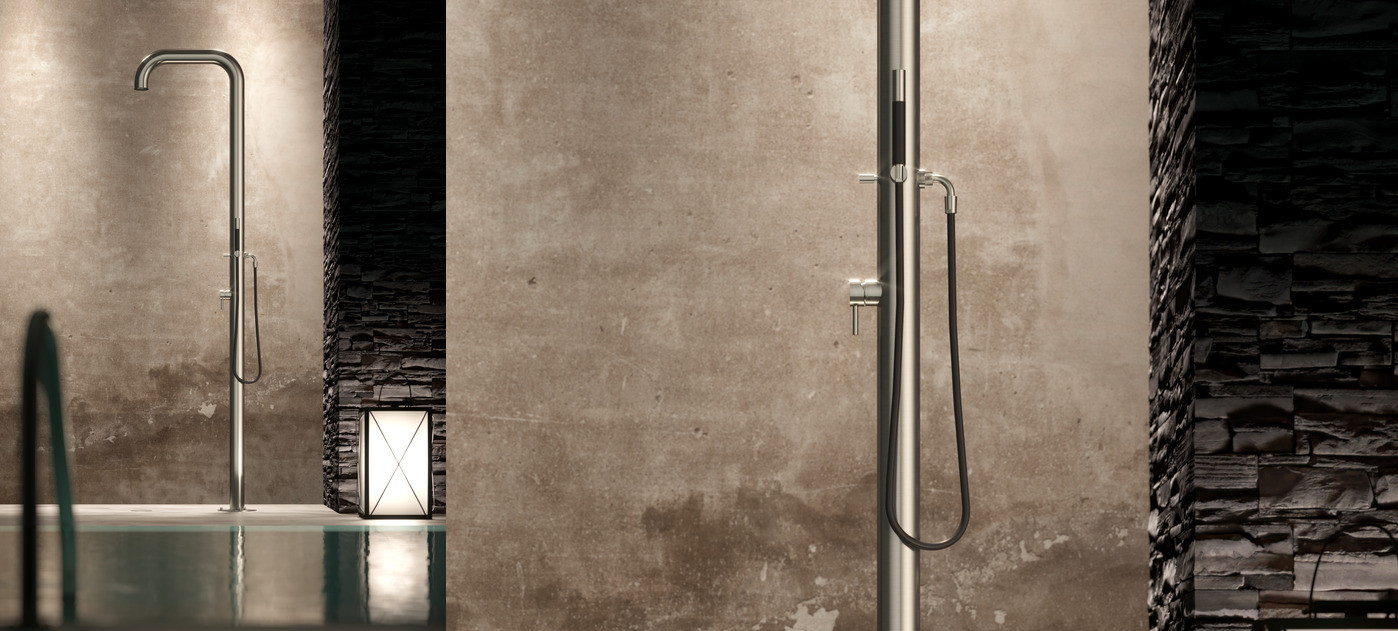

Outdoor shower Boss B76
Freestanding outdoor shower column from the Boss series. You can choose a version with or without handshower. The installation options are listed below.
The manufacturer makes its taps and columns from stainless steel Aisi 316.
versions: RC, 0, E, 2, 2E, M, ME, AST
installation: standard, X, 4S, CW, EW
additional tap: RE10.L, RE10.HB.L, RE10.FS.L, RE12.AST.FS
finishes: MX, BX, MB, RL
code: B76
Installation
Choose the installation under the option Installation on this page.
Standard installation
You fix the column to the floor and the water comes from below through the base.
4S - No-frost
The 4S no-frost version has a heating cable inside the column that protects the pipes and inner parts (mixer, tap and diverter bodies) from freezing. Data: 230 V, on at +3 °C, off at +9 °C, minimum operating temperature -20 °C, protection rating IP X7, heating cable 3.5 m, cold cable 5 m. Parts outside the column (handshowers, hoses, garden taps and showerheads) are not heated and not protected against freezing.
CW - Concealed water supply
First you set the concealed body into the floor, then you mount the column on it. The matching concealed body (Concealed body CW.1 / Concealed body CW.2) is included in the price of option CW.
EW - External water supply
You connect the water pipe to the column from the outside.
X - Direct ground installation
You set the column straight into the ground. It comes with the extension stem XT200, which you fix in the ground. The stem is included in the price of option X.
Additional tap
You can add an external tap to the column. Choose it under the option Additional tap. The tap comes in the same finish as the column and is included in the price of the combination you choose.
RE10.L, RE10.HB.L, RE10.FS.L, RE12.AST.FS
Finishes
You can choose from these finishes: MX (polished Supermirror), BX (brushed), MB (matt black), RL (RAL colour on request).
RL is a varnish in a RAL colour of your choice. Tell us the RAL number when you order.
More products of this kind: Showers.
Versions and technical drawings
B76.RC
Shower column with concealed showerhead for remote control.
B76
Shower column with stop tap and concealed showerhead. Cold water.
B76.E
Shower column with stop tap, concealed showerhead and handshower. Cold water.
B76.2
Shower column with 2 stop taps and concealed showerhead. Hot and cold water.
B76.2E
Shower column with 2 stop taps, concealed showerhead and handshower. Hot and cold water.
B76.M
Shower column with mixer and concealed showerhead. Hot and cold water.
B76.ME
Shower column with mixer, concealed showerhead and handshower. Hot and cold water.
B76.AST
Shower column with time-limited self-closing tap and concealed showerhead. Cold water.
