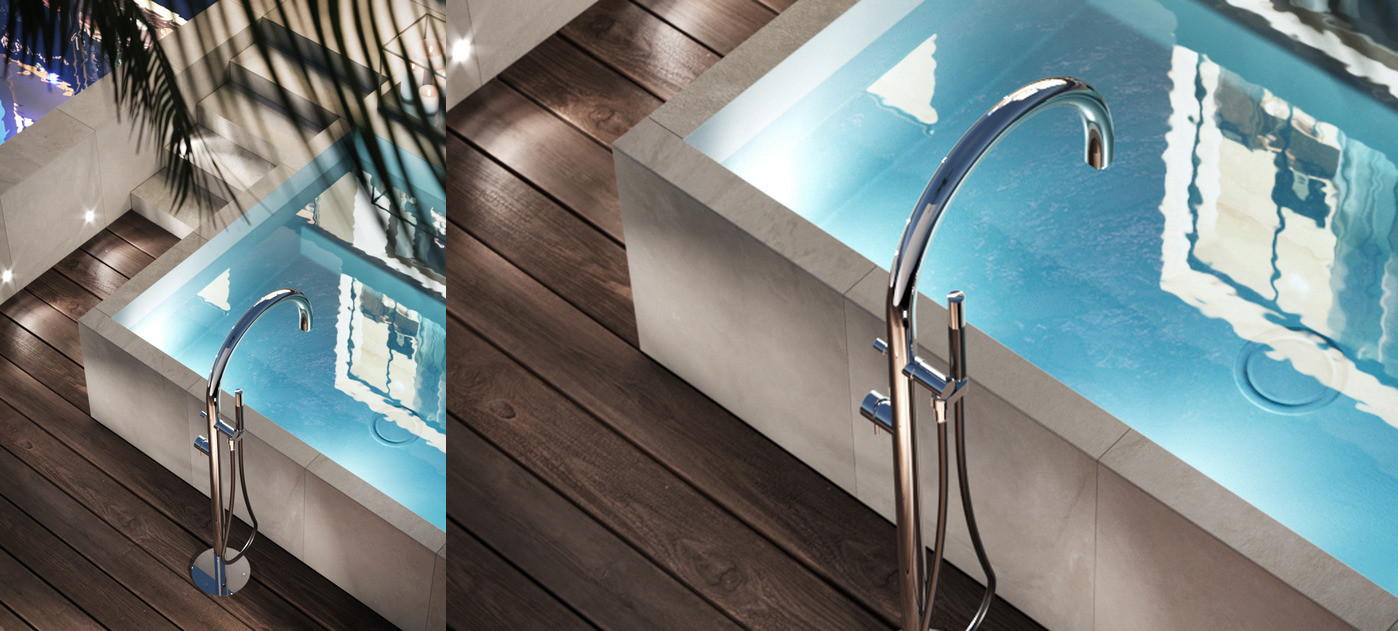

High-Flow bathtub column Origo C60V.HF

Installation

Choose the installation under the option Installation on this page.

Standard installation
You fix the column to the floor and the water comes from below through the base.

4S - No-frost
The 4S no-frost version has a heating cable inside the column that protects the pipes and inner parts (mixer, tap and diverter bodies) from freezing. Data: 230 V, on at +3 °C, off at +9 °C, minimum operating temperature -20 °C, protection rating IP X7, heating cable 3.5 m, cold cable 5 m. Parts outside the column (handshowers, hoses, garden taps and showerheads) are not heated and not protected against freezing.

CW - Concealed water supply
First you set the concealed body into the floor, then you mount the column on it. The matching concealed body (Concealed body CW.2) is included in the price of option CW.

X - Direct ground installation
You set the column straight into the ground. It comes with the extension stem XT200, which you fix in the ground. The stem is included in the price of option X.

Additional tap

You can add an external tap to the column. Choose it under the option Additional tap. The tap comes in the same finish as the column and is included in the price of the combination you choose.

RE10.L, RE10.HB.L, RE10.FS.L, RE12.AST.FS

Finishes

You can choose from these finishes: MX (polished Supermirror), BX (brushed), MB (matt black), RL (RAL colour on request).

RL is a varnish in a RAL colour of your choice. Tell us the RAL number when you order.

More products of this kind: Bathtubs.

Versions and technical drawings

C60V.HF.M

High-Flow bathtub column with mixer. Hot and cold water.

C60V.HF.ME

High-Flow bathtub column with mixer and handshower. Hot and cold water.
