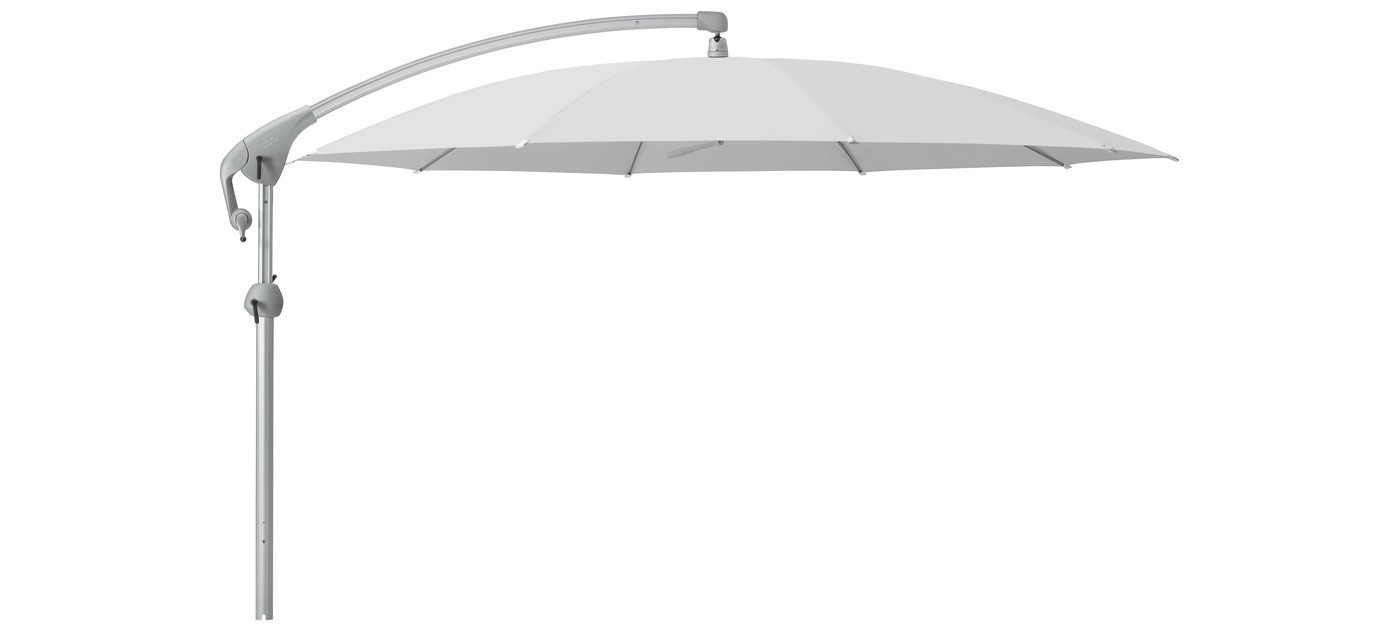

Pendalex P+ umbrella max. R 3,5 m or 2,3 x 2,85 m
dimensions and colors from stock (quickship program):
Ø300 cm, Ø325 cm, Ø350 cm, without flounce, in colors: 501 / 523 / 605 / 684 / 686
230 × 285 cm, without flounce, in colors: 501 / 523 / 605 / 684 / 686
shape:
round or square
dimensions:
R300, R 325 or R 350 cm
230 x 285 cm
Framematerial:
anodized natural or anthracite powder-coated
(RAL 5803 E71387 A10)
flounce:
available
Protective cover:
included in the standard equipment
frame:
Profiled pole (Ø 67 mm), pole and free-arm of aluminium with built-in gas pressure spring (lift 50 cm) for height adjustment, shell parts of fibreglass reinforced TSG synthetic material (thermoplastic foam casting), the guideways are of Teflon-modified high performance plastic, opening crank integrated.
Shade roof:
10 rods of galvanized tempered spring steel, light grey, hard anodized aluminium ball-and-socket joint for canopy inclination in all directions.
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester approx. 220 g/m²),
Class 4 (100 % polyester approx. 250 g/m²),
Class 5 (100 % polyacrylic approx. 300 g/m²).
Video presentation
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)

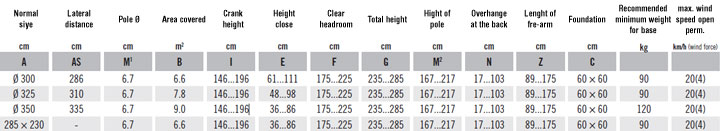

Specification
Looser cover max. 10 cm, concrete thickness min. 30 cm 10 parts
(pay attention to frost depth), water outflow.
The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
The measures of the hiehgt are determined by the PX ground socket. If one of the offered bases is used, these measures change only slightly.
With the base variant these vary slightly. With the variants with the ground sockets M4 and mounting plate M4 / M8, the stated height dimensions vary by 9,5 – 10,5 cm.
The max. wind speed limits as per our separate sheet apply only if the sunshade canopy is in a horizontal position and if there is a fix ground anchorage.
In the presence of several sunshades, the min. distance between one sunshade and another and between sunshades and walls shall be 20 cm.
