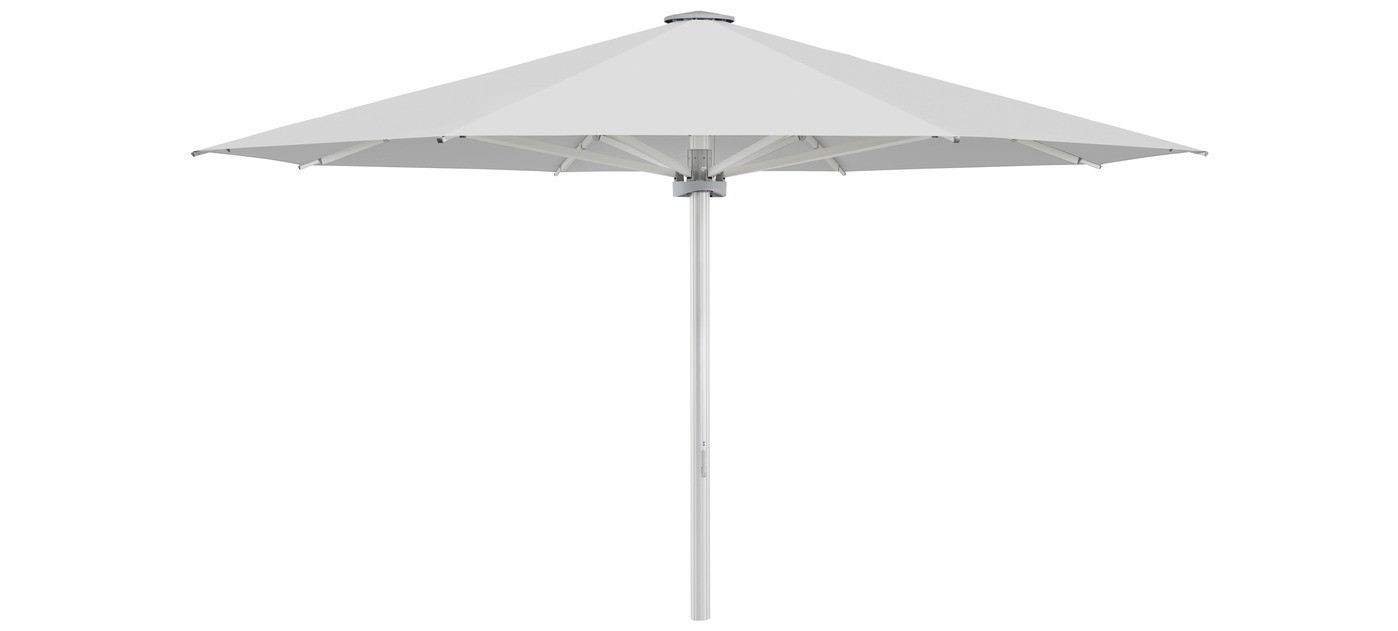

Palazzo Noblesse umbrella max. R 7 m or 6 x 6 m

Palazzo Noblesse umbrella
chevron_left chevron_right


shape:
square, rectangular or round

frame:
8, 10 or 12 ribs
Aluminium
Profiled, non-rotatable mast, ∅ 105 mm, with reinforcing ribs,
wall thickness 4.5 mm
Roof ribs 50 × 23 mm
Screws and rivets made from stainless steel

function:
Opposite opening principle for high closing height
Patented opening with 7–17 turns of the crank

frame colour:
Natural anodised aluminium
Anthracite (RAL 7016) matt powder-coated aluminium
Additional RAL colours: for a surcharge

special sizes:
Available on request.

options:
Motor drive for easy operation
LED lightning: RGB+W infinitely dimmable, directly and
indirectly, colour temperature 3000 K (warm white),
5000-6500 lumens (depending on size)
Heater (infrared, with quick coupling)

flounce:
Available with or without

protective cover:
Can be ordered as an optional extra

shade cover:
Self-tautening thanks to the flexible rod ends, available in material:
Class 5 (100 % polyacrylic, approx. 300 g/m²)



Each of our umbrellas is hand-crafted upon request, allowing for complete customization of every component to perfectly match your patio's aesthetic.

We leverage our expertise, experience, and state-of-the-art 3D projection technology to meet your desires, creating a unique umbrella that fulfils all your requirements.

We also offer the option to design and develop various custom shapes and sizes and numerous other tailored solutions to ensure your vision becomes a reality.

Video presentation




Material class 5 (100 % polyacrylic approx. 300 g/m²)



Specification

Details
Looser cover max. 10 cm, concrete thickness min. 30 cm
(pay attention to frost depth), water outflow,
supply line te electric kit, 7-wire

Specification

9 8 parts
10 10 parts
11 12 parts
12 10 km/h less with flounce

The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Height dimensions are based on ground socket M4. These differ slightly depending on the type of base. Except for base M4, 180 kg plus 15.5 m, 240 kg plus 19 cm.
The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage.
In the presence of several sunshades, the min. distance between one sunshade and another and between sunshades and walls shall be 20 cm.

332 00
€4,166.50 (tax incl.) 4166.5 (tax excl.)
(No tax)

  • R 400 cm - 8 parts
  • R 450 cm - 8 parts
  • R 450 cm - 8 parts - reinforced design
  • R 500 cm - 8 parts
  • R 500 cm - 10 parts
  • R 550 cm - 10 parts
  • R 600 cm - 10 parts
  • R 650 cm - 10 parts
  • R 700 cm - 10 parts
  • 250 x 500 cm - 8 parts
  • 300 x 500 cm - 10 parts
  • 300 x 550 cm - 10 parts
  • 300 x 600 cm - 10 parts
  • 350 x 350 cm
  • 350 x 450 cm - 8 parts
  • 350 x 500 cm - 10 parts
  • 350 x 550 cm - 10 parts
  • 350 x 600 cm - 10 parts
  • 400 x 400 cm - 8 parts
  • 400 x 400 cm - 12 parts
  • 400 x 450 cm - 8 parts
  • 400 x 500 cm - 8 parts
  • 400 x 500 cm - 10 parts
  • 400 x 550 cm - 10 parts
  • 400 x 600 cm - 10 parts
  • 450 x 500 cm - 10 parts
  • 450 x 550 cm - 10 parts
  • 450 x 450 cm - 8 parts
  • 450 x 450 cm - 12 parts
  • 450 x 600 cm - 10 parts
  • 500 x 500 cm - 8 parts
  • 500 x 500 cm - 12 parts
  • 500 x 550 cm - 10 parts
  • 500 x 600 cm - 10 parts
  • 550 x 550 cm - 12 parts
  • 550 x 600 cm - 10 parts
  • 600 x 600 cm - 12 parts
  • Class 5
  • NO
  • NO, Pz200, LED light controll, 1x 230 V, 10 A, with remote controll
  • NO, Pz200, heater controll, 3x 400 V, 16 A, with remote controll
  • NO, Pz200, LED light and heater controll, 3x 400 V, 16 A, with remote controll
  • YES, Pz200, 1x 230 V, 10 A, with remote controll
  • YES, Pz200, LED light controll, 1x 230 V, 10 A, with remote controll
  • YES, Pz200, heater controll, 3x 400 V, 16 A, with remote controll
  • YES, Pz200, LED light and heater controll, 3x 400 V, 16 A, with remote controll
  • YES model M4
  • YES model M8 tip over
