Palazzo Noblesse umbrella max. R 7 m or 6 x 6 m

Palazzo Noblesse umbrella
chevron_left chevron_right


shape:
square, rectangular or round

dimensions:
R450, R500, R600 or R700 cm
350x450, 400x500, 400x600 or 500x600 cm
400x400, 450x450, 500x500, 550x550 or 600x600 cm

frame color:
Anodized natural.
Extra charge for powder-coated frame in other RAL colours: price on request

flounce:
available with or without

frame:
8, 10 or 12 rods made of aluminium, with twist-proof mast (incl. reinforcement ribs), with counter-rotating opening principle for convenient opening with only a few turns of the crank (handle). Profiled GLATZ mast profile, 105 × 45 mm, with reinforcement ribs. Wall thickness: 4.5 mm.

roof struts: 23 × 50 mm

shade cover:
Self-tautening thanks to the flexible rod ends, available in material:
Class 5 (100 % polyacrylic approx. 300 g/m²)



Each of our umbrellas is hand-crafted upon request, allowing for complete customization of every component to perfectly match your patio's aesthetic.

We leverage our expertise, experience, and state-of-the-art 3D projection technology to meet your desires, creating a unique umbrella that fulfils all your requirements.

We also offer the option to design and develop various custom shapes and sizes and numerous other tailored solutions to ensure your vision becomes a reality.

Video presentation




Material class 5 (100 % polyacrylic approx. 300 g/m²)

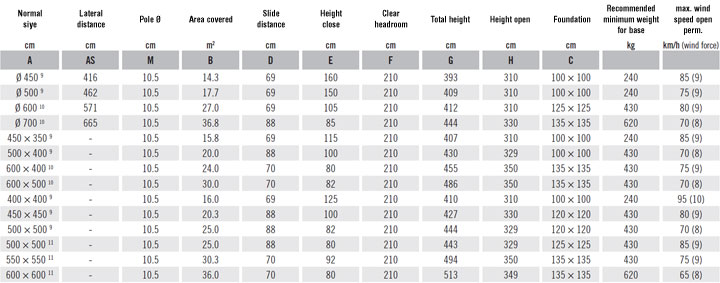

Specification

Details
Looser cover max. 10 cm, concrete thickness min. 30 cm
(pay attention to frost depth), water outflow,
supply line te electric kit, 7-wire

Specification

9 8 parts
10 10 parts
11 12 parts
12 10 km/h less with flounce

The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Height dimensions are based on ground socket M4. These differ slightly depending on the type of base. Except for base M4, 180 kg plus 15.5 m, 240 kg plus 19 cm.
The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage.
In the presence of several sunshades, the min. distance between one sunshade and another and between sunshades and walls shall be 20 cm.

331
€4,166.50 (tax incl.) €4,166.50 (tax excl.)
(No tax)


  • R 450 cm - 8 parts
  • R 500 cm - 8 parts
  • R 600 cm - 10 parts
  • R 700 cm - 10 parts
  • 250 x 500 cm - 8 parts
  • 300 x 600 cm - 10 parts
  • 350 x 450 cm - 8 parts
  • 400 x 400 cm - 8 parts
  • 400 x 500 cm - 8 parts
  • 400 x 600 cm - 10 parts
  • 450 x 550 cm - 10 parts
  • 450 x 450 cm - 8 parts
  • 500 x 500 cm - 8 parts
  • 500 x 500 cm - 12 parts
  • 500 x 600 cm - 10 parts
  • 550 x 550 cm - 12 parts
  • 600 x 600 cm - 12 parts
  • Class 5
  • NO
  • NO, Pz200, LED light controll, 1x 230 V, 10 A, with remote controll
  • NO, Pz200, heater controll, 3x 400 V, 16 A, with remote controll
  • NO, Pz200, LED light and heater controll, 3x 400 V, 16 A, with remote controll
  • YES, Pz200, 1x 230 V, 10 A, with remote controll
  • YES, Pz200, LED light controll, 1x 230 V, 10 A, with remote controll
  • YES, Pz200, heater controll, 3x 400 V, 16 A, with remote controll
  • YES, Pz200, LED light and heater controll, 3x 400 V, 16 A, with remote controll
  • YES model M4
  • YES model M8 tip over
  • Without
  • Yes
  • NO
  • YES
