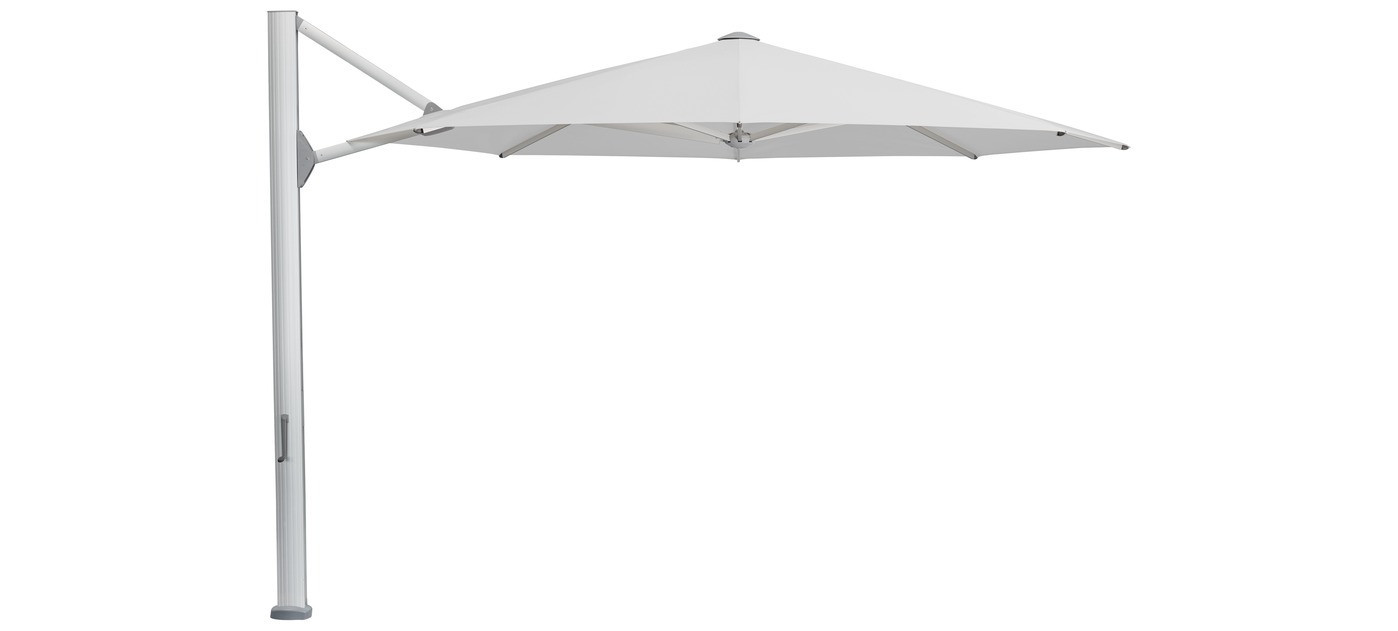

Ambiente Nova umbrella max. R 5 m or 4 x 4 m
shape:
square, rectangular or round
frame:
8 ribs
Aluminium
Profiled mast profile 85 × 145 mm, wall thickness: 2–5 mm
Roof ribs: 33 × 20 mm
function:
Crank drive for synchronous opening
Opposite opening principle for particularly high closing height
Optional 360° rotation adapter, with electrics 310°
frame colour:
Natural anodised aluminium
Additional RAL colours: for a surcharge
(plastic parts only in RAL 7045)
special sizes:
Available on request.
options:
Motor drive for the greatest comfort
LED lighting: continuously dimmable, directly, indirectly and on the pole, colour temperature 2700 K (warm white), 4000–5500 lumens (depending on size)
Turnable base
flounce:
Available with or without
protective cover:
Can be ordered as an optional extra
shade cover:
Self-tautening thanks to the flexible rod ends, available in material:
Class 5 (100 % polyacrylic, approx. 300 g/m²)
Video presentation
Material class 5 (100 % polyacrylic approx. 300 g/m²)

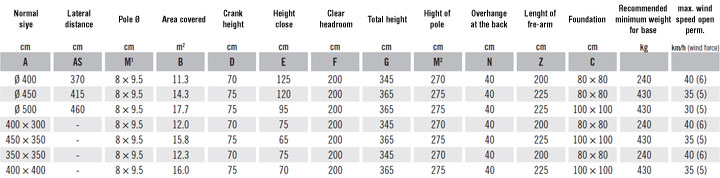

Specification
Looser cover max. 10 cm, concrete thickness min. 30 cm
(pay attention to frost depth), water outflow,
supply line te electric kit, 7-wire
The sunshade canopy may be rotated by 90° at any time. The canopy may also be turned in such a way as to bring the side
concerned into an assymetric position with respect to the pole. Attention: Pls pay attention to the radious (measure Z).
The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Height dimensions are based on ground socket M4. These differ slightly depending on the type of base. Except for base M4, 180 kg plus 15.5 m, 240 kg plus 19 cm.
The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage.
In the presence of several sunshades, the min. distance between one sunshade and another and between sunshades and walls shall be 20 cm.
