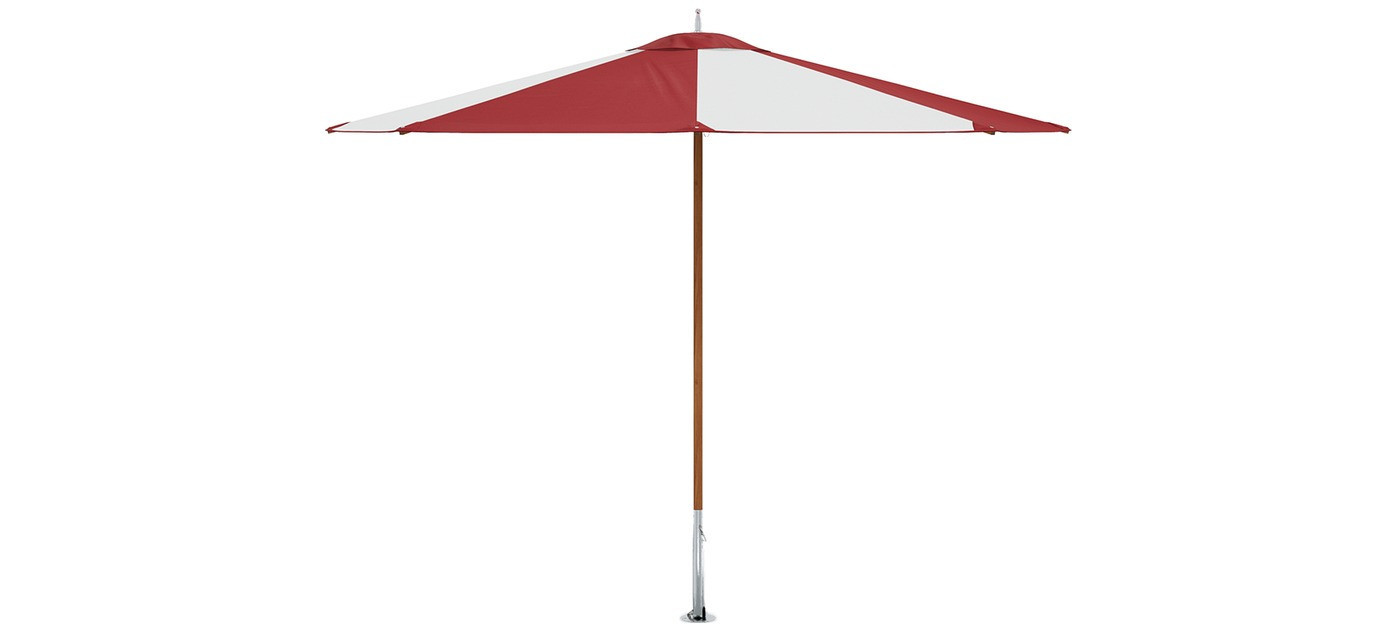

Ocean Master M1 Classic up to R 4 m or 3 x 3 m

Technical data

• frame: aluminium, mast Ø 38.1 or 51 mm (see sizes)
• standard features: single wind vent in the canopy colour (contrasting on request), market cut profile, polished titanium hub, Venice finial.
• sizes:
  • OM5.5SQ: 165 x 165 cm, square, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3, tilt available
  • OM6.5SQ: 200 x 200 cm, square, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3, tilt available
  • OM7.5SQ: 225 x 225 cm, square, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3, EasyDrive crank available, tilt available
  • OM8.5SQ8R: 260 x 260 cm, square, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3, EasyDrive crank available, tilt available
  • OMAS10.0SQ: 300 x 300 cm, square, Auto-Scope version, mast Ø 51 mm, minimum anchor weight 64 kg, cover SS4/CS4, EasyDrive crank available
  • OM6.0OCT: R 180 cm, octagon, mast Ø 38.1 mm, minimum anchor weight 34 kg, cover SS3/CS3, tilt available
  • OM7.5OCT: R 225 cm, octagon, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3, tilt available
  • OM9.0OCT: R 275 cm, octagon, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3, EasyDrive crank available, tilt available
  • OM10.5OCT: R 320 cm, octagon, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3, EasyDrive crank available, tilt available
  • OM11.5OCT: R 360 cm, octagon, mast Ø 38.1 mm, minimum anchor weight 64 kg, cover SS3/CS3, EasyDrive crank available
  • OMAS13.0OCT: R 400 cm, octagon, Auto-Scope version, mast Ø 51 mm, minimum anchor weight 64 kg, cover SS4/CS4, EasyDrive crank available
  • OM7.0HEX: R 215 cm, hexagon, mast Ø 38.1 mm, minimum anchor weight 34 kg, cover SS3/CS3, tilt available
  • OM8.5HEX: R 260 cm, hexagon, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3, EasyDrive crank available, tilt available
  • OM10.0HEX: R 300 cm, hexagon, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3, EasyDrive crank available, tilt available
  • OM11.0HEX: R 340 cm, hexagon, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3, EasyDrive crank available
  • OM5X8RECT: 150 x 245 cm, rectangle, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3, tilt available
  • OM6X9RECT: 180 x 275 cm, rectangle, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3, EasyDrive crank available, tilt available
  • OMAS8X12RECT: 245 x 365 cm, rectangle, Auto-Scope version, mast Ø 51 mm, minimum anchor weight 64 kg, cover SS4/CS4, EasyDrive crank available
• fabric: all Marine MXT series (level C) are included. Premier PXT (level E) adds 20 % of the size price. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours below.
• frame colours: Polished Titanium (standard). Powder coat, 8 colours (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea): +€ 210. Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java): +€ 495.
• lift: the Auto-LOC marine pulley lift is included. The EasyDrive crank lift costs +€ 210. The sizes list shows where it is available. The stainless steel twist collar tilt costs +€ 190, not with the EasyDrive crank or the M1 PLUS mast. The sizes list shows where it is available. The Comfort lift with stainless steel pin costs +€ 150. The Manual Lift System is € 150 less.
• lighting and heating: not available for this model.
• mounting: Auto-Scope sizes need a 51 mm security sleeve (upcharge on the anchors +€ 80).
• ordered separately (accessories):
  • protective covers (the code is listed with each size):
    • Custom protective cover CS3: € 565
    • Custom protective cover CS4: € 565
    • Standard protective cover, dark grey polyester SS3: € 175
    • Standard protective cover, dark grey polyester SS4: € 175
  • anchors and mounts:
    • Aluma-Crete round anchor with wheels (ACFW): from € 560
    • Aluma-Crete round anchor with lift handles (ACF): from € 905
    • G-Plate round anchor (GV): from € 660
    • G-Plate square anchor (GV): from € 755
    • Security sleeve deck mount (DECKMNT): from € 255
    • Flush mount for concrete, soil or sand (SSFMC): € 880
    • Stainless steel flush mount for existing concrete (FLUSHMT): € 585
    • Aluminium sand anchor (SANDANCHOR): € 170
    • Second rope hook (ROPEHOOK): € 95
    • Aluminium extension sleeve with hitch pin (EXTPOLE): € 115
    • Stainless steel extension sleeve with hitch pin (SSEXTPOLE): € 375
    • Stainless steel M1 center post for pools (SSCPMAST): € 750
    • Stainless steel pool flush mount with stainless extension (FLUSHMTSS): € 1,060
    • Stainless steel pool flush mount with containment cup (FLUSHMTSSCUP): € 1,815
    • Grounding lug (GROUNDINGLUG): € 50
  • replacement canopy:
    • Replacement canopy for Ocean Master M1 center post: from € 835

Extras on request
longer mast (10, 20 or 30 cm): € 140
M1 PLUS mast Ø 51 mm: € 105 (included on the Auto-Scope sizes), needs a 51 mm stainless steel security sleeve (upcharge € 80)
contrasting binding on canopy and vent: € 130
15 cm accent border on the canopy: € 280
valance (straight, scalloped, classic or modern Roman): € 280
15 cm cord fringe: € 605
contrasting welt, not with a double-sided canopy: € 345
logo printing on the canopy: project set up from € 595 (1 colour, logo up to 90 cm), printing from € 45 per canopy panel, conversion of the logo to vector artwork € 285
canopy cleaning: € 30/m², net price, shipping not included
your own fabric or a fabric outside the Tuuci range (COM): € 195 per fabric and order, net price
Prices exclude VAT.

Fabrics

Marine MXT 9000-9600, price level C (included)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (included)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (+20 %)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (+20 %)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (+20 %)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Softscape, printed canopy pattern
Tuuci Softscape is a pattern printed on the canopy. You choose from 23 patterns in 6 themes. Tropical: Belize, Tulum, Tahiti, Kauai. Florals: Adelaide, Lucia, Primrose, Kaleidoscope. Maritime: Gulfstream, Reef, Dockside. Whimsical: Wonder, Tamarin, Plume, Fable. Wildlife: Savanna, Prowl, Safari. Abstract: Web, Doodle, Ripple, Trace, Prism. You get it in 1 or 2 colours, with or without a valance. The surcharge depends on the size, from € 340 to € 1,550. In the shop you select it with the Polished Titanium frame and level C fabric and the Auto-LOC lift. We quote other combinations on request.

The Ocean Master market style parasol brings together durable engineering, stylish profiles and functional shade design. All Ocean Master parasols are made to marine specifications, with 100% replaceable parts for easy service and a 15/5 year warranty. Classic beauty. Classic TUUCI.

Mounting type





Built to last

The TUUCI Ocean Master collection has a lift system in polished aluminium. It is durable and elegant and adds a WOW factor to any outdoor space. The automatic rope locking system gives you leverage to open and close large parasols easily, with marine grade durability.

Support where you need it

The Ocean Master collection has struts with reinforced joints. They spread the load well and add strength. The nylon connector is self-lubricating and resists corrosion.

Double stitching

TUUCI canopies have a reinforced pocket construction in ballistic fabric. It is much stronger and helps prevent tears or damage if the parasol falls over.

Standard frame



Powder coated frame



Plantation Aluma-Teak frame



Ocean Master Classic with the Auto-LOC marine pulley lift and tilt option




Ocean Master Classic with the crank lift




Special options

Standard profile



Fishtail profile
only for octagonal canopies



Contrasting binding
on the edge of the canopy and the wind vent



Accent border
15 cm accent border on the top and underside of the canopy



Contrasting pockets
contrasting colour pockets on the top and underside of the canopy



Straight valance
with braid binding



Scalloped valance
with braid binding


Classic Roman valance
with braid binding



Modern Roman valance
with braid binding



Alternating panels



Double-sided canopy



Bullion fringe



Brush fringe

Dimensions
