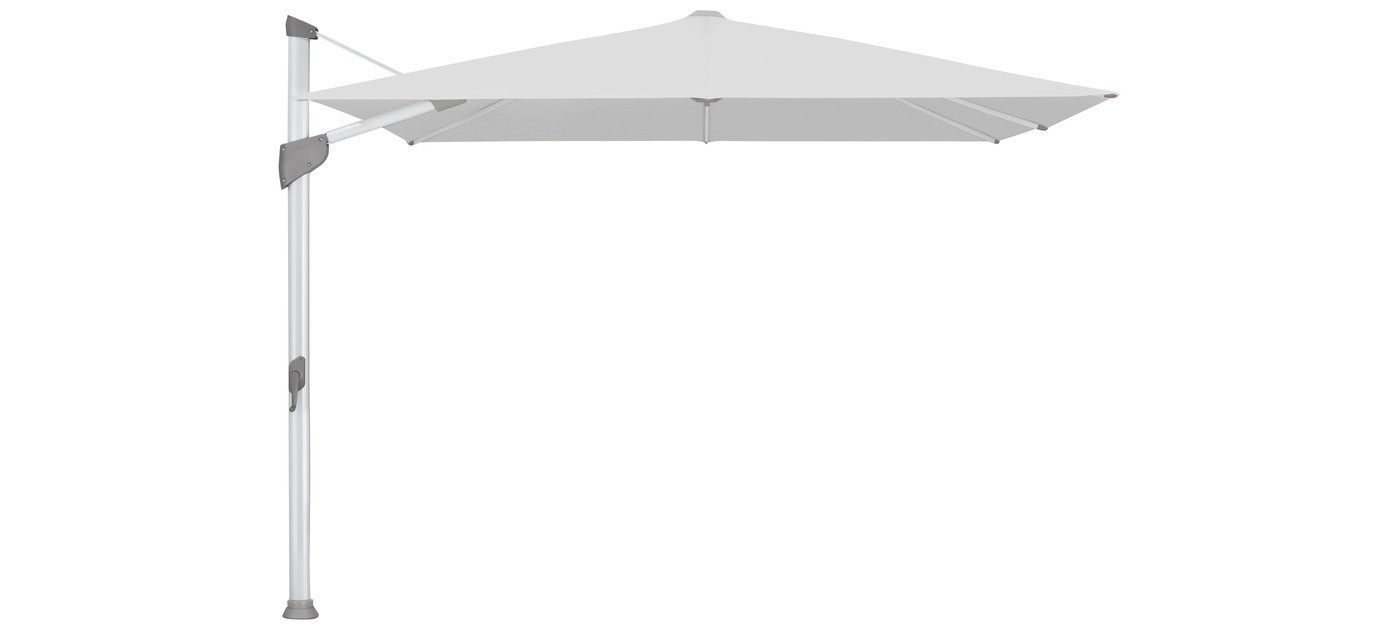

Fortano umbrella max. 3 x 4 m
colors from stock (quickship program), (natural anodised or anthracite powder-coated):
without flounce, in colors: 158 / 420 / 453 / 523
shape:
square
frame:
8 ribs
Aluminium
Mast profile oval 66 × 95 × 3 mm
function:
Crank drive for synchronous opening
Opposite opening principle for particularly high closing height
Optionally with a turnable base for 360° rotation
frame colour:
Natural anodised aluminium
Anthracite powder-coated aluminium
flounce:
Only available without
protective cover:
Included in delivery
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester, approx. 220 g/m²),
Class 4 (100 % polyester, approx. 250 g/m²),
Class 5 (100 % polyacrylic, approx. 300 g/m²).
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)
Specification
Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage.
The listed measures represent extrapolated average values that may differ slightly from the product (±2% ±5 cm).
The height dimensions are based on the ground socket M4. With the base M4, 120 kg, these vary by 11.5 cm, and with the base M4, 180 kg, by 15.5 cm.
The minimum opening/closing height is 5 cm below the closing height.
The max. Wind speed limits as per our separate sheet apply only if the parasol canopy is in a horizontal position and if there is a fixed ground anchorage. A base with the specified minimum weight is not sufficient.
In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.
