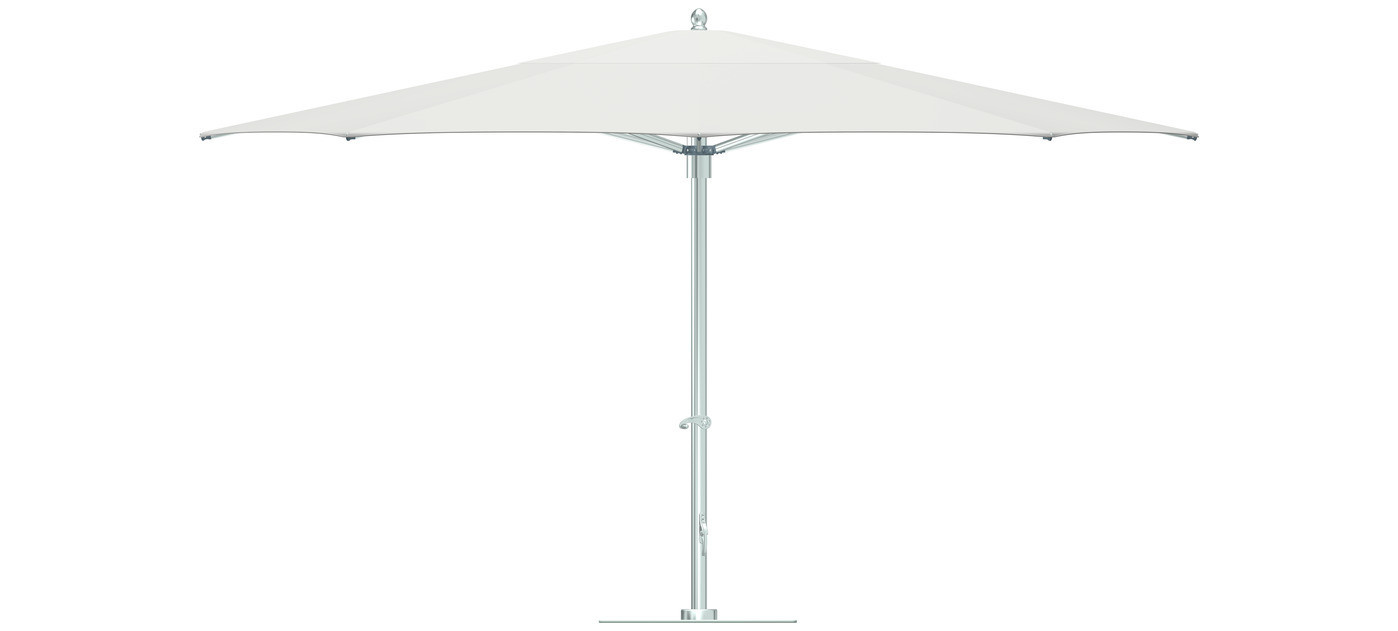

Ocean Master MAX Classic up to R 5.2 m or 4.9 x 4.9 m

Technical data

• frame and mast: aluminium, V-MAX struts, mast Ø 60 mm or 73 mm (see sizes)
• standard features: security stem, polished titanium hub, polished MAX acorn finial, single wind vent in the canopy colour (contrasting on request), market cut profile. The parasol may not close over a table.
• sizes:
  • OMX8SQ: 245 x 245 cm, square, mast Ø 60 mm, minimum anchor weight 90 kg, cover CX2
  • OMX10SQ: 300 x 300 cm, square, mast Ø 60 mm, minimum anchor weight 90 kg, cover CX2
  • OMX12SQ: 365 x 365 cm, square, mast Ø 73 mm, minimum anchor weight 127 kg, cover CX4
  • OMX14SQ: 425 x 425 cm, square, mast Ø 73 mm, minimum anchor weight 180 kg, cover CX5
  • OMX16SQ: 490 x 490 cm, square, mast Ø 73 mm, minimum anchor weight 180 kg, cover CX5
  • OMX9OCT: R 275 cm, octagon, mast Ø 60 mm, minimum anchor weight 90 kg, cover CX2
  • OMX11OCT: R 340 cm, octagon, mast Ø 60 mm, minimum anchor weight 90 kg, cover CX2
  • OMX13OCT: R 400 cm, octagon, mast Ø 73 mm, minimum anchor weight 127 kg, cover CX2
  • OMX15OCT: R 450 cm, octagon, mast Ø 73 mm, minimum anchor weight 180 kg, cover CX2
  • OMX17OCT: R 520 cm, octagon, mast Ø 73 mm, minimum anchor weight 180 kg, cover CX4
  • OMX8X12RECT: 245 x 365 cm, rectangle, mast Ø 60 mm, minimum anchor weight 90 kg, cover CX2
  • OMX10X14RECT: 300 x 425 cm, rectangle, mast Ø 73 mm, minimum anchor weight 180 kg, cover CX4
  • OMX12X16RECT: 365 x 490 cm, rectangle, mast Ø 73 mm, minimum anchor weight 180 kg, cover CX5
• fabric: all Marine MXT series (level C) are included. Premier PXT (level E) adds 20 % of the size price. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours on tuuci.com.
• frame colours: Polished Titanium (standard). Powder coat, 8 colours (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea): +€ 655. Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java): +€ 1,610.
• lift: OMX8SQ, OMX10SQ, OMX9OCT, OMX11OCT and OMX8X12RECT come with the Auto-LOC marine pulley lift as standard. The EasyDrive crank lift with telescoping mast costs +€ 1,330. On OMX8SQ, OMX9OCT and OMX11OCT the EasyDrive mast is not telescopic and the canopy closes above table height. OMX12SQ, OMX14SQ, OMX16SQ, OMX13OCT, OMX15OCT, OMX17OCT, OMX10X14RECT and OMX12X16RECT come with the EasyDrive crank lift with telescoping mast as standard.
• Ambia LED lighting (shines up into the canopy): mains power 220 V +€ 1,105, only with the EasyDrive crank lift, on and off only. Battery power +€ 1,725, dimmable. You choose the light with your order, it cannot be added later. Not compatible with the AGSP and AGSP2 cube anchors. Light canopy colours reflect the light better than dark ones.
• ordered separately (accessories):
  • custom protective cover CX2, CX4 or CX5, € 720 (the code is listed with each size)
  • anchors and mounts:
    • Aluma-Crete round anchor with lift handles (ACF): from € 820
    • G-MAX Plate square anchor (GV): from € 730
    • Full Aluma-Crete cube anchor (AGSP): from € 2,415
    • Full cube cushion for the cube anchor (AGSP-FCC): € 2,350
    • MAX in-ground security mount for new concrete (IGSM): € 670
    • MAX stainless steel surface anchor for existing concrete (MAXPLATE): € 895
    • MAX stainless steel flush mount for dry and new concrete (OMXSSFM): € 1,030
    • MAX stainless steel flush mount for wood decks (OMXSSFM(D)): € 1,240
    • MAX stainless steel extension (BASE-EXT): € 750
    • MAX aluminium extension cover (BASE-EXTCV): € 700
    • Grounding lug (GROUNDINGLUG): € 40
    • MAX stainless steel center post for pools (SSXCPMAST): € 1,605
    • MAX stainless steel pool flush mount with grounding lug (OMXSSFM(GL)): € 1,115
    • Stainless steel dome cover for pools (80055): € 515
  • heating: Ambia LED light with 2 heaters € 5,455 or with 4 heaters € 8,800
  • additional Ambia LED battery € 275, charger for 1 battery € 250, for 4 batteries € 850 (net prices)
  • replacement canopy: from € 1,970

Extras on request
longer mast (10, 20 or 30 cm): € 345, not with heating and lighting
Northstar mast: € 680, not with lighting or heaters
contrasting binding on canopy and vent: € 280
15 cm accent border on the canopy: € 680
valance (straight, scalloped, classic or modern Roman): € 680
15 cm cord fringe: € 910
logo printing on the canopy: project set up from € 535 (1 colour, logo up to 90 cm), printing from € 35 per canopy panel, conversion of the logo to vector artwork € 260
canopy cleaning: € 25/m², net price, shipping not included
your own fabric or a fabric outside the Tuuci range (COM): € 175 per fabric and order, net price
Prices exclude VAT.

Mounting type



Deep strength and quiet beauty



The patented Tuuci® system uses modular, corrosion resistant and self-lubricating parts made of stainless steel, resin and anodised aluminium. This strength and technology keep your parasols standing even in the toughest weather.

Support where you need it



The Ocean Master MAX ribs have self-lubricating resin connectors that resist corrosion. This keeps them flexible and working for many years.

Refined design



The easy handle and smooth mechanism make the Bay Master MAX Classic simple to operate. It closes easily over tables and chairs.

Support where you need it



The Bay Master MAX ribs have salt resistant aluminium struts. They act as reinforcement, spread the tension and add strength.

Canopy construction



Our pocket canopy construction has stainless steel caps for extra reinforcement. It stays durable and resists wear from frequent opening and closing.

Standard frame



Powder coated frame



Plantation Aluma-Teak frame



Sunbrella marine grade C fabrics
Sunbrella marine grade fabric is a solution-dyed acrylic. It resists fading and you can clean it with bleach. Sunbrella high performance fabrics are made from the most UV-stable fibres in the world. Each textile is woven to resist wear in the most extreme climates on earth. If you follow our simple care and cleaning instructions, TUUCI TUFF-SKINS keep their colours for many years and add comfort and atmosphere to any outdoor space. Sunbrella fabrics are recommended by the Skin Cancer Foundation.

Technical specifications:
- 295 g solution-dyed acrylic,
- UPF 50+,
- UVA and UVB blocking up to 100%,
- Cleangard finish against dirt and water,
- 10-year warranty against canopy fading,
- 5-year warranty on the structure when used according to our cleaning and care instructions.

SUNBRELLA QUICK SHIP PROGRAMME, FABRIC LEVEL C
Only for the Xpress programme | delivery 2-4 weeks



SOLUTION-DYED POLYESTER FABRICS
Standard collection | delivery 2-4 weeks



SUNBRELLA STANDARD C FABRICS
delivery 8 weeks



Ocean Master MAX Classic




Special options

Standard profile



Fishtail profile
only for octagonal canopies



Contrasting binding
on the edge of the canopy and the wind vent



Accent border
15 cm accent border on the top and underside of the canopy



Contrasting pockets
contrasting colour pockets on the top and underside of the canopy



Straight valance
with braid binding



Scalloped valance
with braid binding


Classic Roman valance
with braid binding



Modern Roman valance
with braid binding



Alternating panels



Double-sided canopy



Bullion fringe



Brush fringe

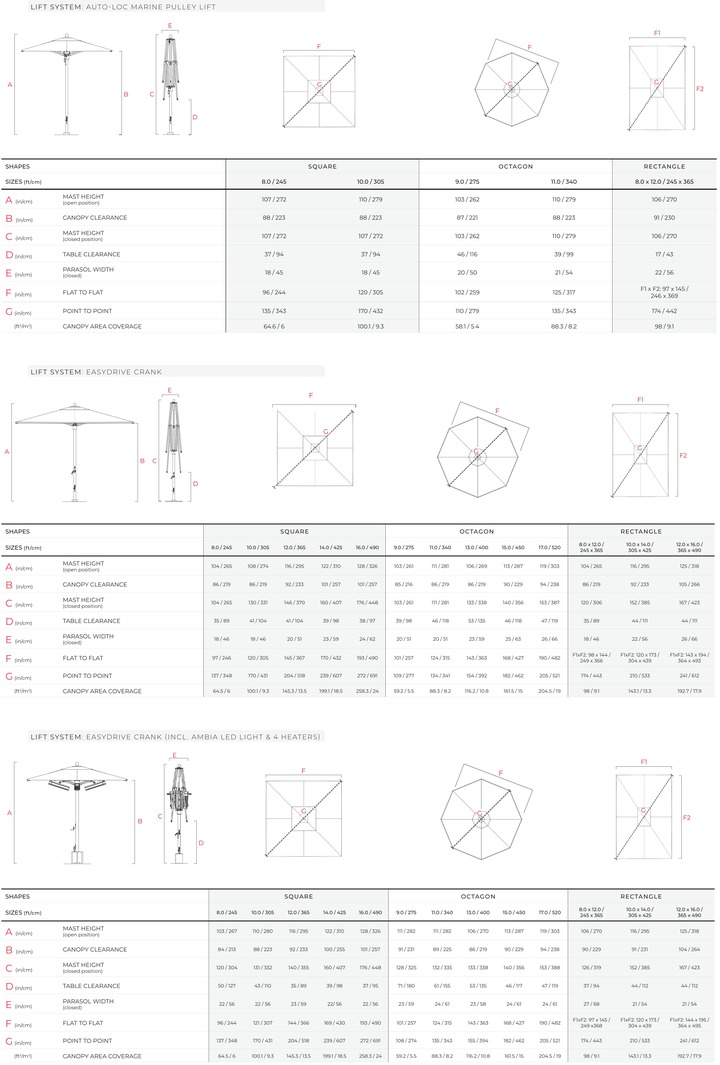

Dimensions
