Twist umbrella max. 3,3 m or 2,4 x 2,4 m
dimensions and colors from stock (quickship program):
Ø270 cm, Ø300 cm, Ø330 cm, without flounce, in colors: 403 / 404 / 420 / 422 / 453 / 461
150 × 210 cm, 200 × 250 cm, without flounce, in colors: 403 / 404 / 420 / 422 / 453 / 461
240 × 240 cm, without flounce, in colors: 403 / 404 / 420 / 422 / 453 / 461
shape:
round, square or rectangle
dimensions:
R 270 cm, R 300 cm or R 330 cm
240 x 240 cm
150 x 210 cm or 200 x 250 cm
flounce:
not available
frame:
6 or 8 parts, round, square, rectangular, aluminium.
Profiled upper pole 40 × 1.4 mm.
Profiled lower pole 45 × 1.5 mm.
Crank drive for opening and closing.
Tilt to 32° using a rotary handle, for 360° rotation using a clamping lever.
All the operating functions are at waist level.
Accessories Lower pole with height adjustment.
Frame colour:
Matt white or anthracite powder-coated aluminium.
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 4 (100 % polyester approx. 250 g/m²),
Class 5 (100 % polyacrylic approx. 300 g/m²).
The flat parasol roof, handy crank, and ergonomic swivel mechanism reflect our ambition to create sustainable inventions. Twist is easy and convenient to open at hip height with just a few rotations of the crank, offers step-less tilt adjustment thanks to the rotary handle, and can be rotated 360° using the practical clamping lever. The epitome of simple yet elegant parasol design. Together with the flat parasol roof, the white and anthracite powder-coated aluminum frame and ribs create a modern, floating look. The high-quality canopy is self-tensioning, thanks to the flexible ends. The mast features an internal steel pipe for which a lower pole is available so that the parasol height can be adjusted to ensure the right amount of shade at all times. Typical Swiss precision.
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)

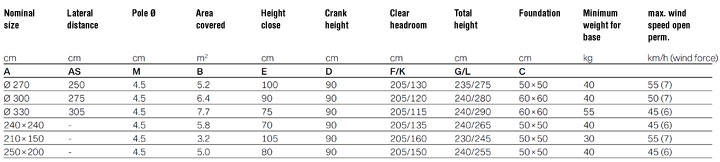

Specification
Looser cover max. 10 cm, concrete thickness min. 30 cm
(pay attention to frost depth), water outflow.
The listed measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Traditionally, the nominal dimension is calculated by doubling the rib length. For this reason, the nominal dimension can exceed the specified tolerance range.

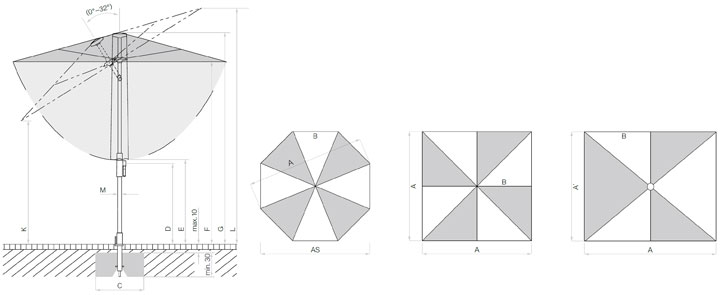

Height dimensions are based on ground socket BT. These vary slightly depending on the type of base. Except for steel base minus 5 cm.
The max. wind speed limits as per our separate sheet apply only if the parasol canopy is in a horizontal position and if there is a fixed ground anchorage.
In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.
