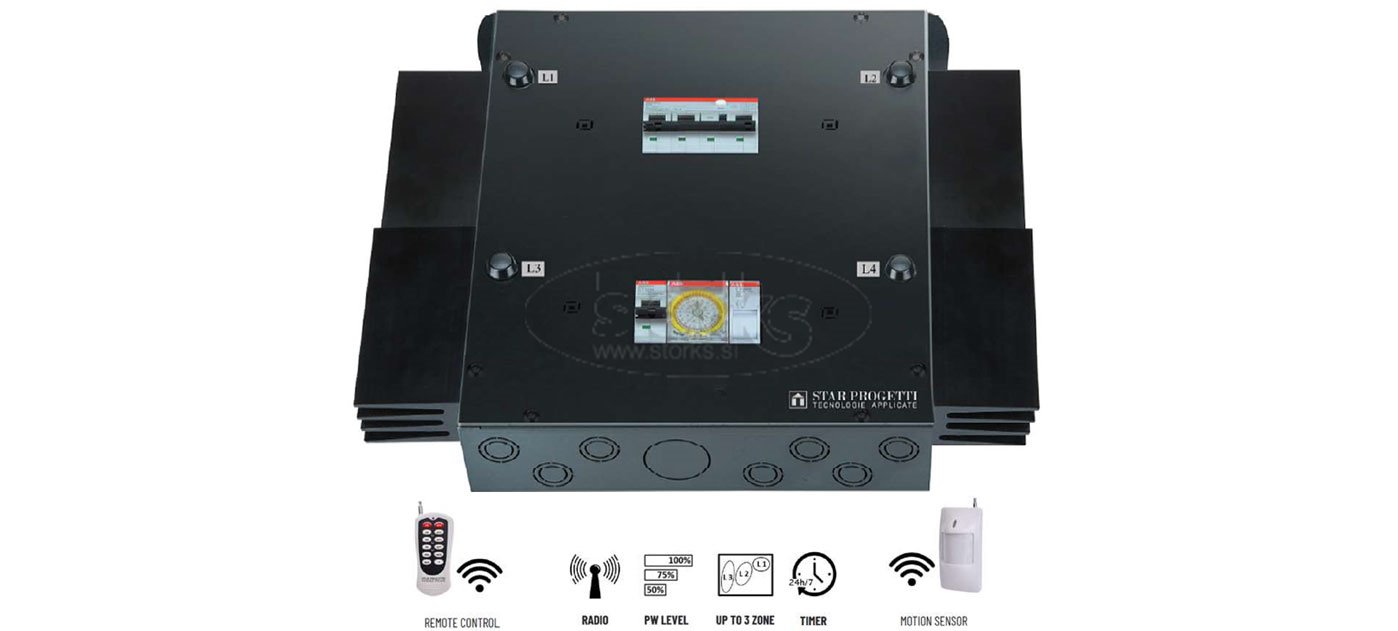

STAR 24 Industrial Radio Power Control System: from 0 to 24000W

STAR 24 Industrial Radio Power Control System: from 0 to 24000W
chevron_left chevron_right


Power Range: 0 to 24,000W (Single-phase or Three-phase)

Heater Adjustment Levels: 100%, 75%, 50%, OFF

Control Up to 4 Zones

Wall Mounting

Timer Function

Supports Up to 5 Programmable Remote Controls per Panel

Remote Control (included): Operating distance: 15-20 meters (unobstructed)

Motion Sensor (code ST14 - not included): Operating distance: 15-20 meters (unobstructed)

Connection to Electrical Board

Protection Rating: IP20 (indoor use only)


45 cm 34 cm 6,2 cm

5,2 kg







The STAR 18 Industrial Radio Power Control System is a high-performance control panel designed to manage infrared heaters with a maximum load of 18,000W. Suitable for both single-phase and three-phase systems, it offers flexible control over heater power levels, making it a perfect solution for industrial heating applications such as HVAC, heating, and other demanding environments.

The STAR 18 features 4 distinct power levels: 100%, 75%, 50%, and OFF, allowing users to precisely adjust heater output based on the specific requirements of each zone. It can manage up to 3 separate heating zones, making it highly versatile in larger spaces.

This compact and efficient device is designed for wall mounting, making installation easy and unobtrusive. It includes a timer function that helps optimize energy usage by allowing scheduled operation times. Additionally, the STAR 18 is compatible with up to 5 programmable remote controls, giving users convenient control from a distance.

The system also supports the use of motion sensors (code ST14, not included) that can automatically turn heaters on or off based on occupancy, further enhancing energy savings. With a protection rating of IP20, the STAR 18 is intended for indoor use only and offers reliable performance in various industrial environments.

Star Progetti’s Helios Radiant IRK infrared heaters are already known for delivering significant energy savings compared to conventional systems. By integrating the STAR 18 power control system, energy usage is further optimized. This smart system ensures heaters operate only when needed, based on the time, temperature, or occupancy of each zone.


Key Technical Features:

  • Power Supply: 220-240V / 380-415V 3P+N+T
  • Frequency: 50/60Hz
  • Maximum Load: 24,000W (resistive loads only)
  • Operating Temperature Range: -20°C to +30°C
  • Dimensions: 45 x 34 x 6,2 cm
  • Weight: 5.2 kg
  • Soft Start Function: Extends heater lifespan by gradually increasing power.
  • Circuit Control: Supports 4 independent zones.
  • Protection Rating: IP20 (indoor use only)

Radio Features:

  • Radio Frequency: 433 MHz
  • Remote Control (code ETL6):
    • Range: 15-20 meters (unobstructed)
    • Battery: LR 23A 12V
  • Heater Adjustment Levels: MIN, MED, MAX
  • Optional PIR Motion Sensor (code ST14):
    • Range: 15-20 meters (unobstructed)
    • Battery: 9V

Optimized Heating Control for Energy Efficiency:

The STAR 18 is a sophisticated device designed to optimize the operation of Helios Radiant IRK infrared heaters. By managing power output and controlling heater activation based on occupancy and timing, it ensures maximum energy savings. The system is equipped with advanced features such as Zero-Crossing and Burst Firing Modes, which minimize electromagnetic interference and reduce flickering.

By incorporating smart control accessories like remote controls and motion sensors, users can achieve significant savings in installation time, space, and energy consumption. The STAR 18 is ideal for large industrial spaces, warehouses, or any facility that benefits from highly controlled and efficient heating systems.
