Smart umbrella max. R 3 m or 2,4 x 2,4 m
dimensions and colors from stock (quickship program):
Ø200 cm, Ø220 cm, Ø250 cm, Ø300 cm, without flounce, in colors: 404 / 417 / 420 / 422 / 453 / 461
150 × 210 cm, 200 × 250 cm, without flounce, in colors: 404 / 417 / 420 / 422 / 453 / 461
200 × 200 cm, 240 × 240 cm, without flounce, in colors: 404 / 417 / 420 / 422 / 453 / 461
shape:
round or square
dimensions:
R 200, R 220, R 250 or R300 cm
150 x 210 or 200 x 250 cm
200 x 200 or 240 x 240 cm
flounce:
not available
frame:
6 or 8 parts, round, square, aluminium Profiled upper pole 40 × 1.4 mm, Profiled lower pole 36 × 1.9 mm, Quick opening and closing with the clever slide mechanism, Tilting thanks to the tilt joint, Stepless height adjustment 50 cm, Tilting in both directions to 32°.
frame color:
Matt white or anthracite powder-coated aluminium
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester approx. 220 g/m²),
Class 4 (100 % polyester approx. 250 g/m²),
Class 5 (100 % polyacrylic approx. 300 g/m²).
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)

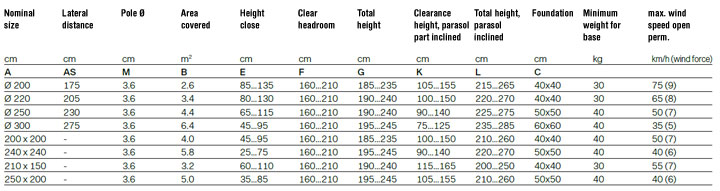

Specification
Looser cover max. 10 cm, concrete thickness min. 30 - 40 cm
(pay attention to frost depth), water outflow.
The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Height dimensions are based on ground socket BT. These differ slightly depending on the type of base. Apart from the steel base minus 5 cm.
The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage.
In the presence of several sunshades, the minimum distance between one sunshade and another and between sunshades and walls shall be 20 cm.
