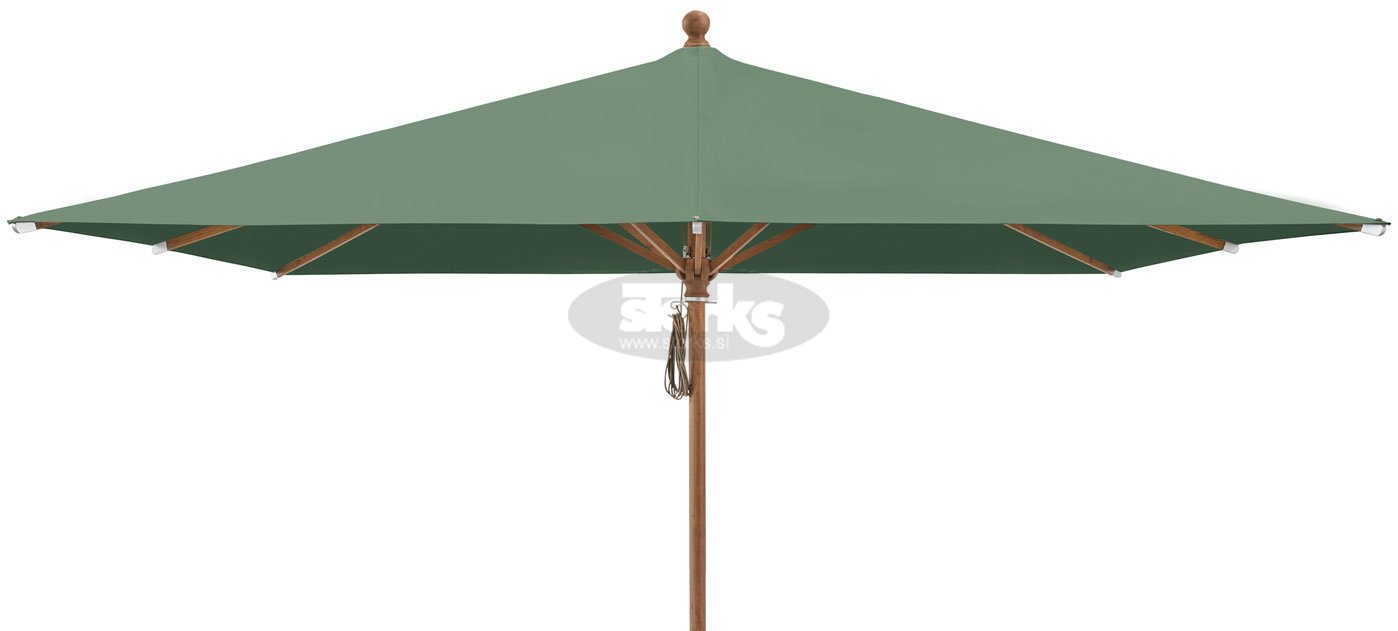

Piazza umbrella max. R 3 m or 2,5 x 2,5 m
colors from stock (quickship program):
without flounce, in colors: 158, 453
shape:
round or square
frame:
8 ribs
Aluminium wood look
Continuous pole Ø 48 mm
function:
Pulley system for opening and closing
Fixed with a metal pin
The runner can be fixed at various heights for optimum fabric tension
frame colour:
Aluminium wood look
protective cover:
Can be ordered as an optional extra
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester, approx. 220 g/m²),
Class 4 (100 % polyester, approx. 250 g/m²),
Class 5 (100 % polyacrylic, approx. 300 g/m²).
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)
Specification
Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage
The listed measures represent extrapolated average values that may differ slightly from the product (±2% ±5 cm).
The height dimensions are based on the ground socket PX (structure 15 cm). In the base variations, these might differ slightly. Apart from the steel base, minus 7,5 cm.
For the variants with a mounting plate and an M4 support tube, the specified heights are reduced by 12–13 cm.
The max. wind speed limits as per our separate list apply only when a fix ground anchorage is present. A base with the specified minimum weight is not sufficient.
In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.
