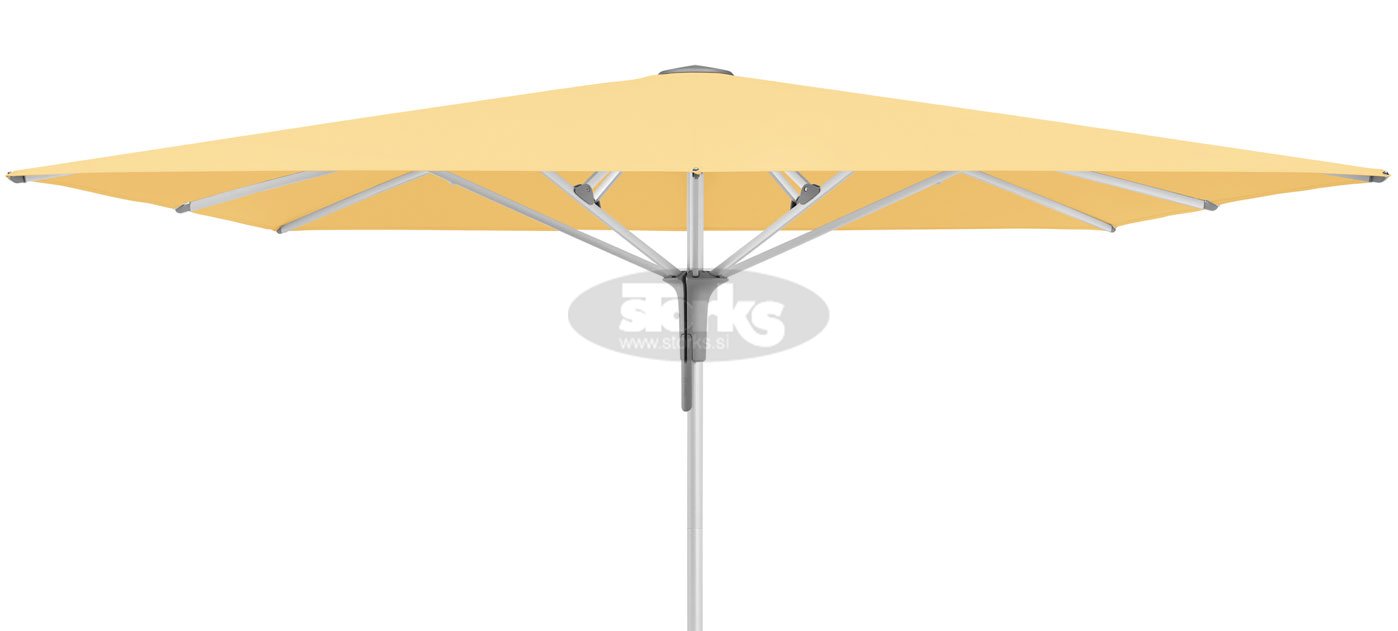

Fortino Pro umbrella max. R 3 m or 2,5 x 2,5 m
colors from stock (quickship program):
without flounce, in colors: 158 / 453 / 523
shape:
round or square
frame:
8 ribs
Aluminium
Two-part profiled pole 38.4 × 2 mm
Runner and crown made from corrosion-resistant, fibreglass-reinforced plastic
Screws and rivets made from stainless steel
function:
Quick opening and closing with the tensioning lever
Opposing opening principle for easy opening and high closing height
frame colour:
Natural anodised aluminium
flounce:
Available on request
protective cover:
Can be ordered as an optional extra
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester, approx. 220 g/m²),
Class 4 (100 % polyester, approx. 250 g/m²),
Class 5 (100 % polyacrylic approx. 300 g/m²).
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)
Specification
Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage.
The listed measures represent extrapolated average values that may differ slightly from the product (±2% ±5 cm).
Height dimensions are based on the ground socket BT. These vary slightly depending on the type of base. Except for the steel base, minus 5 cm.
For the variants with a mounting plate and the M4-to-Z adapter, the specified heights are reduced by 4–5 cm.
The max. Wind speed limits per our separate list apply only when a fixed ground anchorage is present. A base with the specified minimum weight is not sufficient.
In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.
