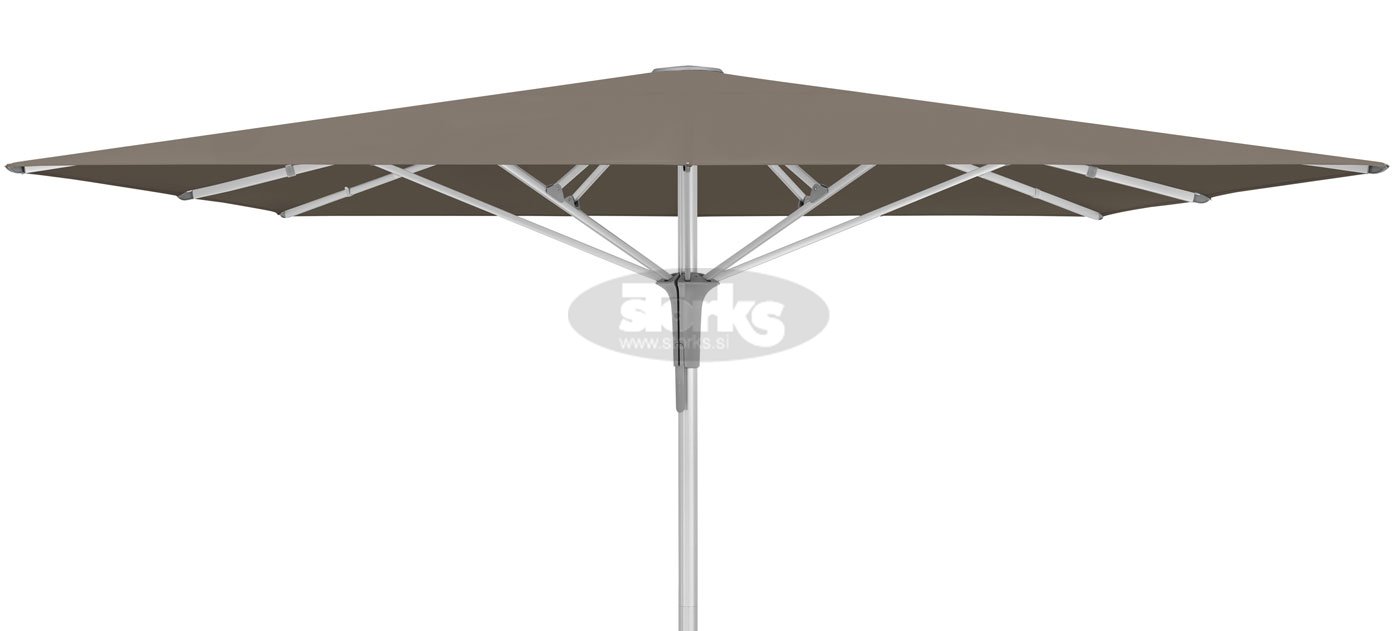

Fortello Pro umbrella max. 4 x 4 m
colors from stock (quickship program):
without flounce, in colors: 158 / 453 / 523
shape:
round or square
frame:
8 ribs
Aluminium
Two-part profiled mast 67 × 3 mm
Runner and crown made from corrosion resistant, fibreglass reinforced plastic
Screws and rivets made from stainless steel
function:
Quick opening and closing with the tensioning lever
Opposing opening principle for easy opening and high closing height
frame colour:
Natural anodised aluminium
flounce:
Available on request
protective cover:
Can be ordered as an optional extra
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester, approx. 220 g/m²),
Class 4 (100 % polyester, approx. 250 g/m²),
Class 5 (100 % polyacrylic, approx. 300 g/m²).
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)
Specification
Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage
The listed measures represent extrapolated average values that may differ slightly from the product (±2% ±5 cm).
The height dimensions are based on the ground socket M4. With the base M4, 120 kg, these vary by 11.5 cm, and with the base M4, 180 kg, by 15.5 cm. With the natural granite base, 120 kg, these vary by 9.5 cm, and with the natural granite base with a set of castors, by 14 cm.
Using a PX ground socket with an adapter on M4 leaves an additional 10.5 cm.
The max. Wind speed limits per our separate list apply only when a fixed ground anchorage is present. A base with the specified minimum weight is not sufficient.
In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.
