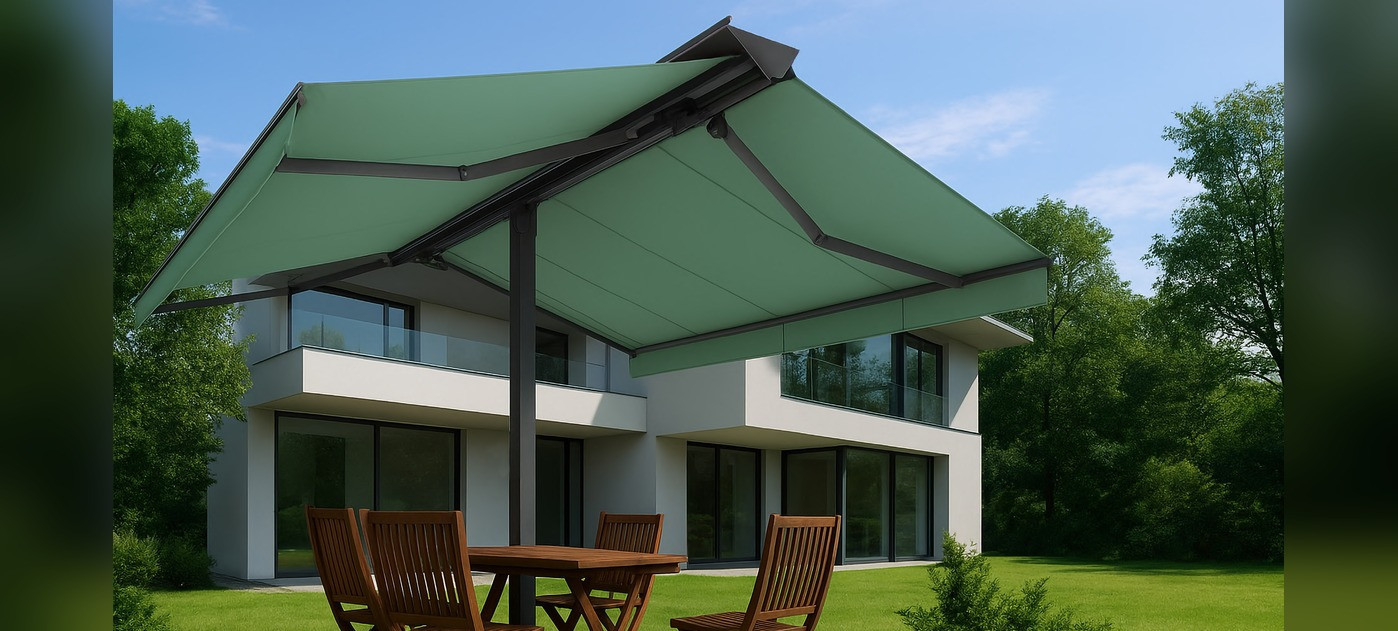

Larus shade structure up to 7 x 7 m

Larus is a self-supporting shade structure with a steel frame. Independent motors drive the awnings, so you open them one after the other. A protective roof sits on top. The model is patented.

frame: steel, cataphoresis treated and powder coated
opening: independent motors
sizes: from 360 x 500 to 700 x 700 cm
weight: not given in the maker's price list
colours: anthracite, corten, ivory, white, other RAL shades at extra cost
code: LA3650, LA3660, LA4840, LA4850, LA4860, LA4870, LA4875, LA6050, LA6060, LA6070, LA6075, LA7050, LA7060, LA7070

Description

Technical data

frame: steel, cataphoresis treated and powder coated
pillar: 150 x 150 mm
drive: independent motors
stainless steel screws
protective roof
canopy: solution-dyed acrylic
sizes:
- 360 x 500 cm
- 360 x 600 cm
- 480 x 400 cm
- 480 x 500 cm
- 480 x 600 cm
- 480 x 700 cm
- 480 x 750 cm
- 600 x 500 cm
- 600 x 600 cm
- 600 x 700 cm
- 600 x 750 cm
- 700 x 500 cm
- 700 x 600 cm
- 700 x 700 cm
height and weight: not given in the maker's price list
mounting: without, base frame 120 x 120 cm, concrete ballast 120 kg (50 x 50 cm), ground socket for concrete or metal plate 80 x 80 cm
number of concrete ballasts: 4 pieces (360 x 500, 360 x 600, 480 x 400, 480 x 500, 480 x 600, 480 x 700, 480 x 750 cm), 8 pieces (600 x 500, 600 x 600, 600 x 700, 600 x 750, 700 x 500, 700 x 600, 700 x 700 cm)
frame colours: anthracite, corten, ivory, white, other RAL shades to order at extra cost
accessories: base cover, LED lighting

ACRYLIC - long lasting
Traditional acrylic is a yarn made from man-made fibres. It is fully synthetic. Its use has grown steadily in recent years because it is versatile and works in every field. The acrylic we use weighs 300 g/m². It is waterproof and treated against mould. Its main strengths are resistance to wear and to weather. This makes it a long-lasting choice if you want a professional, technically sound product.

TEMPOTEST acrylic
As with the other PARA fabrics, the dyed fabric gets a special treatment with Teflon® protection. This protection stops dirt from building up naturally. As a result the fabric repels water and keeps its shape extremely well. We use it for special situations or when you want a guarantee of durability and extra resistance. It comes in a range of colours and has a 5-year guarantee. It also weighs 300 g/m².

PVC - for professionals
PVC canopies keep their shape exceptionally well and last a long time. Other canopy types do not match this. That is why PVC is rightly seen as the canopy for professionals. It suits you if your work needs a 100% guarantee against the weather. The PVC we use weighs 400 g/m². You can clean it easily with water and a neutral detergent.
