Velar 4 modular parasol up to 6 x 6 m

Velar 4 is a modular parasol with an aluminium frame and aluminium ribs. It opens with a gas spring. You get it in 500 x 500 or 600 x 600 cm. A wind vent sits on top.

frame: aluminium, epoxy powder coated, painted aluminium ribs
opening: gas spring
sizes: 500 x 500 and 600 x 600 cm
weight: 200 to 220 kg, depending on size
colours: anthracite, corten, white, wood effect and other RAL shades at extra cost
code: VL45050, VL46060

Description

Technical data

frame: aluminium, epoxy powder coated
ribs: painted aluminium, 32 ribs, section 20 x 40 mm
pillar: 140 x 140 mm
components: steel, cataphoresis treated and powder coated
opening: gas spring
stainless steel screws
wind vent
canopy: solution-dyed acrylic

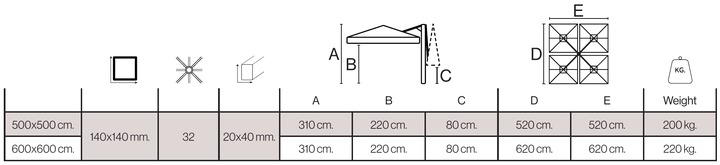

sizes, height and weight:
- 500 x 500 cm: height 310 cm, weight 200 kg
- 600 x 600 cm: height 310 cm, weight 220 kg
mounting: without, base frame 120 x 120 cm, concrete ballast 120 kg (50 x 50 cm), ground socket for concrete or metal plate 50 x 50 cm
number of concrete ballasts: 4 pieces for all sizes
frame colours: anthracite, corten, white, wood effect and other RAL shades to order at extra cost
accessories: protective cover, base cover, LED lighting, gutter

ACRYLIC - long lasting
Traditional acrylic is a yarn made from man-made fibres. It is fully synthetic. Its use has grown steadily in recent years because it is versatile and works in every field. The acrylic we use weighs 300 g/m². It is waterproof and treated against mould. Its main strengths are resistance to wear and to weather. This makes it a long-lasting choice if you want a professional, technically sound product.

TEMPOTEST acrylic
As with the other PARA fabrics, the dyed fabric gets a special treatment with Teflon® protection. This protection stops dirt from building up naturally. As a result the fabric repels water and keeps its shape extremely well. We use it for special situations or when you want a guarantee of durability and extra resistance. It comes in a range of colours and has a 5-year guarantee. It also weighs 300 g/m².

PVC - for professionals
PVC canopies keep their shape exceptionally well and last a long time. Other canopy types do not match this. That is why PVC is rightly seen as the canopy for professionals. It suits you if your work needs a 100% guarantee against the weather. The PVC we use weighs 400 g/m². You can clean it easily with water and a neutral detergent.
