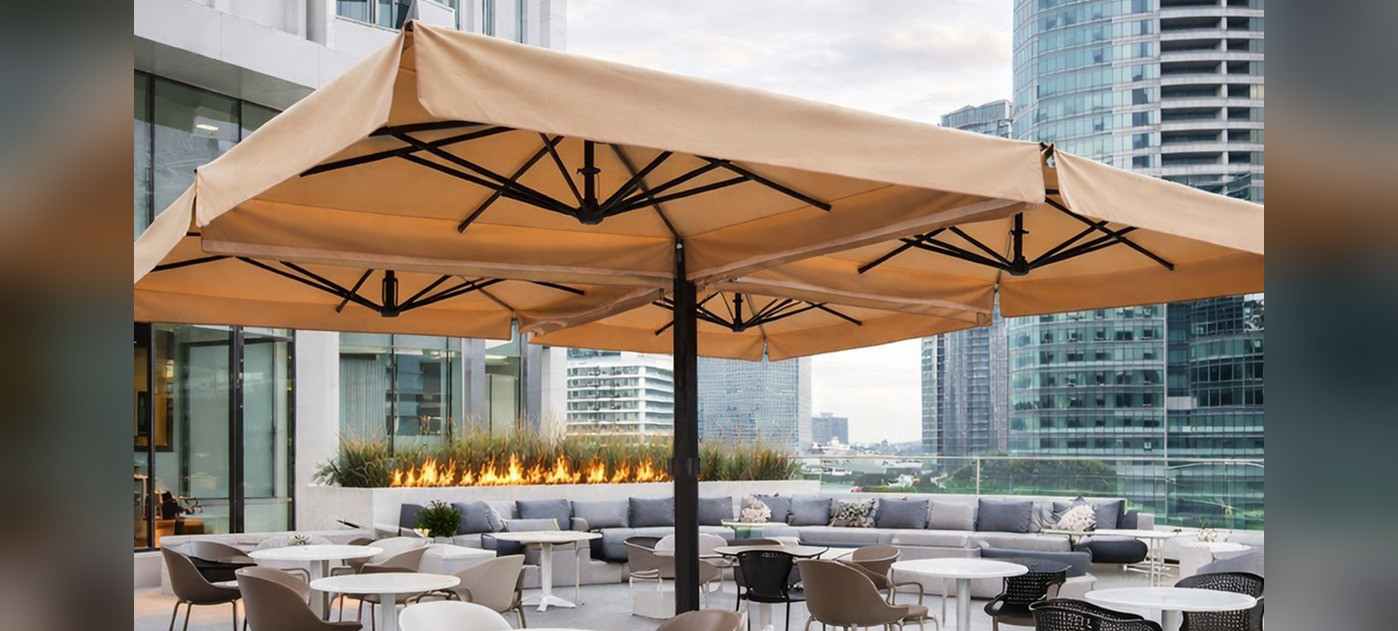

Quartetto modular parasol up to 8 x 8 m
chevron_left
chevron_right
Quartetto is a modular parasol with a steel frame and aluminium ribs. It combines different materials with touches of colour. You open it with independent winches. It covers from 600 x 600 to 800 x 800 cm.
frame: steel, cataphoresis treated and powder coated, painted aluminium ribs
opening: independent winches
sizes: from 600 x 600 to 800 x 800 cm
weight: 300 to 350 kg, depending on size
colours: anthracite, corten, white, wood effect and other RAL shades at extra cost
code: QT6060, QT6080, QT7070, QT8080
Technical data
- frame: steel, cataphoresis treated and powder coated
- ribs: painted aluminium, 32 ribs, section 20 x 40 mm
- pillar: 150 x 150 mm
- components: steel, cataphoresis treated and powder coated
- opening: independent winches
- stainless steel screws
- wind vent
- canopy: solution-dyed acrylic
- sizes, height and weight:
- 600 x 600 cm: height 360 cm, weight 300 kg
- 600 x 800 cm: height 360 cm, weight 330 kg
- 700 x 700 cm: height 360 cm, weight 330 kg
- 800 x 800 cm: height 360 cm, weight 350 kg
- mounting: without, base frame 120 x 120 cm, concrete ballast 120 kg (50 x 50 cm), ground socket for concrete or metal plate 50 x 50 cm
- number of concrete ballasts: 4 pieces (600 x 600, 600 x 800, 700 x 700 cm), 8 pieces (800 x 800 cm)
- frame colours: anthracite, corten, white, wood effect and other RAL shades to order at extra cost
- accessories: protective cover, base cover, LED lighting, gutter
