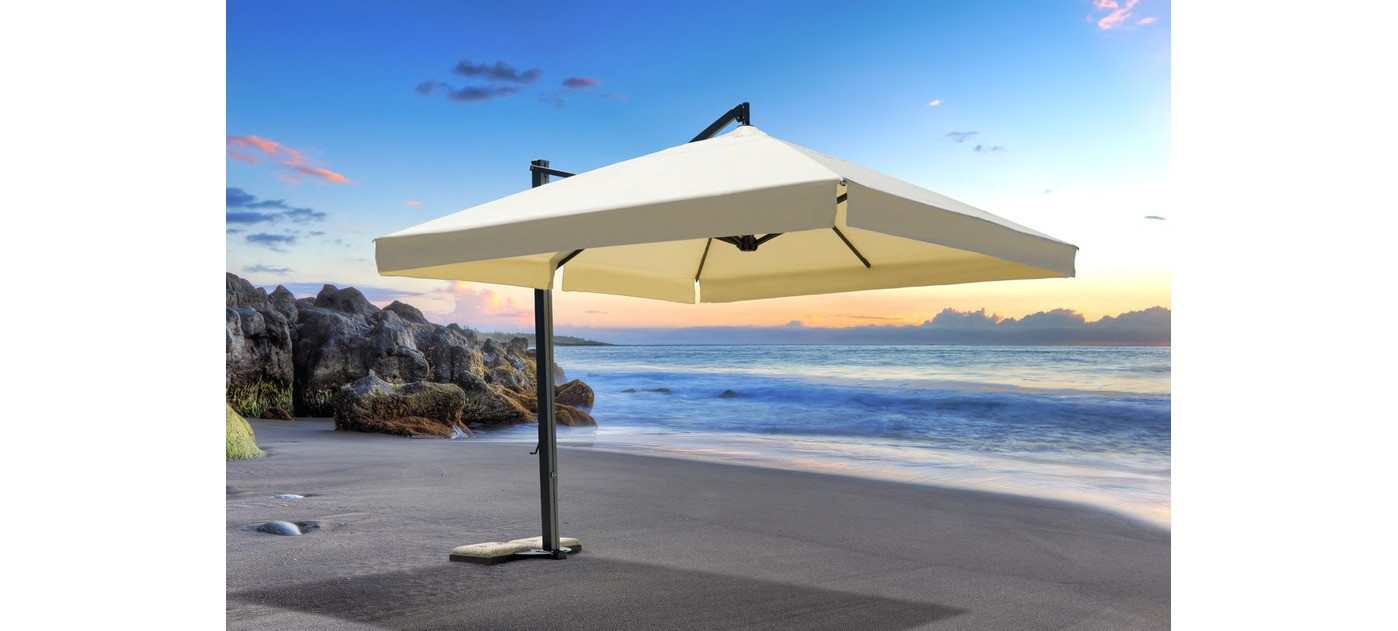

Retrattile side pole parasol up to 4 x 4 m
Retrattile is a side pole parasol with a retractable closing system. Once closed, you store it easily and it takes up little space. The ribs are reinforced and interchangeable. You open it with a winch.
frame: powder coated aluminium, retractable closing, painted aluminium ribs
opening: winch
sizes: from 200 x 200 to 400 x 400 cm
weight: 50 to 70 kg, depending on size
colours: anthracite, corten, white, other RAL shades at extra cost
code: RT2020, RT2030, RT2525, RT3030, RT3040, RT3535, RT4040
Technical data
- frame: powder coated aluminium, retractable closing
- ribs: painted aluminium, 8 ribs, section 20 x 35 mm
- pole: 95 x 95 mm
- components: steel, cataphoresis treated and powder coated
- opening: winch
- stainless steel screws
- wind vent
- canopy: solution-dyed acrylic
- sizes, height and weight:
- 200 x 200 cm: height 310 cm, weight 60 kg
- 200 x 300 cm: height 310 cm, weight 65 kg
- 250 x 250 cm: height 310 cm, weight 70 kg
- 300 x 300 cm: height 310 cm, weight 50 kg
- 300 x 400 cm: height 330 cm, weight 50 kg
- 350 x 350 cm: height 330 cm, weight 55 kg
- 400 x 400 cm: height 360 cm, weight 60 kg
- mounting: without, base frame 110 x 85 cm, concrete ballast 120 kg (50 x 50 cm), ground socket for concrete or metal plate 50 x 50 cm
- number of concrete ballasts: 2 pieces (200 x 200, 200 x 300, 250 x 250, 300 x 300 cm), 4 pieces (300 x 400, 350 x 350, 400 x 400 cm)
- frame colours: anthracite, corten, white, other RAL shades to order at extra cost
- accessories: protective cover, base cover, LED lighting
ACRYLIC - long lasting
Traditional acrylic is a yarn made from man-made fibres. It is fully synthetic. Its use has grown steadily in recent years because it is versatile and works in every field. The acrylic we use weighs 300 g/m². It is waterproof and treated against mould. Its main strengths are resistance to wear and to weather. This makes it a long-lasting choice if you want a professional, technically sound product.
TEMPOTEST acrylic
As with the other PARA fabrics, the dyed fabric gets a special treatment with Teflon® protection. This protection stops dirt from building up naturally. As a result the fabric repels water and keeps its shape extremely well. We use it for special situations or when you want a guarantee of durability and extra resistance. It comes in a range of colours and has a 5-year guarantee. It also weighs 300 g/m².
PVC - for professionals
PVC canopies keep their shape exceptionally well and last a long time. Other canopy types do not match this. That is why PVC is rightly seen as the canopy for professionals. It suits you if your work needs a 100% guarantee against the weather. The PVC we use weighs 400 g/m². You can clean it easily with water and a neutral detergent.
Dimensions
