Ocean Master MAX Zero Horizon Cantilever up to 3 x 3 m

Technical data

• frame: cantilever parasol with a side mast
• standard features: single wind vent in the canopy colour (contrasting on request), market cut profile, security stem, polished titanium hub, polished MAX acorn finial.
• sizes:
  • CLZ10.0SQ: 300 x 300 cm, square, minimum anchor weight 180 kg, cover SC4/CC4/CC4H
• fabric: all Marine MXT series (level C) are included. Premier PXT (level E) costs extra. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours below.
• frame colours: Polished Titanium (standard). Powder coat, 8 colours (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea). Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java).
• lift: the EasyDrive crank lift with telescoping mast is included.
• Ambia LED lighting (shines up into the canopy): mains power 220 V, touch control for on, off and dimming. Battery power. Ambia LED with automation (lift by touch pad). You choose the light with your order, Tuuci fits it at the factory. Not compatible with the AGSP and AGSP2 cube anchors. With automation and a valance, the back valance of the canopy is left out.
• ordered separately (accessories):
  • protective covers (the code is listed with each size):
    • Custom protective cover CC4
    • Custom protective cover CC4H for parasols with heaters
    • Standard protective cover, dark grey polyester SC4
  • anchors and mounts:
    • G-MAX Plate square anchor (GV)
    • Half Aluma-Crete cube anchor (AGSP2)
    • Half cube cushion for the half cube anchor (AGSP2-HCC)
    • MAX aluminium extension cover (BASE-EXTCV)
    • MAX in-ground security mount for new concrete (IGSM)
    • MAX stainless steel surface anchor for existing concrete (MAXPLATE)
    • MAX stainless steel extension (BASE-EXT)
  • lighting and heating:
    • Ambia LED light and 2 heaters for Ocean Master MAX Cantilever
    • Ambia LED light, 2 heaters and automation for Ocean Master MAX Cantilever
    • Additional battery for Ambia LED
    • Single bay charger for Ambia LED batteries
    • Quad bay charger for Ambia LED batteries
  • replacement canopy:
    • Replacement canopy for Ocean Master MAX and M1 cantilevers

Extras on request
contrasting binding on canopy and vent
15 cm accent border on the canopy
15 cm cord fringe
contrasting welt
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
Prices exclude VAT.

Fabrics

Marine MXT 9000-9600, price level C (included)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (included)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (at extra cost)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Softscape, printed canopy pattern
Tuuci Softscape is a pattern printed on the canopy. You choose from 23 patterns in 6 themes. Tropical: Belize, Tulum, Tahiti, Kauai. Florals: Adelaide, Lucia, Primrose, Kaleidoscope. Maritime: Gulfstream, Reef, Dockside. Whimsical: Wonder, Tamarin, Plume, Fable. Wildlife: Savanna, Prowl, Safari. Abstract: Web, Doodle, Ripple, Trace, Prism. You get it in 1 or 2 colours. In the shop you select it with the Polished Titanium frame and level C fabric. We quote other combinations on request.

Standard frame



Powder coated frame



Plantation Aluma-Teak frame

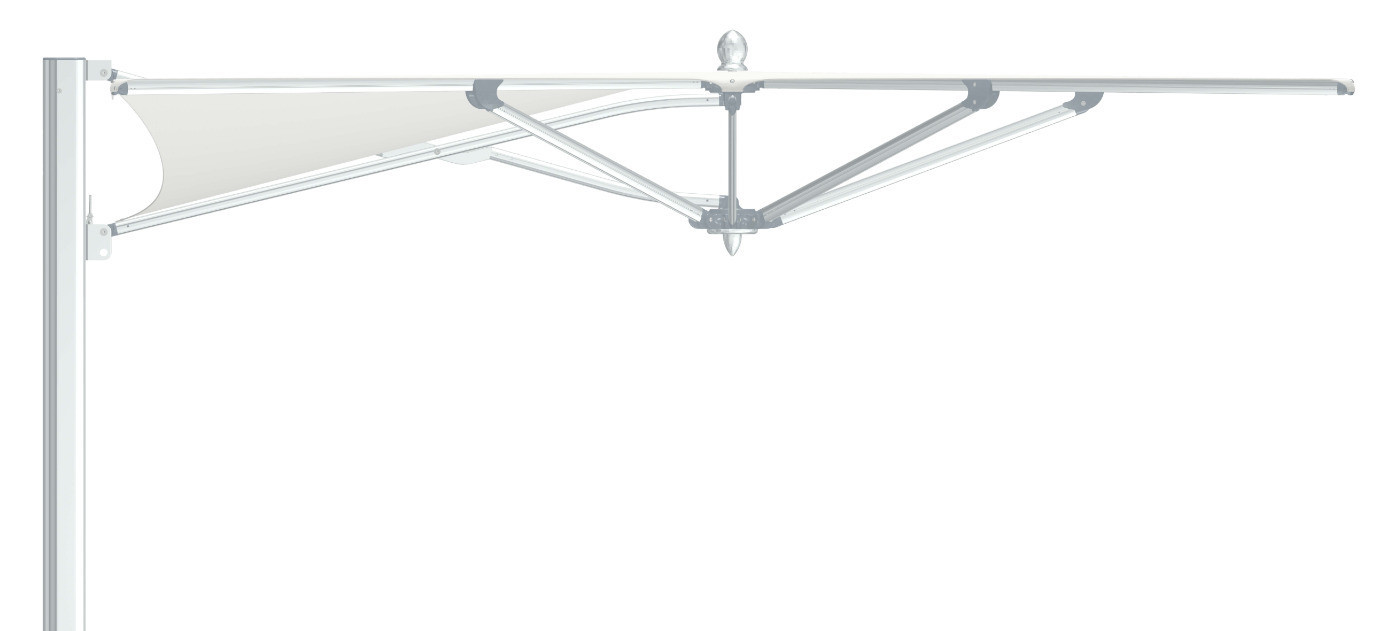

Ocean Master MAX Zero Horizon Cantilever
The Zero Horizon Cantilever has a level canopy with a "zero" vertical profile. Your view stays open as the canopy disappears into the horizon. Tuuci says this design was never seen before on a cantilever mast.

The size is 300 x 300 cm. It opens with the EasyDrive crank lift and telescoping mast. The minimum anchor weight is 180 kg. The Ambia LED light, heaters and automation are also available.

Dimensions
