Ocean Master MEGA MAX Classic up to R 7.3 m or 7.3 x 7.3 m

Technical data

• frame and mast: mast Ø 133 mm
• standard features: single wind vent in the canopy colour (contrasting on request), market cut profile, security stem, polished stainless steel hub, polished MAX acorn finial. The parasol may not close over a table.
• sizes:
  • OMMX16SQ: 490 x 490 cm, square, mast Ø 133 mm, minimum anchor weight 440 kg, cover CMX1
  • OMMX18SQ: 550 x 550 cm, square, mast Ø 133 mm, minimum anchor weight 440 kg, cover CMX1
  • OMMX20SQ: 600 x 600 cm, square, mast Ø 133 mm, minimum anchor weight 440 kg, cover CMX2
  • OMMX24SQ: 730 x 730 cm, square, mast Ø 133 mm, minimum anchor weight 550 kg, cover CMX3
  • OMMX16RND: R 490 cm, round, mast Ø 133 mm, minimum anchor weight 440 kg, cover CMX1
  • OMMX20RND: R 600 cm, round, mast Ø 133 mm, minimum anchor weight 440 kg, cover CMX1
  • OMMX24RND: R 730 cm, round, mast Ø 133 mm, minimum anchor weight 550 kg, cover CMX1
  • OMMX14X20RECT: 425 x 600 cm, rectangle, mast Ø 133 mm, minimum anchor weight 440 kg, cover CMX1
  • OMMX16X24RECT: 490 x 730 cm, rectangle, mast Ø 133 mm, minimum anchor weight 440 kg, cover CMX2
  • OMMX18X24RECT: 550 x 730 cm, rectangle, mast Ø 133 mm, minimum anchor weight 550 kg, cover CMX2
• fabric: the Marine MXT 9700 series (level C) is included. The price list shows no other level for this model. You find the fabric colours below.
• frame colours: 8 powder coats (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Graphite, Espresso, Black Sea) included. Plantation Aluma-Teak, 3 finishes (Weathered, Natural, Java).
• lift: the EasyDrive crank lift is included.
• Ambia LED lighting: two light elements, one shines up into the canopy, the other down. You control them separately and can adjust them. Mains power, battery power. A cord with plug (3 m) comes out at the bottom of the mast. You choose the light with your order, it cannot be added later. Light canopy colours reflect the light better than dark ones.
• ordered separately (accessories):
  • protective covers (the code is listed with each size):
    • Custom protective cover CMX1 for Ocean Master MEGA MAX
    • Custom protective cover CMX2 for Ocean Master MEGA MAX
    • Custom protective cover CMX3 for Ocean Master MEGA MAX
  • anchors and mounts:
    • Full Aluma-Crete cube anchor for MEGA MAX (AGSP-MMX)
    • Full cube cushion for the cube anchor (AGSP-FCC)
    • MEGA MAX stainless steel hinged surface anchor for new pour concrete (MEGAMAXPLATE-NP)
    • MEGA MAX stainless steel hinged surface anchor for an existing concrete pad (MEGAMAXPLATE-EC)
  • lighting and heating:
    • Ambia LED light and 4 heaters for Ocean Master MEGA MAX
    • Ambia LED light and 6 heaters for Ocean Master MEGA MAX
    • Additional battery for Ambia LED
    • Single bay charger for Ambia LED batteries
    • Quad bay charger for Ambia LED batteries
  • replacement canopy:
    • Replacement canopy for Ocean Master MEGA MAX

Extras on request
contrasting binding on canopy and vent
25 cm accent border on the canopy
valance (straight, scalloped, classic or modern Roman)
contrasting welt
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
Prices exclude VAT.

Fabrics

Marine MXT 9700, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Softscape, printed canopy pattern
Tuuci Softscape is a pattern printed on the canopy. You choose from 23 patterns in 6 themes. Tropical: Belize, Tulum, Tahiti, Kauai. Florals: Adelaide, Lucia, Primrose, Kaleidoscope. Maritime: Gulfstream, Reef, Dockside. Whimsical: Wonder, Tamarin, Plume, Fable. Wildlife: Savanna, Prowl, Safari. Abstract: Web, Doodle, Ripple, Trace, Prism. You get it in 1 or 2 colours, with or without a valance. The surcharge depends on the size. In the shop you select it with a powder coat frame and level C fabric. We quote other combinations on request.

Powder coated frame



Plantation Aluma-Teak frame

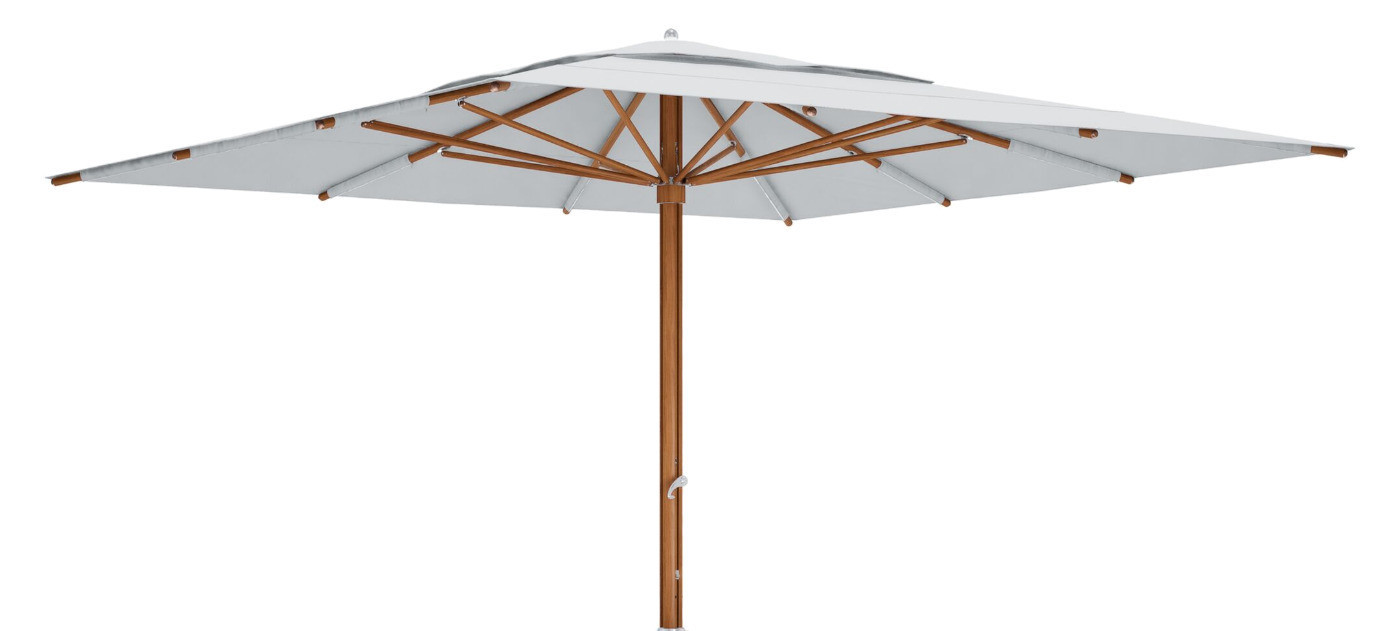

Ocean Master MEGA MAX Classic
The MEGA MAX is a parasol for large outdoor areas. Its elegant profile has a robust construction. It stands sustained winds up to 70 km/h and gusts up to 120 km/h, depending on the anchor or mount.

The strong, serviceable design gives the parasol a long working life. This also lowers its impact on the environment.

You can choose a square from 490 x 490 to 730 x 730 cm, a round canopy from R 490 to R 730 cm or a rectangle from 425 x 600 to 550 x 730 cm. The mast is 133 mm and the parasol opens with the EasyDrive crank lift. The Ambia LED light has two light elements, one shining up into the canopy and one shining down.

Dimensions
