Ocean Master M1 Shade Pod Quad Cantilever up to 3 x 3 m

Name: Ocean Master M1 Shade Pod Quad Cantilever up to 3 x 3 m
Brand: Tuuci
SKU: SPD-QUAD
Price: 18675.00 EUR
Availability: InStock

Tuuci Ocean Master M1 Shade Pod Quad Cantilever

The Ocean Master M1 Shade Pod Quad has four separate canopies on one mast. You open each one on its own and turn it in its own direction. It comes in 245 x 245 and 300 x 300 cm.

frame: one mast, four canopies with their own lift piston
lift: manual piston assisted, non-telescoping
sizes: square 245 x 245 and 300 x 300 cm
frame colours: 8 powder coats, 6 Plantation Aluma-Teak
fabric: Marine MXT level C, Premier PXT level E
code: SPD-QUAD

Description

Technical data

frame: one mast carries 4 separate canopies, each with its own lift piston and locking handle
standard features: security stem, single wind vent in the canopy colour (contrasting on request), market cut profile, Venice finial.
sizes:
- SPD8.0SQ: 245 x 245 cm, square, minimum anchor weight 180 kg, cover CSP1
- SPD10.0SQ: 300 x 300 cm, square, minimum anchor weight 270 kg, cover CSP2
fabric: all Marine MXT series (level C) are included. Premier PXT (level E) costs extra. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours below.
frame colours: 8 powder coats (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea) included. Shade Pods are not available in Polished Titanium. Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java).
lift: the Manual Piston Assisted Lift is included. The mast is not telescoping, so the canopy may not close over a table. You open each canopy on its own and can turn it in another direction.
lighting and heating: not available for this model.
ordered separately (accessories):
- protective covers (the code is listed with each size):
  - Custom protective cover CSP1 for Shade Pod (price per cover)
  - Custom protective cover CSP2 for Shade Pod (price per cover)
- anchors and mounts:
  - G-MAX Plate square anchor (GV)
  - Full Aluma-Crete cube anchor (AGSP)
  - Half Aluma-Crete cube anchor (AGSP2)
  - Full cube cushion for the cube anchor (AGSP-FCC)
  - Half cube cushion for the half cube anchor (AGSP2-HCC)
  - MAX aluminium extension cover (BASE-EXTCV)
  - MAX in-ground security mount for new concrete (IGSM)
  - MAX stainless steel surface anchor for existing concrete (MAXPLATE)
  - MAX stainless steel extension (BASE-EXT)

Extras on request
contrasting binding on canopy and vent
15 cm accent border on the canopy
valance (straight, scalloped, classic or modern Roman)
15 cm cord fringe
contrasting welt
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
On the Shade Pod the prices are for the whole parasol.
Prices exclude VAT.

Fabrics

Marine MXT 9000-9600, price level C (included)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (included)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (at extra cost)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Powder coated frame

Plantation Aluma-Teak frame

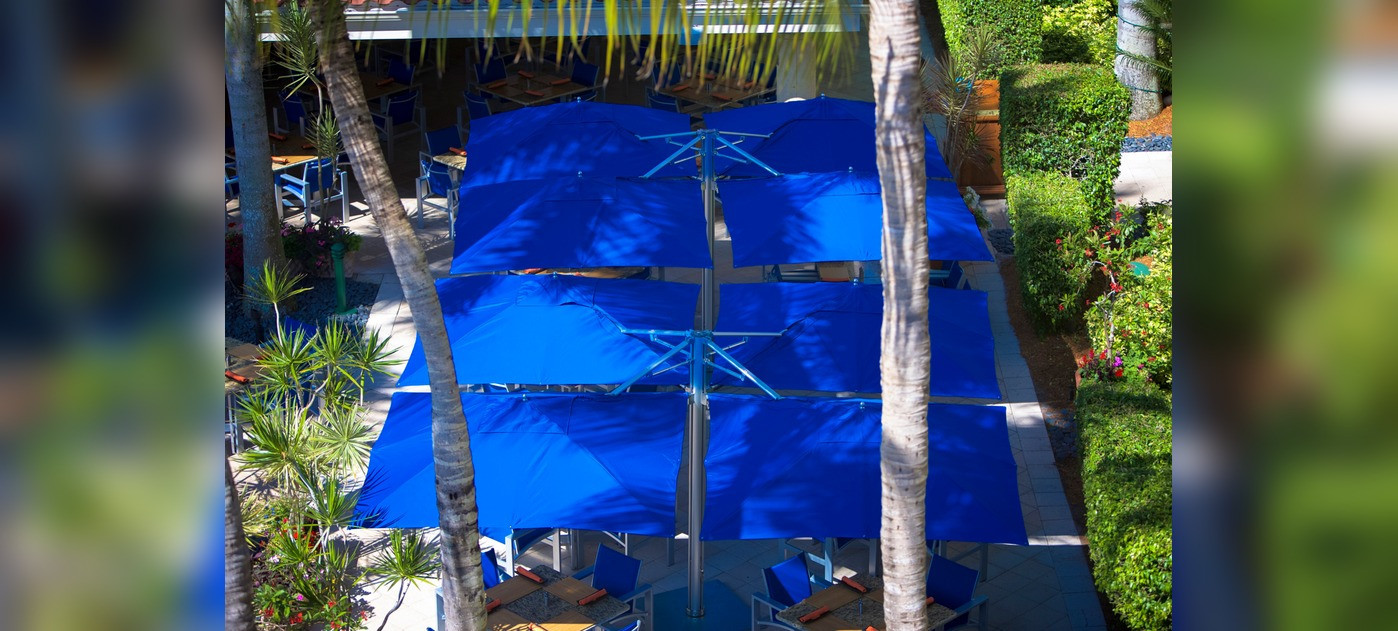

Ocean Master M1 Shade Pod Quad
The Shade Pod carries several separate canopies on a single mast, so you get a large shaded area. Each canopy has its own auto lift piston and locking handle. You open the canopies one by one and turn them in different directions.

The Ocean Master M1 Shade Pod Quad has four canopies. It comes in 245 x 245 and 300 x 300 cm. The modular design, marine grade components and replaceable parts give the parasol a long life. Covers are priced per piece.
