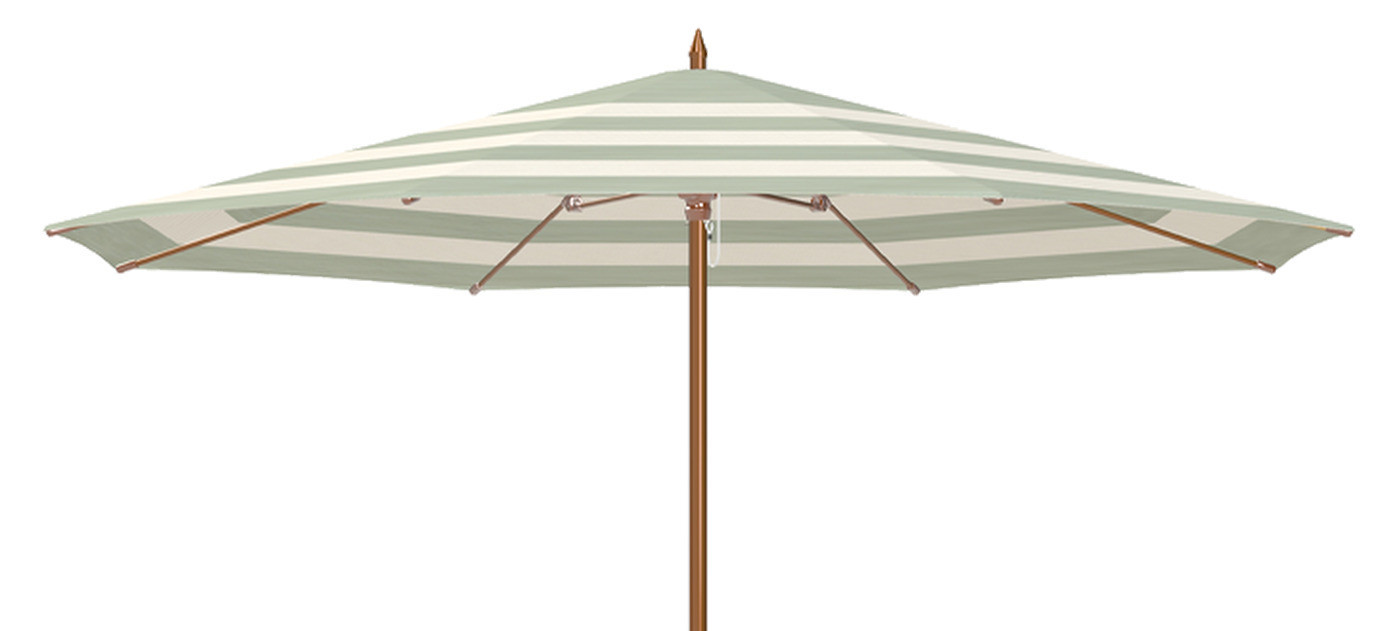

Bay Master M1 Fiber-FLEX up to R 3.2 m or 2.25 x 2.25 m

Name: Bay Master M1 Fiber-FLEX up to R 3.2 m or 2.25 x 2.25 m
Brand: Tuuci
SKU: BM-FF
Price: 1085.00 EUR
Availability: InStock

Bay Master M1 Fiber-FLEX has flexible fiberglass struts that absorb wind gusts and salty air. You choose from 9 sizes, from 165 x 165 cm to R 320 cm.

frame: Fiber-FLEX fiberglass struts, mast Ø 38.1 mm
lift: Auto-LOC marine pulley lift
sizes: square 165 x 165 to 225 x 225 cm, octagon R 225 to R 320 cm, hexagon R 215 to R 300 cm
frame colours: Satin Anodized, Vineyard Dura-Teak
fabric: Comfort CXT or Light LXT level B, Marine MXT level C, Premier PXT level E
code: BM-FF

Description

Technical data

frame: flexible Fiber-FLEX fiberglass struts, patented independent bracket system, Bay Master M1 mast Ø 38.1 mm
standard features: single wind vent in the canopy colour (contrasting on request), market cut profile, brushed stainless steel acorn finial.
sizes:
- BM5.5SQ: 165 x 165 cm, square, minimum anchor weight 41 kg, cover SS3
- BM6.5SQ: 200 x 200 cm, square, minimum anchor weight 41 kg, cover SS3
- BM7.5SQ: 225 x 225 cm, square, minimum anchor weight 41 kg, cover SS3
- BM7.5OCT: R 225 cm, octagon, minimum anchor weight 41 kg, cover SS3
- BM9.0OCT: R 275 cm, octagon, minimum anchor weight 41 kg, cover SS3
- BM10.5OCT: R 320 cm, octagon, minimum anchor weight 48 kg, cover SS3
- BM7.0HEX: R 215 cm, hexagon, minimum anchor weight 34 kg, cover SS3
- BM8.5HEX: R 260 cm, hexagon, minimum anchor weight 48 kg, cover SS3
- BM10.0HEX: R 300 cm, hexagon, minimum anchor weight 48 kg, cover SS3
fabric: the Comfort CXT and Light LXT series (level B) are included. All Marine MXT series (level C) add 10 % of the size price, Premier PXT (level E) adds 30 %. The surcharge does not apply to frame colour or lift. You find the fabric colours on tuuci.com.
frame colours: Satin Anodized (standard). Vineyard Dura-Teak Natural: +€ 445. The price list shows no powder coat for this model.
lift: the Auto-LOC marine pulley lift is included. The Manual Lift System is € 150 less.
lighting and heating: not available for this model.
ordered separately (accessories):
- protective covers (the code is listed with each size):
  - Standard protective cover, dark grey polyester SS3: € 155
- anchors and mounts:
  - Aluma-Crete round anchor with wheels (ACFW): from € 505
  - Aluma-Crete round anchor with lift handles (ACF): from € 820
  - G-Plate round anchor (GV): from € 595
  - G-Plate square anchor (GV): from € 685
  - Security sleeve deck mount (DECKMNT): from € 230
  - Flush mount for concrete, soil or sand (SSFMC): € 800
  - Stainless steel flush mount for existing concrete (FLUSHMT): € 530
  - Aluminium sand anchor (SANDANCHOR): € 150
  - Second rope hook (ROPEHOOK): € 85
  - Aluminium extension sleeve with hitch pin (EXTPOLE): € 100
  - Stainless steel extension sleeve with hitch pin (SSEXTPOLE): € 340

Extras on request
Venice finial instead of the acorn: € 30
Natural Aluma-Teak mast: € 155
valance (straight, scalloped, classic or modern Roman): € 250
logo printing on the canopy: project set up from € 535 (1 colour, logo up to 90 cm), printing from € 35 per canopy panel, conversion of the logo to vector artwork € 260
canopy cleaning: € 25/m², net price, shipping not included
your own fabric or a fabric outside the Tuuci range (COM): € 175 per fabric and order, net price
Prices exclude VAT.

Bay Master M1 Fiber-FLEX
It takes its inspiration from the wind-swept coast and desert of the Baja Peninsula. Flexible Fiber-FLEX fiberglass struts absorb strong wind, sudden gusts and salty air. With the patented independent bracket system and the Bay Master M1 mast, the parasol lasts for years.

It comes in 9 sizes: squares from 165 to 225 cm, octagons from R 225 to R 320 cm and hexagons from R 215 to R 300 cm. It opens with the Auto-LOC marine pulley lift.
