Bay Master M1 Classic Cantilever up to R 3.35 m or 3 x 3 m

Technical data

• frame: cantilever parasol with a side mast, stainless steel hardware, aluminium struts
• standard features: security stem, single wind vent in the canopy colour (contrasting on request), market cut profile, brushed acorn finial.
• sizes:
  • BMCL8.0SQ: 245 x 245 cm, square, minimum anchor weight 90 kg, cover SC2/CC2
  • BMCL10.0SQ: 300 x 300 cm, square, minimum anchor weight 127 kg, cover SC2/CC2
  • BMCL9.0OCT: R 275 cm, octagon, minimum anchor weight 90 kg, cover SC2/CC2
  • BMCL11.0OCT: R 335 cm, octagon, minimum anchor weight 127 kg, cover SC2/CC2
• fabric: the Comfort CXT and Light LXT series (level B) are included. All Marine MXT series (level C) cost extra, Premier PXT (level E) costs extra. The surcharge does not apply to frame colour or lift. You find the fabric colours below.
• frame colours: Satin Anodized (standard). Powder coat Glacier White or Black Sea. Vineyard Dura-Teak Natural (fiberglass).
• lift: the Manual Piston Assisted Lift is included. The mast is not telescoping, so the canopy may not close over a table.
• lighting and heating: not available for this model.
• ordered separately (accessories):
  • protective covers (the code is listed with each size):
    • Custom protective cover CC2
    • Standard protective cover, dark grey polyester SC2
  • anchors and mounts:
    • G-MAX Plate square anchor (GV)
    • Half Aluma-Crete cube anchor (AGSP2)
    • Half cube cushion for the half cube anchor (AGSP2-HCC)
    • MAX in-ground security mount for new concrete (IGSM)
    • MAX stainless steel surface anchor for existing concrete (MAXPLATE)

Extras on request
valance (straight, scalloped, classic or modern Roman)
contrasting binding on canopy and vent
contrasting welt
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
Prices exclude VAT.

Fabrics

Comfort CXT 8000, price level B (included)
An acrylic fabric for smaller parasols where the strength of a marine grade fabric is not needed. It also suits furniture, so you can match canopies and upholstery. The hand-tufted blossoms of the Ocean Master MAX Bolero are made from it too.

Light LXT 7700, price level B (included)
A lighter alternative to the MXT 9700 series. The woven polyester fabric suits smaller parasols.

Marine MXT 9000-9600, price level C (at extra cost)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (at extra cost)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (at extra cost)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (at extra cost)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Standard frame



Powder coated frame

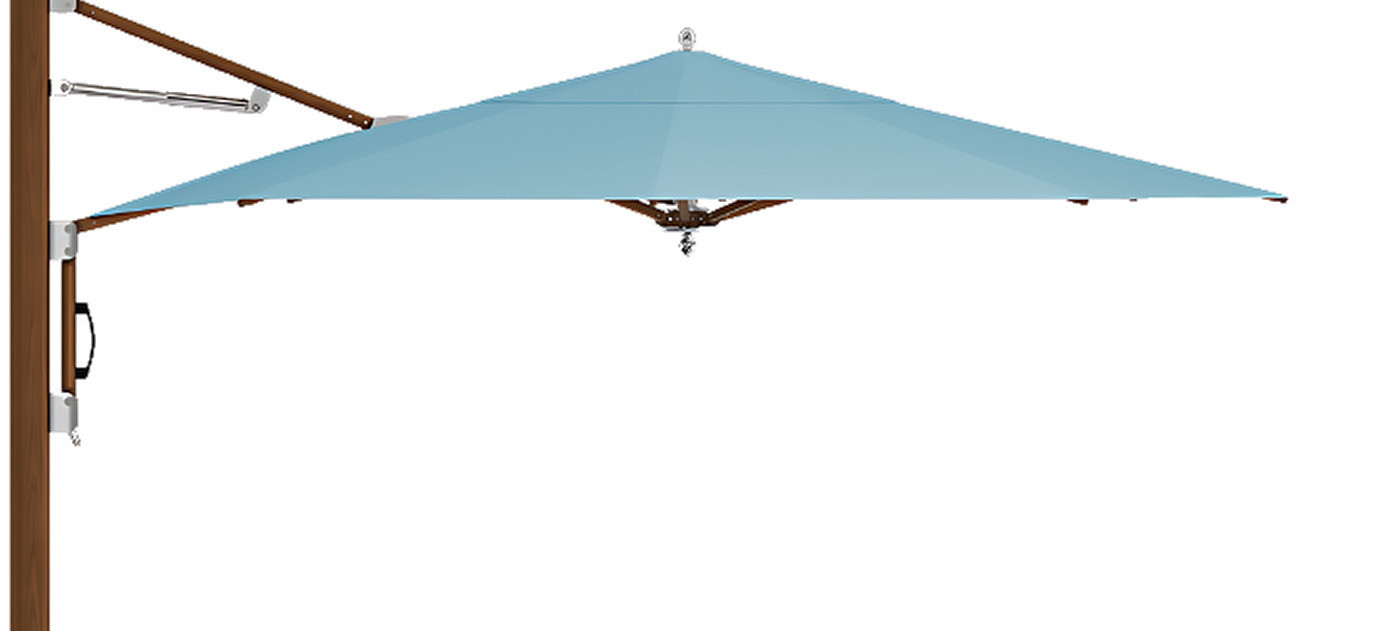

Bay Master M1 Classic Cantilever
The Bay Master M1 Cantilever is smaller than the MAX cantilevers and comes in smaller shapes and sizes. It has stainless steel hardware, aluminium struts and the Lift-Assist system for easier opening.

It comes in 4 sizes: a 245 or 300 cm square and an R 275 or R 335 cm octagon. Level B fabric is included. The mast is not telescoping, so the canopy may not close over a table.
