Bay Master M1 Swim Under Cantilever up to 2.45 x 2.45 m

Technical data

• frame: cantilever parasol with a shorter side mast, you can set it up over a pool or patio
• standard features: security stem, single wind vent in the canopy colour (contrasting on request), market cut profile, brushed acorn finial.
• sizes:
  • BMSWIMCL8.0SQ: 245 x 245 cm, square, minimum anchor weight 90 kg
• fabric: the Comfort CXT and Light LXT series (level B) are included. All Marine MXT series (level C) cost extra, Premier PXT (level E) costs extra. The surcharge does not apply to frame colour or lift. You find the fabric colours below.
• frame colours: Satin Anodized (standard). Vineyard Dura-Teak Natural. The price list shows no powder coat for this model.
• lift: the counter balance lift system is included. The lift sits on the back of the cantilever, so you open the parasol from the poolside.
• lighting and heating: not available for this model.
• mounting: in-ground mounts sit within the base for added security.
• ordered separately (accessories):
  • anchors and mounts:
    • G-MAX Plate square anchor (GV)
    • Half Aluma-Crete cube anchor (AGSP2)
    • Half cube cushion for the half cube anchor (AGSP2-HCC)
    • MAX in-ground security mount for new concrete (IGSM)
    • MAX stainless steel surface anchor for existing concrete (MAXPLATE)

Extras on request
valance (straight, scalloped, classic or modern Roman)
contrasting binding on canopy and vent
contrasting welt
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
Prices exclude VAT.

Fabrics

Comfort CXT 8000, price level B (included)
An acrylic fabric for smaller parasols where the strength of a marine grade fabric is not needed. It also suits furniture, so you can match canopies and upholstery. The hand-tufted blossoms of the Ocean Master MAX Bolero are made from it too.

Light LXT 7700, price level B (included)
A lighter alternative to the MXT 9700 series. The woven polyester fabric suits smaller parasols.

Marine MXT 9000-9600, price level C (at extra cost)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (at extra cost)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (at extra cost)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (at extra cost)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Standard frame

Bay Master M1 Swim Under Cantilever

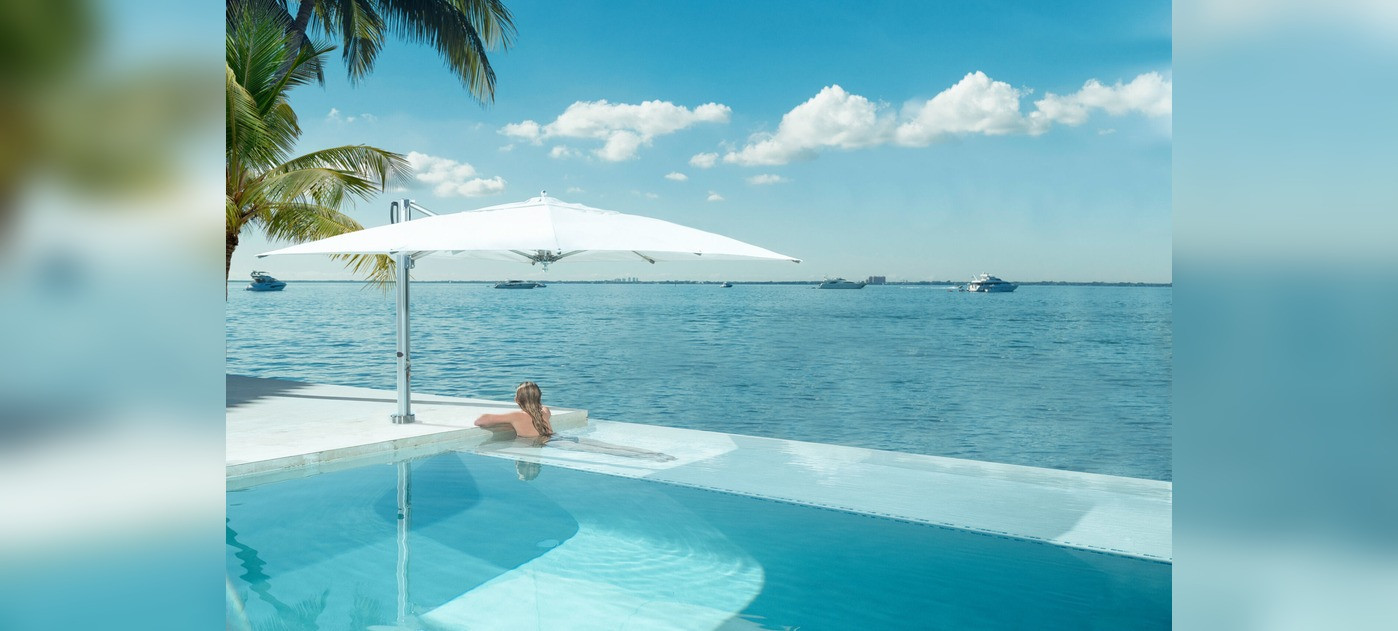

The Swim Under takes its cue from the wind-swept coast and desert of the Baja Peninsula. The mast is shorter, so you can set the parasol up right over a pool or patio. In-ground mounts in the base add security.

The lift sits on the back of the cantilever, so you open the parasol from the poolside. The size is 245 x 245 cm, level B fabric is included.

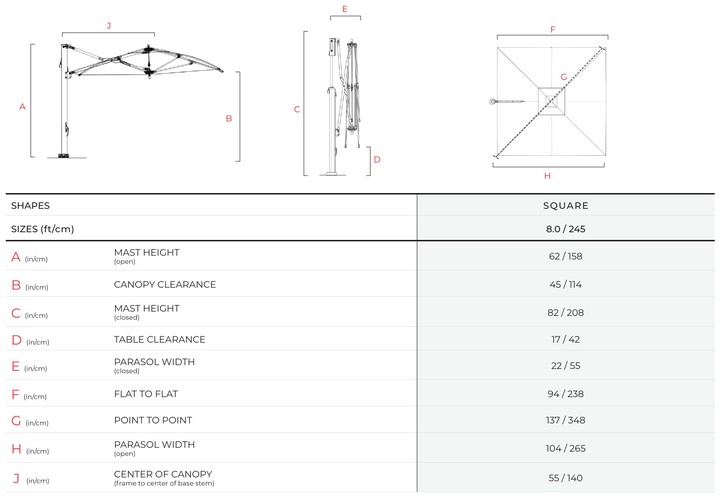

Dimensions
