Fim base ALU 4 with tube

Square base ALU 4 in powder coated aluminium with an upper tube and adjustable feet. It takes poles of Ø 5 and Ø 5.5 cm and needs 8 concrete tiles 40 x 40 cm. The price is for 1 base, and it fits every Reflex Telescopic and the Lipari 300 x 400 cm.

code: GBASE004600

colour: silver (SILV), graphite (GRAF) or white (BIAN), please state the colour in the order note

weight: 15 kg (2 packages)

Material: powder coated aluminium, base and upper tube.
Colours: silver (SILV), graphite (GRAF) or white (BIAN).
Adjustable feet.
For poles of Ø 5 and Ø 5.5 cm.
Ballast: 8 concrete tiles 40 x 40 x 4 cm (15 kg), not included. You can also use a decorative vase 40 x 40 x 40 cm as ballast.
Covers: for a covered base you need 4 aluminium covers 40 x 40 cm (PCART002300), sold separately.
Wheels: the set of 4 double wheels with locking system (GRUOT000100) is sold separately. With the wheels, the umbrella measures in the table are 6 cm higher.

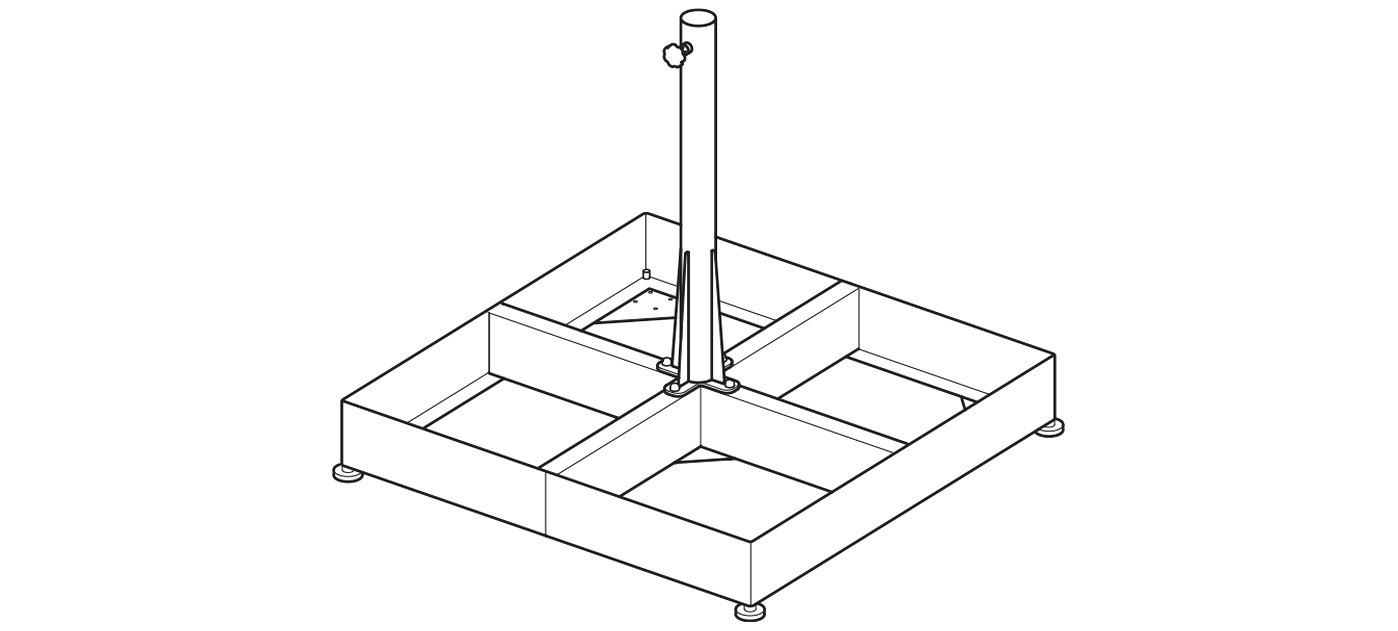

Measures on the drawing: 91 x 91 cm, base height 15 cm, 84 cm with the tube.
Packaging: 2 packages, 15 kg, 0.17 m³.
Fits the umbrellas: Reflex Telescopic (all sizes), Lipari 300 x 400 cm.

Dimensions
