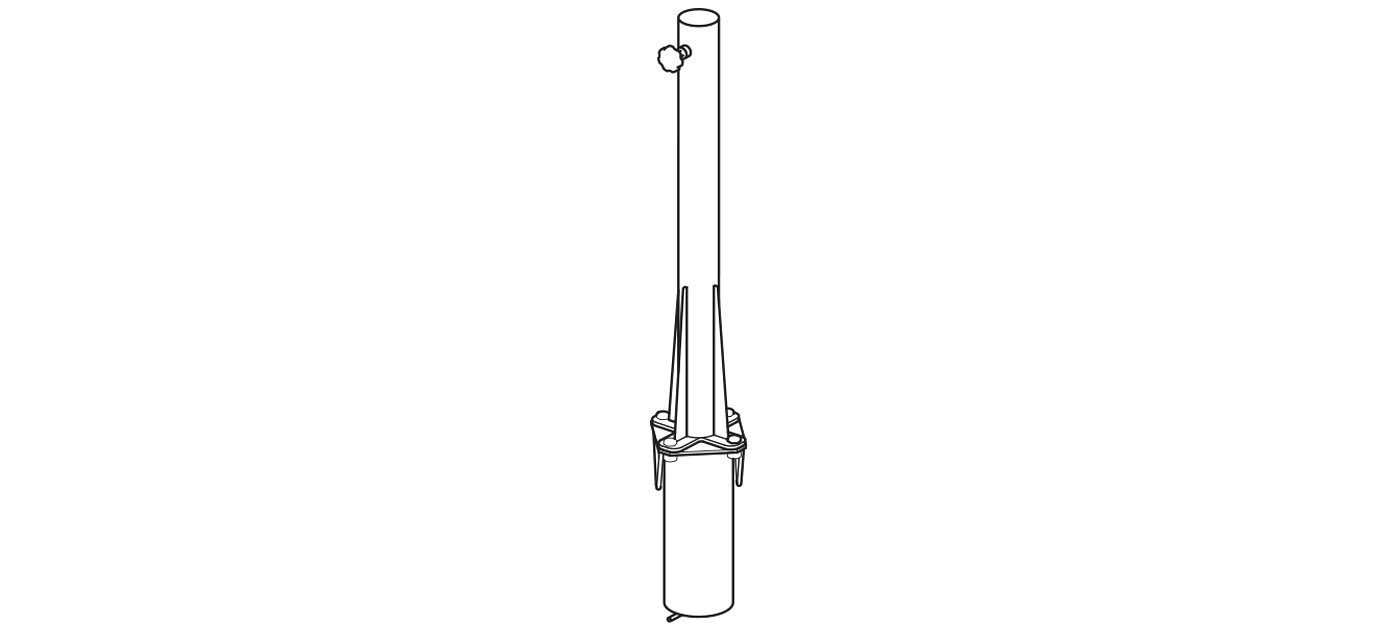

Fim ground insert base with tube 70 cm

Ground insert base in zinc plated steel for setting into concrete, with an upper tube 70 cm long. It takes poles of Ø 5 and Ø 5.5 cm. The price is for 1 piece, and it fits the Reflex Telescopic umbrella.

code: GBASE006200

colour: silver (SILV), graphite (GRAF) or white (BIAN), please state the colour in the order note

weight: 8.5 kg (2 packages)

Material: zinc plated steel. Upper tube in powder coated steel.
Tube colour: silver (SILV), graphite (GRAF) or white (BIAN).
Length of the upper tube: 70 cm.
For poles of Ø 5 and Ø 5.5 cm.
Measures on the drawing: 29 cm in the concrete, concrete footing 75 x 75 cm and 35 cm deep, plate 16 x 16 cm.
Packaging: 2 packages, 8.5 kg, 0.034 m³.
Fits the Reflex Telescopic umbrella (all sizes).

Dimensions
