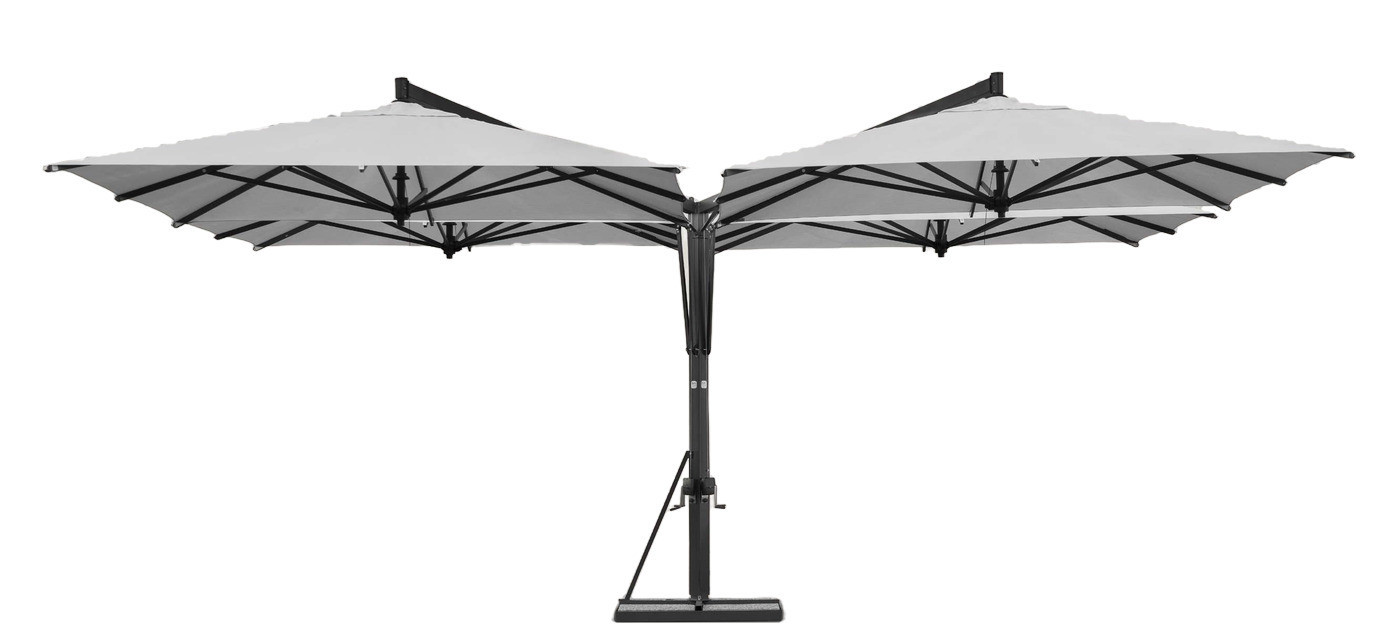

Quadruplo umbrella max. 7 x 7 m

Quadruplo has one pole that carries four umbrellas. It covers up to 700 x 700 cm and needs floor space for only one base. You open each umbrella with its own crank and close it without moving the furniture underneath. The frame is aluminium, the screws stainless steel.

shape: square, four umbrellas on one pole

dimensions: 624 x 624 and 700 x 700 cm

flounce: the Airfim canopy has a flounce, for solution dyed acrylic on request, extra charge 783 EUR excl. VAT

protective cover: optional, 4 covers at 251 EUR excl. VAT each

opening mechanism: four cranks

Description

Video presentation

Fabric type

Our goal is to produce the best quality products. For this reason we use only prime grade materials and the best fabrics for outdoor use.

Acrylic fabric ecru - specially developed for outdoor use (290 g/m²)
A special treatment makes it water-repellent and protects it from stains. The only colour available is ecru.

Solution dyed acrylic fabric (Sunbrella) - the best coloured fabric for outdoor use (280 g/m²)
The colour is added while the fibre is produced. This gives the fabric high resistance to UV rays, even in aggressive environments with chlorine or salt. The colours do not fade and stay stable for a long time, and the fabric also resists moisture. A special treatment makes it water-repellent and protects it from stains. Regular brushing keeps its original look. UPF 50+ (UV protection factor).

Solution dyed acrylic fabric - special colours (Sunbrella) - the best coloured fabric for outdoor use (280 g/m²)
The colour is added while the fibre is produced. This gives the fabric high resistance to UV rays, even in aggressive environments with chlorine or salt. The colours do not fade and stay stable for a long time, and the fabric also resists moisture. A special treatment makes it water-repellent and protects it from stains. Regular brushing keeps its original look. UPF 50+ (UV protection factor).

Micro-mesh fabric - the best solution for windy areas (500 g/m²)
The micro-mesh structure lets air circulate naturally and still gives pleasant shade. The composition of the fibres keeps the colours fast and the fabric resistant to moisture for a long time. Regular cleaning with water and neutral soap keeps the fabric in good condition for a long time.

Airfim fabric - fully waterproof (200 g/m²)
The fabric coating together with special stitching gives full protection against rain and stops water from passing through the seams. A stain treatment gives high resistance to dirt. UPF 80 (UV protection factor).

Frame colours

Quadruplo comes in three frame colours: powder coated aluminium in silver (SILV), graphite (GRAF) or white (BIAN). All three cost the same. The colours in the picture may differ from the real ones.

Specification

Pole: one 10 x 10 cm pole carries four umbrellas. Frame in powder coated aluminium in silver (SILV), graphite (GRAF) or white (BIAN). Screws: stainless steel.
Ribs: aluminium, 40 x 18 mm. You can replace each rib on its own, without taking the umbrella apart. The canopy comes off for maintenance or replacement. A fixing rib improves stability, also in windy conditions.
Opening: four cranks, you open each umbrella on its own. You close them without moving the furniture underneath.
Sizes: square 624 x 624 cm and 700 x 700 cm.
Canopy: the acrylic, solution dyed acrylic and Micro-mesh canopies have no flounce, Airfim has one. The acrylic, solution dyed acrylic and Airfim canopies have a vent, Micro-mesh has none. A flounce in solution dyed acrylic is available on request, extra charge 783 EUR excl. VAT.
The base is sold separately. Minimum recommended ballast on the base: 450 kg.
Packaging: 8 packages, 136 kg, 0.88 m³.
Bases to choose: freestanding steel base FE 4, ground insert base with 13 cm extension and surface mount plate 45 x 45 cm with 13 cm extension. Fix the plate with 4 chemical anchors, not supplied.
Ballast: base FE 4 takes at least 20 concrete or iron tiles 50 x 50 cm. You can also use a decorative vase as ballast, and the cube works as a seat.
Heaters: set of 4 heaters, 2200 W, 220 V, IPX5. Each one heats about 20 to 25 m². A set of 4 heaters with remote control and power adjustment is also available, 2000 W, each for about 20 to 25 m².
LED lamp Round: 3 W, 280 lumen, about 8 hours of use, lithium battery charged by USB, fits on the lower hub. Quadruplo needs 4 lamps.
Protective cover: grey Airfim with aluminium ribs, 251 EUR excl. VAT per piece. Quadruplo needs 4 covers. You fit it on the mounted and closed umbrella.
Gutter: the gutter joins several Quadruplo umbrellas. It is available as an accessory.

Dimensions

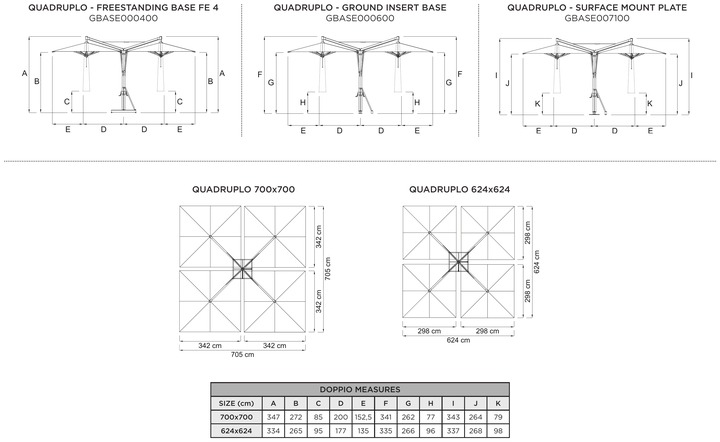

The picture shows the base drawings, the canopy measures and the table of measures in cm. The table is headed DOPPIO, but it applies to Quadruplo.
