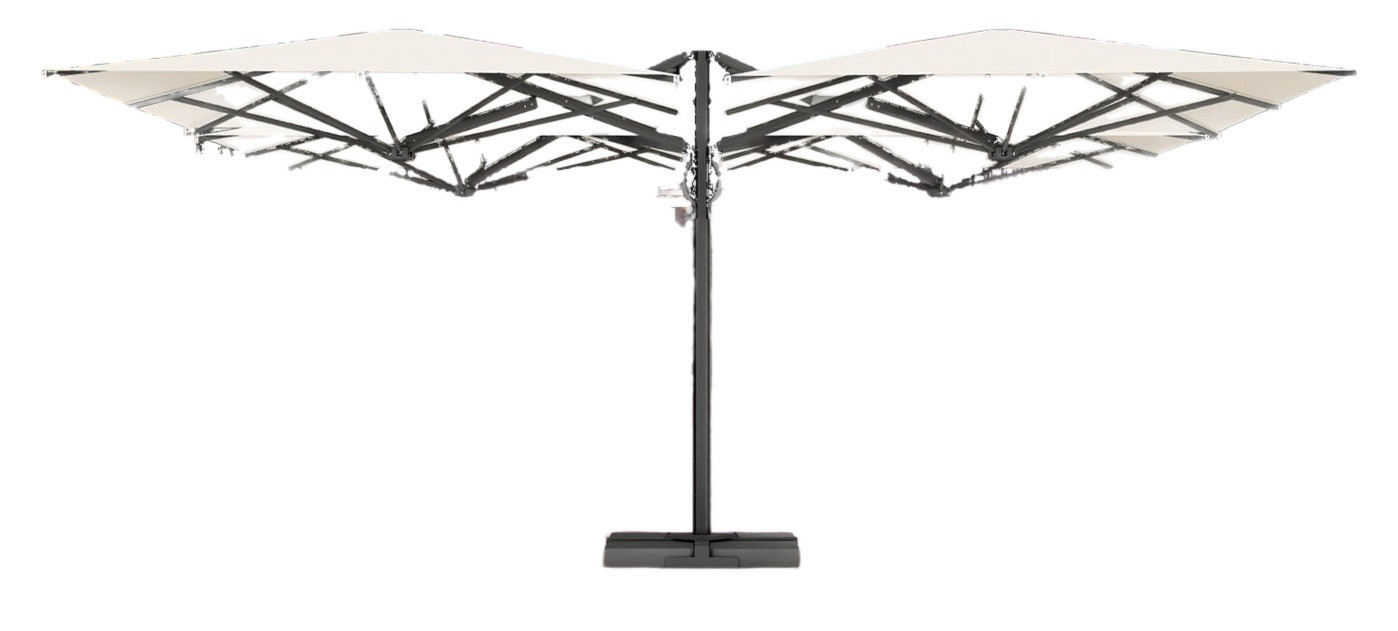

Trevo Parasol max. 6 x 6 m

dimensions:

T1: 300 x 300 cm, 350 x 350 cm, 400 x 300 cm
V1: 250 x 250 cm, 300 x 300 cm
T2: 600 x 300 cm, 700 x 350 cm
V2: 500 x 250 cm, 600 x 300 cm
X4: 500 x 500 cm, 600 x 600 cm

The Trevo is a cantilever parasol that leaves the space under the canopy completely free. There is no central pole and no base in the way, so your guests and tables stay where they are. You fit one, two or four canopies on one pole.

Versions: T1, V1 (one canopy), T2, V2 (two canopies), X4 (four canopies)
Opening: gas spring
Frame: white RAL 9016 or Carbon RAL 7021, timber look on request
Wind resistance: 5 Bft (38 km/h)
Fabric: Orchestra
Valances and logo printing: on request

Technical data

T1 300 x 300 cm: total height open 262 cm, free height open 195 cm, free height closed 80 cm, weight 62 kg, shade area 9 m²
T1 350 x 350 cm: total height open 281 cm, free height open 211 cm, free height closed 55 cm, weight 65 kg, shade area 12.25 m²
T1 400 x 300 cm: total height open 295 cm, free height open 210 cm, free height closed 53 cm, weight 68 kg, shade area 12 m²
V1 250 x 250 cm: total height open 270 cm, free height open 203 cm, free height closed 80 cm, weight 59 kg, shade area 5 m²
V1 300 x 300 cm: total height open 282 cm, free height open 204 cm, free height closed 52 cm, weight 62 kg, shade area 9 m²
T2 600 x 300 cm: total height open 262 cm, free height open 195 cm, free height closed 80 cm, weight 86 kg, shade area 18 m²
T2 700 x 350 cm: total height open 281 cm, free height open 211 cm, free height closed 55 cm, weight 90 kg, shade area 24.5 m²
V2 500 x 250 cm: total height open 270 cm, free height open 203 cm, free height closed 80 cm, weight 80 kg, shade area 12.5 m²
V2 600 x 300 cm: total height open 282 cm, free height open 204 cm, free height closed 52 cm, weight 86 kg, shade area 18 m²
X4 500 x 500 cm: total height open 270 cm, free height open 203 cm, free height closed 80 cm, weight 125 kg, shade area 25 m²
X4 600 x 600 cm: total height open 282 cm, free height open 204 cm, free height closed 52 cm, weight 134 kg, shade area 36 m²
Frame: aluminium, powder coated
System: retractile (the canopy moves to the pole when you close it), gas spring
Ground plate Premium is free with T1, V1, T2 and V2, at extra cost with X4
Packaging T1, V1: box 35 x 35 x 292 cm (38 kg) and box 21 x 35 x 253 cm (38 kg)
Packaging T2, V2: box 35 x 35 x 292 cm (38 kg) and box 21 x 54 x 292 cm (48 kg)
Packaging X4: box 35 x 35 x 292 cm (38 kg) and 2 boxes 21 x 54 x 253 cm (96 kg)
Fabric: Orchestra, 100% solution dyed acrylic, 290 g/m², 10 year colour guarantee
The ground must be level and flat
Handmade in the EU

About the Trevo collection

The T1 has its pole in the middle of one side, the V1 has it in the corner. The T2 and V2 carry two canopies on one pole, the X4 carries four. The parasol does not tilt or turn, which makes it even more stable in the wind. A gas spring helps you open it. Gutters are available for the T2, V2 and X4.
