Outdoor shower Square Q86

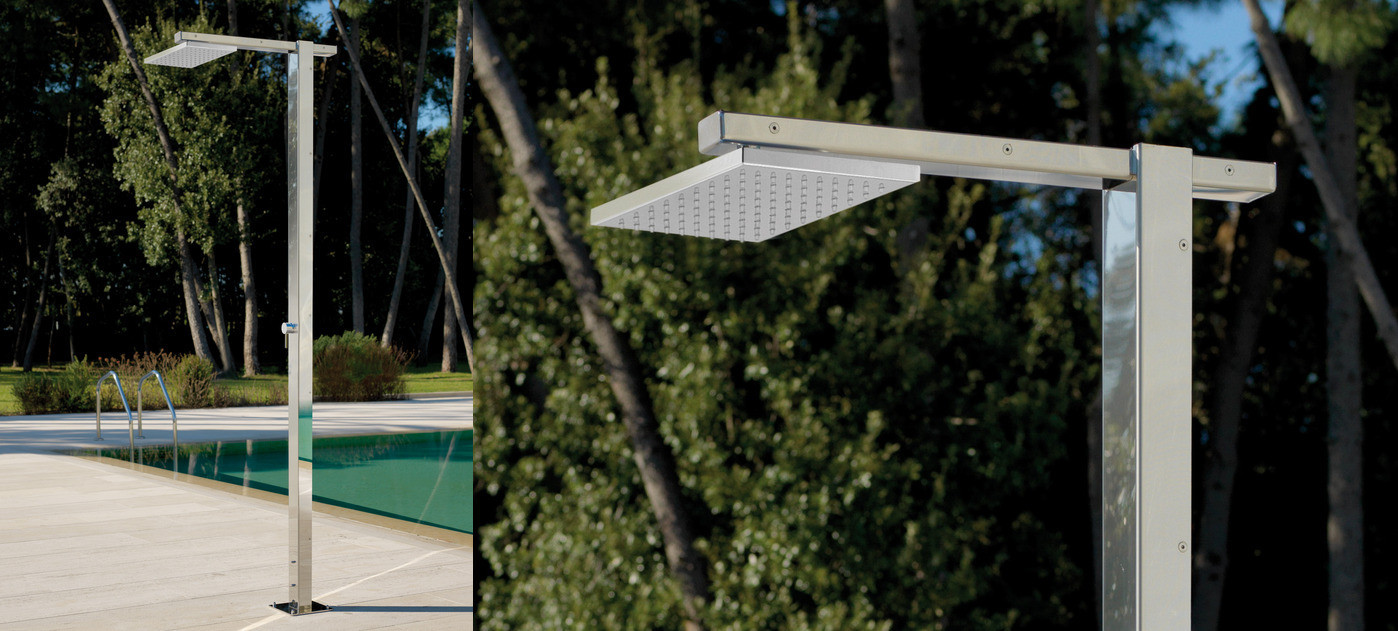

Freestanding outdoor shower column from the Square series. You can choose a version with or without handshower. The installation options are listed below.
The manufacturer makes its taps and columns from stainless steel Aisi 316.
versions: RC, 0, E, M, ME, AST
installation: standard, X, CW
additional tap: RE10.L, RE10.HB.L, RE10.FS.L, RE12.AST.FS
finishes: MX, BX
code: Q86
Installation
Choose the installation under the option Installation on this page.
Standard installation
You fix the column to the floor and the water comes from below through the base.
CW - Concealed water supply
First you set the concealed body into the floor, then you mount the column on it. The matching concealed body (Concealed body CW.1 / Concealed body CW.2) is included in the price of option CW.
X - Direct ground installation
You set the column straight into the ground. It comes with the extension stem XQ200, which you fix in the ground. The stem is included in the price of option X.
Additional tap
You can add an external tap to the column. Choose it under the option Additional tap. The tap comes in the same finish as the column and is included in the price of the combination you choose.
RE10.L, RE10.HB.L, RE10.FS.L, RE12.AST.FS
Finishes
You can choose from these finishes: MX (polished Supermirror), BX (brushed).
The showerhead S07 is also sold separately.
More products of this kind: Showers.
Versions and technical drawings
Q86.RC
Shower column with showerhead S07 for remote control.
Q86
Shower column with stop tap and showerhead S07. Cold water.
Q86.E
Shower column with stop tap, showerhead S07 and handshower. Cold water.
Q86.M
Shower column with mixer and showerhead S07. Hot and cold water.
Q86.ME
Shower column with mixer, showerhead S07 and handshower. Hot and cold water.
Q86.AST
Shower column with time-limited self-closing tap and showerhead S07. Cold water.
