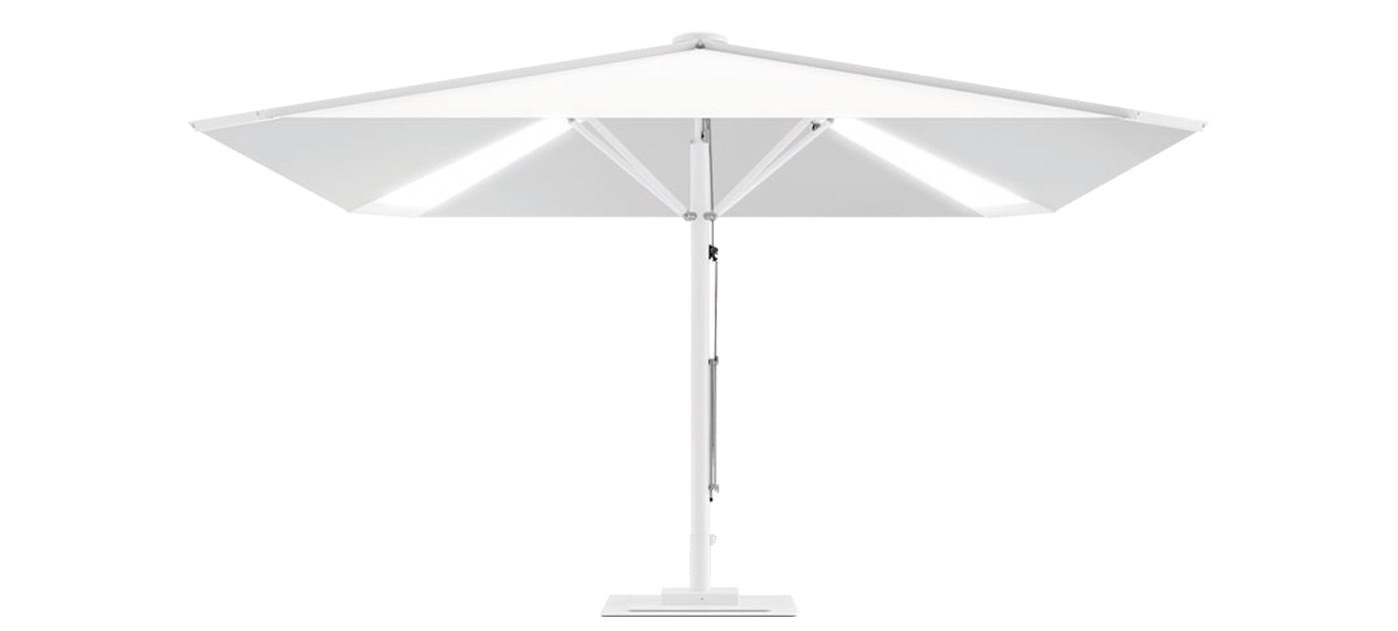

Gaggio Pyramid designer umbrella up to 4.5 x 4.5 m
Pyramid shades, lights and decorates. Open, it protects your terrace and glows through four backlit panels. Closed, it looks like an ornamental lamp. Gaggio developed it with the studio Roberto Pamio + Partners. It covers 9.6 or 19.35 sqm.
- Central pole umbrella and lamp in one, in two sizes: 310 x 310 and 450 x 450 cm
- 4 satin-finish PMMA panels, backlit by LED, with remote control and light dimmer
- Motorised version with remote control for the 450 size
- Opening assisted by gas springs and a nautical pulley, with a locking system
- The 450 closes telescopically, right above your tables
- Frame in high-tenacity 6005 aluminium alloy with white epoxy powder coating
- Round aluminium central pole, 80 mm (310) or 100 mm (450) in diameter
- Interchangeable canopy panels (Modular Canopy) in Nautical HP PVC fabric
- Polished and anodised aluminium joints, stainless steel bolts
Every Gaggio parasol is made to order. You choose the size and the fabric, and the maker builds the umbrella to fit your terrace.
Need another size or more height? Ask us. Production takes 20 to 25 working days. Bases and fixings are sold separately.
Why Pyramid?
- Open, it shades you and lights your table through 4 backlit panels
- The LED light has a remote control and a dimmer, so you set the mood
- Closed, it works as an ornamental lamp
- Covers 9.6 or 19.35 sqm in two square sizes
- Motorised version with remote control for the 450 size
- Gas spring assisted opening with a nautical pulley and a locking system
- The 450 closes telescopically above your tables
- The panels can be customised
- Canopy panels are modular and interchangeable, so you can replace a single one
- Aluminium frame with stainless steel bolts
The canopy is Nautical HP, a PVC fabric (Nautical Top Heavy, 445 g/sqm). It is lacquered on both sides, fungicide-treated, embossed with a leather-look finish and waterproofed on the back.
Technology PVC
100% PVC
It is a coated PVC fabric that is water-proof and easy to clean.
Frame colours
The frame is white as standard. Any RAL colour on request.
| Size (cm) | Area (sqm) | Panels | Weight (kg) | Height A (cm) | Height B (cm) | Height D (cm) | Height E (cm) |
|---|---|---|---|---|---|---|---|
| 310 x 310 | 9.6 | 4 | 60 | 283 | 225 | 82 | 283 |
| 450 x 450 | 19.35 | 4 | 98 | 298 | 225 | 132 | 421 |
The 450 x 450 cm size is available motorised, with remote-controlled opening and closing.
A = total height open, B = height of the canopy edge, D = gap between the floor and the closed umbrella, E = height of the closed umbrella. Heights are approximate and exclude the base.
