STOM trifase pump - 1 to 70 L/min, 400 V AC

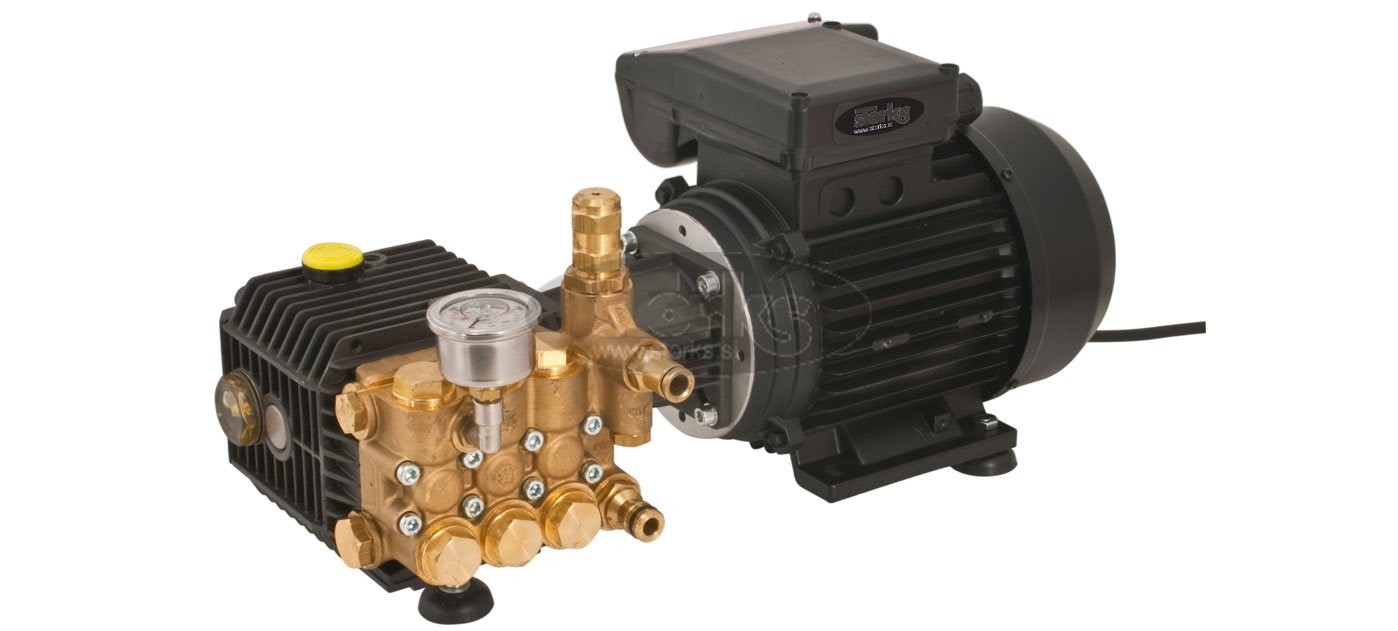

STOM pump - 1 to 17 L/min
chevron_left chevron_right


Transmission with joints and four ball bearings.
Ceramic pistons and a brass head.



Pump features:
Supply pressure: 1 - 2.5 bar
Voltage: 400V~ 50Hz
Working temperature: 0-50°C
IP Protection: IPX5

90993x
€1,325.97 (tax incl.) €1,325.97 (tax excl.)
(No tax)


  • 1 L/min, tension: 0,75 KW, pressure: 0-150 bar, weight: 18,5 kg, dimensions: 454 x 208 x 188 mm
  • 2 L/min, tension: 0,75 KW, pressure: 0-150 bar, weight: 18,5 kg, dimensions: 454 x 208 x 188 mm
  • 4 L/min, tension: 1,5 KW, pressure: 0-150 bar, weight: 24,5 kg, dimensions: 481 x 232 x 196 mm
  • 6 L/min, tension: 1,5 KW, pressure: 0-100 bar, weight: 24,5 kg, dimensions: 481 x 232 x 196 mm
  • 8 L/min, tension: 1,5 KW, pressure: 0-100 bar, weight: 24,5 kg, dimensions: 481 x 232 x 196 mm
  • 10 L/min, tension: 2,25 KW, pressure: 0-150 bar, weight: 29 kg, dimensions: 455 x 320 x 266 mm
  • 12 L/min, tension: 3,8 KW, pressure: 0-140 bar, weight: 29,3 kg, dimensions: 455 x 320 x 266 mm
  • 14 L/min, tension: 3,8 KW, pressure: 0-100 bar, weight: 29,3 kg, dimensions: 455 x 320 x 266 mm
  • 15 L/min, tension: 5,2 KW, pressure: 0-150 bar, weight: 32 kg, dimensions: 455 x 320 x 266 mm
  • 17 L/min, tension: 5,2 KW, pressure: 0-130 bar, weight: 32 kg, dimensions: 455 x 320 x 266 mm
  • 21 L/min, tension: 5,2 KW, pressure: 0-70 bar
  • 25 L/min, moč: 6,5 KW, nadtlak: 0-130 bar, teža: 45 kg, dimenzija: 455 x 320 x 266 mm
  • 30 L/min, tension: 6,5 W, pressure: 0-100 bar, weight: 45 kg, dimensions: 455 x 320 x 266 mm
  • 70 L/min, tension: 15 KW, pressure: 0-100 bar
  • NO
  • YES
  • YES
  • NO
  • NO
  • YES
  • NO
  • YES
  • NO
  • YES
