Misting

EVAPORATIVE COOLING - for good filling in cool air

Why it COOLS?

Water needs energy (=heating) to evaporate: for this reason, we must light up the stove to make it boil.
Imagine how much heat we need to boil and completely evaporate a cooker containing 1 litre of water: the same energy can be subtracted from the environment. Physicians says that we need 2272 KJ.

This system is in nature from the beginning of times: also we, when we overheated,we perspire, and with sweat evaporation we are able to keep our body temperature almost constant.

Why it does not WET?

If we throw the same litre of water into the environment, this would fall down to the floor, wetting it and evaporating in a pair of hours.

The secret is spraying the water through fine drops using special nozzles. In this way the evaporation effect is very quick and it happened before the drop is fallen to the floor.

For this reason is very important working at a high pressure: higher the pressure, finer the drops.

We need about 7000 billions drops of atomized water to create a litre of water...

Is it CONVENIENT?

The most important advantage is the economy of use.

If we use water from the aqueduct, spending 2 €/m³, to cool an area of 100 mq, we will pay:
- for water: 0,002 €/h
- for electrical energy: 0,01 €/h

Total: 0,012 €/h to cool a balcony of 100 mq.

The saving is significant also pre-cooling the exchangers of large systems refrigerators, so as to increase the efficiency of the refrigerators systems.

For this reason our system has been already rewarded with the NEXT ENERGY AWARD (fair of Milan) and has been object of research from university agencies.

kmetijstvo industrija kmetijstvo

Misting men: outdoor cooling, fire fighting, humidification, aromas...

Our cooling systems in civil cooling, humidification, fire fighting (watermist). Our misting systems have been installed for many years in private gardens, restaurants...

Misting used in industry: cooling, humidification, watermist, dedust

The misting is also for customers in the industrial field: cooling (foundries, plastic molding, steel industry, food industry...), humidification (cold storage, food industry...

Misting in Agriculture: use it to cool, disinfect, humidify farms

Water spray in agriculture: animal cooling in farms, disinfection of farms, odor reduction, humidification of the greenhouses and cold storage for vegetables...

AirCleaner - Quick and easy work environment sanitization
Environmental disinfection is a very hot topic today. In fact, many customers and companies are looking for adequate solutions for environmental sanitation against COVID-19. More precisely we should say to prevention of COVID-19, which is the disease (acronym for Corona Virus Disease). And equally precisely we should talk about disinfection against Sars-CoV-2, which is the virus, of the coronavirus family, responsible for the infamous Covid-19 disease.However, the sanitation of the workplace is an obligation of the employer that has existed for years, according to the provisions of law 81/08 (and previously 626). In fact, in the presence of a biological risk, the employer is obliged to implement adequate prevention and protection measures.
€895.00
Dooroty portal for disinfection and sanitation 0,35 L/min
Dooroty is a portal for the safe disinfection and sanitation of people entering public or private facilities. It is effective in the entrances of offices and factories, stadiums, shopping centers, discos, stations and airports. Thanks to its quiet operation, you can use Dooroty almost anywhere.
€8,750.00
Misting system MICRO KIT - 5 nozzles
KIT includes:nozzles 20 μm with antidrop: 5distance nozzles: 80 cmdistance where the nozzles are: 3,2 mdistance from pump to the first nozzle: 10 mstands for pipe: 10total lenght of the pipe: 13,2 mWe suggest to add the Pump connection KIT and 1 μm Filter.
€988.98
Misting system ULTRA by measure from 6 to 60 nozzles
KIT includes:nozzles 15 μm with antidrop: 6 - 60standard nozzle holders with quick connection: 6 - 60end nozzle holders with quick connection: 1 - 5distance nozzles: we suggest 80 cmdistance where the nozzles are: your choicedistance from pump to the first nozzle: your choicetotal lenght of the naylon pipe: 20, 40, 60, 80 or 100 mThe connection KIT and 50 μm Filter in included with the pump.
€1,370.93
Misting system MINI KIT - 10 nozzles
KIT includes:nozzles 20 μm with antidrop: 10distance nozzles: 80 cmdistance where the nozzles are: 7,2 mdistance from pump to the first nozzle: 10 mstands for pipe: 20total lenght of the pipe: 17,2 mWe suggest to add the Pump connection KIT and 1 μm Filter.
€1,051.25
Misting system MAXI KIT - 20 nozzles
KIT includes:nozzles 20μm with antidrop: 20distance nozzles: 80 cmdistance where the nozzles are: 15,2 mdistance from pump to the first nozzle: 20 mstands for pipe: 40total lenght of the pipe: 35,2 mWe suggest to add the Pump connection KIT and 1 μm Filter.
€1,255.58
Misting system MEGA flexible KIT - 25 nozzles
KIT includes:nozzles 15 μm with antidrop: 25standard nozzle holders with quick connection: 24end nozzle holders with quick connection: 1distance nozzles: on requestdistance where the nozzles are: on requestdistance from pump to the first nozzle: on requesttotal lenght of the naylon pipe: 30 mWe suggest to add the Pump connection KIT and 1 μm Filter.
€1,597.70
Misting system CREZA P650 KIT
6 nozzles, 90° oscillation, three speeds. Possibility to modify inclination un to 45° from the horizontal.
Misting fan with shovels of high efficiency in degrees to guarantee high speed and air capacity. This realise a very good mixture of air/water and makes it good to use in spaces of big dimensions where it is necessary to reach important distances.KIT includes:pump1 selfstending fan diameter 650 mmdistance from pump to the fan: 20 mWe suggest to add the Pump connection KIT and 1 μm Filter.
€1,311.27

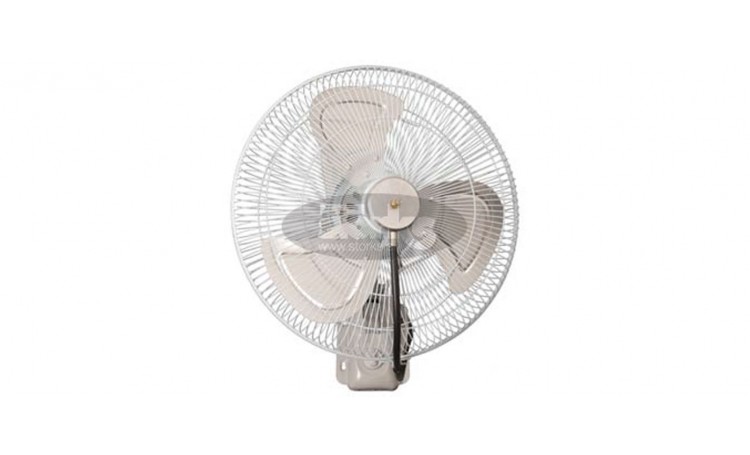

Misting system CREZA S402 KIT
Only one central nozzle. 90° oscillation. Three speeds. Possibility to modify inclination un to 45° from the horizontal. To this system you can later add to 23 nozzles.
KIT includes:
pump
2 fans diameter 400 mm for wall instalation
distance from pump to the first fan: 20 m
distance between fans: 10 mWe suggest to add the Pump connection KIT and 1 μm Filter.
€1,557.18
Misting system SCI KIT 1L/min with iControl
Transmission with Joints and 4 ball bearings.
Ceramic pistons and brass head.
Pump features:
power: 750Wpressure: 0- 100 barweight: 18 kgdimensions: 454 x 208 x 188 mmsupply pressure: 1 - 2,5 bar
tension: 230V~ 50Hz
working temp: 0-50°C
IP Protection: IPX5We suggest to add the Pump connection KIT and 1 μm Filter.
€1,856.58
Misting system SCI KIT 2L/min with iControl and 40 nozzles
KIT includes:
nozzles 20μm with antidrop: 40
distance nozzles: 100 cm
distance where the nozzles are: 40 m
distance from pump to the first nozzle: 20 m
stands for pipe: 40
total lenght of the pipe: 60 mWe suggest to add the Pump connection KIT and 1 μm Filter.
€2,174.84
Misting system SCI KIT 4L/min with iControl and 80 nozzles
KIT includes:
nozzles 20μm with antidrop: 80
distance nozzles: 100 cm
distance where the nozzles are: 80 m
distance from pump to the first nozzle: 20 m
stands for pipe: 80
total lenght of the pipe: 100 mWe suggest to add the Pump connection KIT and 1 μm Filter.
€2,896.26
Misting system SCI KIT 6L/min with iControl and 120 nozzles
KIT includes:
nozzles 20μm with antidrop: 120
distance nozzles: 100 cm
distance where the nozzles are: 120 m
distance from pump to the first nozzle: 20 m
stands for pipe: 120
total lenght of the pipe: 140 mWe suggest to add the Pump connection KIT and 1 μm Filter.
€3,554.02
Misting system SCI KIT 8L/min with iControl
Transmission with Joints and 4 ball bearings.
Ceramic pistons and brass head.
Pump features:
power: 1500Wpressure: 0- 100 barweight: 22 kgdimensions: 481 x 232 x 196 mmsupply pressure: 1 - 2,5 bar
tension: 230V~ 50Hz
working temp: 0-50°C
IP Protection: IPX5We suggest to add the Pump connection KIT and 1 μm Filter.
€4,190.56
STX pump - 6 to 60 nozzles
STX pumps are the right solution to be integrated in mediumsmall misting systems where it is necessary to conciliate professional features and an elegant design, easy to use and reduced price.
€1,150.00
ST Confort pump - 1 to 6 L/min
To this pump you can install from 20 to 120 nozzles 15 μm.
Power pump unit ST COMFORT AROMAS is the most refined thing that is now available in the misting field. The supervision system iControl assures: silence, dripping absence, the maximum well-being in any environmental condition. No programmer to set up, no thread to connect.
€2,723.50
ST Confort pump - 0,1 to 1L/min
To this pump you can install from 1 to 20 nozzles 15 μm.Power pump unit ST COMFORT AROMAS is the most refined thing that is now available in the misting field. The supervision system iControl assures: silence, dripping absence, the maximum well-being in any environmental condition. No programmer to set up, no thread to connect.
€2,543.25
NEBOLA pump, 2-25 nozzles
This motopump is the right solution for all the moving and semi-mooving installations where it's necessary to reduce at the minimum product costs maintaining the reliable level as the other high quality pumps.NEBOLA umpis the new model increasing and completing our misting pumps.Even maintaining the products at a high standard level, our engineers wanted to reach two essential objectives:- Reduce costs without reducing quality and reliability.- Realise a simple system, easy to use and to move.
This motopump is the right solution for all the moving and semi-mooving installations where it\'s necessary to reduce at the minimum product costs maintaining the reliable level as the other high quality pumps.
€945.26
FOGG 1000 portable misting system for sanitation and humidification, 1L/h
Professional, small-sized ultrasonic mist-effect humidifier nebulizer, controlled by a microprocessor that effectively contributes to environmental sanitation according to Decree 274 which "regulates the cleaning, disinfection, disinfestation, rodent control, and sanitization activities".
€750.00
FOGGY portable misting system, 0,4L/h
HUMIDIFICATION and AROMATHERAPYUltrasound functions: very thin misting 5 μm.Aautomatic cycle management: simple and intuitive.Only 1,5 Kg: light and easy to handle.Thinner fog than traditional nozzle systems: for closed environments.Minimum and maximum electronic control: safe.5 μm drop, fog: it prevents dripping.It can be interfaced with iControl: automatic management.
€669.50
FOGGY 6000 portable misting system for sanitation and humidification, 6L/h
Professional mist effect ultrasonic humidifier nebulizer, with chassis in painted anticorrosive material and braked wheels for transport, controlled by a microprocessor that effectively contributes to environmental sanitation according to Decree 274 which "regulates the activities of cleaning, disinfection, disinfestation, rodent control and sanitation ".
€2,250.00
iTTHS timer for STX pumps
iTTHS is much more than a timer. Thanks to his experience in misting, we designed a convenient and comprehensive control system, specific for cooling applications, humidification, dedusting and deodorization.- Easy to install, just a few minutes and you're online.- Many indispensable functions not included in the same timer commercial value.- Check at the same time a nebulizer and an auxiliary (discharging valve, dosing pump...).- It detects the pressure of work and shut down the system in case of anomalies.- You can add digital temperature/humidity sensor.- IP55 BOX protected against water and dust.- Industrial screw connectors for wiring.- 32bit Oversized microprocessor.- 3 buttons, 3 led and a big clearly visible display.
€200.51
iTTHS 3 phase timer
iTTHS is much more than a timer. Thanks to his experience in misting, we designed a convenient and comprehensive control system, specific for cooling applications, humidification, dedusting and deodorization.- Easy to install, just a few minutes and you're online.- Many indispensable functions not included in the same timer commercial value.- Check at the same time a nebulizer and an auxiliary (discharging valve, dosing pump...).- It detects the pressure of work and shut down the system in case of anomalies.- You can add digital temperature/humidity sensor.- IP55 BOX protected against water and dust.- Industrial screw connectors for wiring.- 32bit Oversized microprocessor.- 3 buttons, 3 led and a big clearly visible display.
€874.47
Digital temperature and humidity sensor
Sensors produced specifically for humidification and adiabatic cooling.Extended and accurate detection range, thanks to the digital factory pre-calibrated sensor, it does not require calibration.three transmission modes: Analog, Modbus and RTUsupply: 5-24 VDCoutput signals: 0-5 VDC – 1 wirerange temperature: -20/80 °Chumidity range: 0–100% RHcontact capacity: 6A inductive2,5 cm   8 cm    8 cm
€153.47
Drain valve KIT
To depressurize the pipe and empty it. It is suggested to be installed to ensure proper operation of the anti-drip valve nozzle.It must be connected to a control device such as ITTHS timer.
€111.39
Analog humidity sensor
It provides a connection when the relative humidity drops below a manual set level.range detection: relative humidity 40% - 90%commutation: 5% (±1%), response time 5scontact capacity: 1,6A resistiveprotection: IP20conditions: 0-60°Cmediul life: > 50000 cicles
€139.05
3/8” M damping pipeline end
Suggested to reduce the pipeline vibrations and noises.Can be installed as a standard pipeline end.
€118.82
Arches with 7 nozzles to be used in parks
includes: 7x 20 μm nozzlesmeasurements: 2,5 m (height)extension of the arm: 80 cmbasement: 200x200x5mminlet joint: 1/4"material: K033 stainless steel tube 48x2,6mmThe distance of the first nozzle holder is 80 cm from the ground, then they are fitted equally from each other.
Dosing pump
It can be connected directly to the filter. The pressure must be less then 2 bars. It can be used to dose the aromas, desinfection and natural extracts mix to repel insects.The dosing pump can be wired and integrated in the system iControl or iTTHS timer.
€195.63
Inlet digital Pressure Sensor 0-10 bar or 10-100 bar
It provides an analog signal proportional to the pressure, which can be detected by the electronic devices.range detection: 0-10 bar and 10-100 bar (adjustable with screws)contact: NO/NA , 2A max (resistive)body: brass, 1/8”G connection
€64.79
Digital Pressure Sensor 0-200 bar
It provides an analog signal proportional to the pressure, which can be detected by the electronic devices.range detection: 0-200 bar (max pressure 275 bar)precision: ±1%power: 5VDC ±0,1signal: 0,5V = 0 bar; 4,5V = 200 barbody: AISI 316 stainless steelconnection: 1/8”G
€135.80

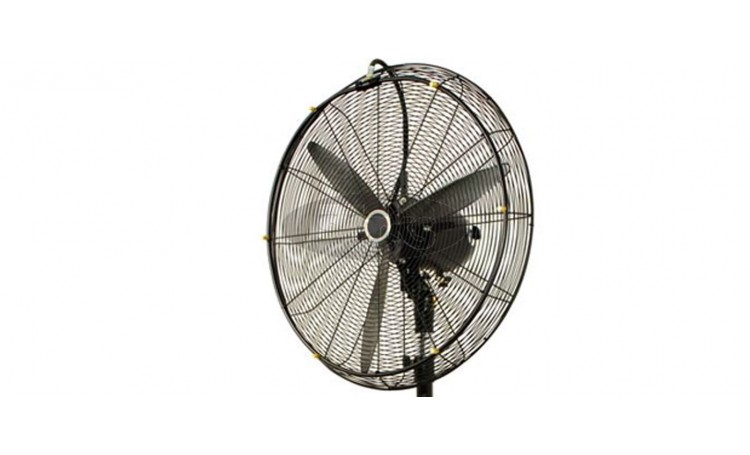

Fann CREZA P650 with six 15 μm antidrop nozzles
6 nozzles, 90° oscillation, three speeds. Possibility to modify inclination un to 45° from the horizontal.
Misting fan with shovels of high efficiency in degrees to guarantee high speed and air capacity. This realise a very good mixture of air/water and makes it good to use in spaces of big dimensions where it is necessary to reach important distances.
€529.39

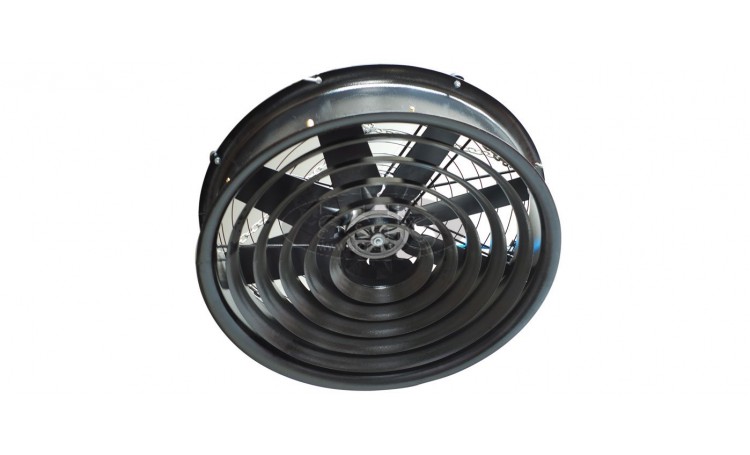

Fann CREZA D with eight 15 μm antidrop nozzles
Air diffuser under way profile: ideal for destratification and improves evaporation
Nozzle position: avoids any fall of drops
Hooks and supplied chains of series: simple installation
Paint job to black powder: elegant and discreet
€1,693.73
Fan NELTEMI without shutter
Fan for Agriculture and Industry.
Line of realized industrial fans in stainless steel and with motoriductor in a position to developing remarkable air exchanges. These fans are supplied without nozzles in order to have the maximum flexibility. For example it is possible to install window fans and nozzles in line inside the room.
€801.00
Fann NELTEMI with shutter and winter isolation
Fan for Agriculture and Industry.
Line of realized industrial fans in stainless steel and with motoriductor in a position to developing remarkable air exchanges. These fans are supplied without nozzles in order to have the maximum flexibility. For example it is possible to install window fans and nozzles in line inside the room.
€861.70
Ultraflexible multilayer tube
Intermediate braid polyester: maximum burst strength and flexibility
Inside: a lower pressure drop, minimum deposits and micro-organism
PVC outer sheath: resistant to wear and chemical agents
For more professional systems. Ultraflexible multilayer tube. Thanks to the triple layer, it is more resistant to temperature, abrasion and chemical exposure than traditional naylon pipes.
Nylon pipe Ø 3/8”
For us with quick connection fittings and nozzle folders.
Black nylon pipe. Flexible, quick installation and easy to cut.
Wall thickness: 2,5mm (stronger than 2 pipes)
Curvature radius min.: 250 mm
Max working pressure: 100 bar
Working temperature: -20/50°C (Up to 80°C; p. max= 80 bar)
Weight of the pipe: 60 g/m (Full of water:76 g/m aproximately)
Inox pipe 3 m bars with prefabricated nozzle holders
AISI304 pipe for high pressure. Straight bar to make perfect installations.
Max working pressure: 150 bar
Max pressure: 500 bar
Weight of the pipe: 180 g/m (full of water: +38 g/m)
Thermal stress: 1 mm each 100 m /°C
External diameter: 8 mm
Thickness: 1 mm
€95.00
Inox pipe in 3 m bars
AISI304 pipe for high pressure. Straight bar to make perfect installations.
Max working pressure: 150 bar
Max pressure: 500 bar
Weight of the pipe: 180 g/m (full of water: +38 g/m)
Thermal stress: 1 mm each 100 m /°C
External diameter: 8 mm
Thickness: 1 mm
€15.39
Copper pipe 2 m bars, Ø 3/8”
High pressure rate pipe. Copper has an anti bacterial action.
Straight bar to make perfect installations.
Max working pressure: 150 bar
Max pressure: 500 bar
Weight of the pipe: 214 g/m (full of water: 284 g/m)
Thermal stress: 1,6 mm each 100 m/°C
€19.10
Metal pipe holder (25 clamps)
Made in steel for spring, with White or Black polietilene shiny cover.
Fixing clips: self-tapping M2 screw (included).
Max temperature: 60°C.
€29.39
TEE for multilayer pipe
3 connectors for multilayer tube.

TEE fitting removable and adjustable even after pressing. It makes dismantling and repositioning of the line easier, for example, at the end of season. To reposition the insert, grease or grease the o-ring to prevent damages.
€18.04
Multilayer tube joint – 3/8”F
Material: Stainless steel AISI 304
Thread holder: 10/24” UNF
Thread fastening screw: M4 (only on radial models with a single nozzle)
€12.02
Multilayer tube joint – ARM
Material: Stainless steel AISI 304
Thread holder: 10/24” UNF
Thread fastening screw: M4 (only on radial models with a single nozzle)
€10.22
Multilayer tube joint – 1/2”F
Material: Stainless steel AISI 304
Thread holder: 10/24” UNF
Thread fastening screw: M4 (only on radial models with a single nozzle)
€12.02
Multilayer tube joint – 3/8”M
Material: Stainless steel AISI 304
Thread holder: 10/24” UNF
Thread fastening screw: M4 (only on radial models with a single nozzle)
€9.90
Multilayer tube joint – 1/4”M
Material: Stainless steel AISI 304
Thread holder: 10/24” UNF
Thread fastening screw: M4 (only on radial models with a single nozzle)
€10.22
Ear-ring to press for multilayer tubes
Ear-ring to Press for all the connections for multilayer tube. Compatible with all pressfitting fittings for multilayer pipe.

Material: Stainless steel AISI 304
Thread holder: 10/24” UNF
Thread fastening screw: M4 (only on radial models with a single nozzle)
€2.44
Straight Joint
Useful as plastic or copper pipelines extension.
€11.25
L Joint
Useful for small radius bending (r<250 mm).
€14.11
TEE Connector
Useful for additional pipeline.
€18.14
Ogive for INOX fittings
Spare for all fittings. Ogive must be replaced after being pressed (and deformed) the first time.
€4.73
Inox and line cap
To put on standard nozzle holder, at the end of the line.
€2.34
Inox L Joint
2 connections for inox pipe.
€22.28
Blade nozzle, stainless steel AISI303
Nozzle for dust and odour suppression.spray angle: 65° or 40°horizontal jet @ 100 bar, no wind: 10 mworking pressure: 50 bar - 70 barflow rate: 1L - 1.5Lconnection: 1/8 ''Mlenght: 22mmmaterial: AISI303
€22.28
Cone nozzle, stainless steel AISI303
Nozzle for dust and odour suppression.spray angle: 47°5 bar spray angle 80°working pressure: 60 bar - 80 bar - 100 barflow rate: 1,2L - 1.4L - 1,5Lconnection: 1/8 ''Mlenght: 22mmmaterial: AISI303antidrip: no
€33.53
Needle nozzle, stainless steel AISI303
Nozzle for dust and odour suppression.sprey range: 5 m at 90 barworking pressure: 60 bar - 80 bar - 100 barflow rate: 15,9L - 18.3L - 20,5Lconnection: 1/4 ''Mlenght: 22mmmaterial: AISI303
€27.81
Drain valve
Brass drain valve used when the pump stops and you want to drain the water from the pipes. For this to work you need one standard nozzle without antudrop on all ends of the line.
€3.92
Protects from insects - 1L of natural extract
Lemongrass, geranium, eucalyptos and andiroba natural extracts mix, to protect naturally from insects. It's not an insect killer, but since its fragrance is not appreciated, it removes insects. 100 ml bottle is enough to treat 100 mq for 10 hours.
€10.60
Disinfectant - Sanitizer for use with misting systems, 5 L
Disinfectant with a broad spectrum of action: eliminates gram positive, gram negative bacteria, yeasts, molds and various viruses. It does not attack pipes and surfaces and does not corrode.It is heat stable, is not deactivated by organic residues, has a good environmental impact and has low toxicity for mammals.The treatment is effective in 2 min, with a 1/20 dilution. The 5 l container supplied is sufficient to carry out approximately 1000 sanitizations.It can be used to periodically disinfect the spray line.
€27.05
PureFog sanitizer
It is a sanitizer in water solution ready to be mist based on sodium hypochlorite.Kills viruses and bacteria- acts on and through the cell membrane- acts on nucleic acids- denatures the protein membranes of viruses- dermatologically tested- No classification of dangerous substances according to (EG) CLP-VO1272/2008Dosage: 1 ml/dm2 of surface.It acts quickly.
€150.00
Bed smells neutralizer - 1L of naturall extracts
Its ecological formula encapsulates bad smells molecules and modifies them in order to neutralize bad odours. Thanks to its absorption efficiency, this product does not leave any stain or halos. Effective in 10-15 minutes. The box is enough for 20-30 applications, to be changed depending on ventilation condition and customer needs.
€7.40
NEUTRALIZ - Unpleasant odor neutralizer
NEUTRALIZ is a neutralizer for unpleasant odors caused by the decomposition of organic substances (waste, mold, manure,...).Unlike common perfumes that only cover the smell, this breaks them down by neutralizing them completely.Pleasant and light pine scent. It contains biodegradable substances and is not classified as dangerous according to current regulations.Ideal for treatments in:food industries, communities, distilleries, paint booths, water purification plants, composting plants, foundries, rubber industries, livestock farms and where complete odor abatement is required.The product is used diluted in water at a concentration between 0.5 and 4%. In order for the product to perform its action effectively, it is necessary to finely spray it in the environment with high pressure systems, automatic dispensers and in some cases with manual sprayers that are able to generate finely distributed solution mists.Appearance: clear liquid, Blue colorSmell: pineDensity at 15 °C: 10.10 ± 0.02
€20.90
Orange Fresh 750 ml
Citruses mix, lemon, orange and bergamot, enriched by colonial aroma. The hearth is essential and is composed by ozonic and neroli notes. The background is musk.
Family: CITRUSES. Very good for restaurants.
Aroma elements: green, spicy, flower, musk
Emotional area: natural
€16.45
India Passion 750 ml
Flower, oriental, slightly fruited, with and heart of flowers, and cedar wooden, evolving into a creamy vanilla background.

Family: ORIENTAL. The leader in women perfumes.
Aroma elements: amber, patchable, sweet
Emotional area: tasty
€16.45
Exotic Mix 750 ml
An exotic mix, red fruits, evolving into a strawberry and rose heart. The persisting background is amber and musk.
Family: perfume.For discos and beaches.
Aroma elements: strawberry, blackcurrant, pear, vanilla
Emotional area: amusing
€16.45
Wild Herbs 750 ml
Herbs, basil, rosemary and mint, evolving in a fruity pear heart and a then a wooden, musk, dry background.

Family: FOUGERE. Green Fougere are the most requested men perfumes.
Aroma elements: pear, mint, basil, musk
Emotional area: natural
€16.45
Connection KIT for STX pump
KIT includes:2 m plastic braided hose1x M 1/2" - holender element2x two-seater M 1/2"1x F 3/4" - holender element
€59.00
