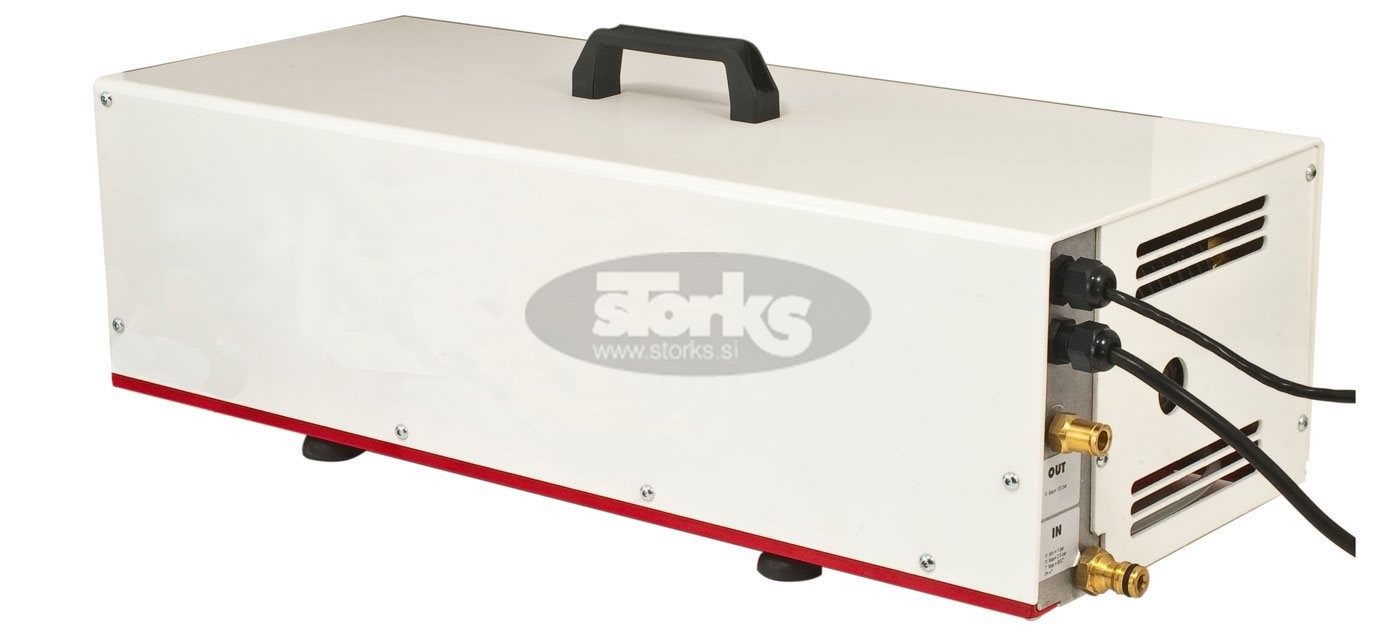

Misting system SCI KIT 1 L/min with iControl and 20 nozzles

SCI KIT 1L/min with iControl
chevron_left chevron_right


KIT features:
iControl provides control over the index calculated between temperature and humidity, enabling automatic control of the pump's operation. Electronic pressure control prevents the pump from starting when there is no water. It also includes a timer.
The inlet solenoid valve stops the water flow when the pump is not working.
The outlet solenoid valve stops the pump when the pump cannot reach the provided pressure, preventing water spillage.
Transmission with joints and 4 ball bearings.
Ceramic pistons and brass head.



KIT includes:
Nozzles 20μm with anti-drop feature: 20
Nozzle spacing: 100 cm
Total length of the nozzle line: 20 m
Distance from the pump to the first nozzle: 20 m
Pipe stands: 20
Total length of the pipe: 40 m

We recommend adding the Pump Connection KIT and a 1 μm Filter.

Pump features:
Power: 750 W
Pressure: 0 - 100 bar
Weight: 18 kg
Dimensions: 454 x 208 x 188 mm
Supply pressure: 1 - 2.5 bar
Voltage: 230V~ 50 Hz
Operating temperature: 0-50°C
IP Protection: IPX5

909901KIT
€2,028.16 (tax incl.) €2,028.16 (tax excl.)
(No tax)
