Misting system SCI KIT 2 L/min with iControl and 40 nozzles
KIT features:
iControl provides control over the index calculated between temperature and humidity, enabling automatic control of the pump's operation. Electronic pressure control prevents the pump from starting when there is no water. It also includes a timer.
The inlet solenoid valve stops the water flow when the pump is not working.
The outlet solenoid valve stops the pump when the pump cannot reach the provided pressure, preventing water spillage.
KIT includes:
Nozzles 20μm with anti-drop feature: 40
Nozzle spacing: 100 cm
Total length of the nozzle line: 40 m
Distance from the pump to the first nozzle: 20 m
Pipe stands: 40
Total length of the pipe: 60 m
We recommend adding the Pump Connection KIT and a 1 μm Filter.
Transmission with joints and 4 ball bearings.
Ceramic pistons and brass head.

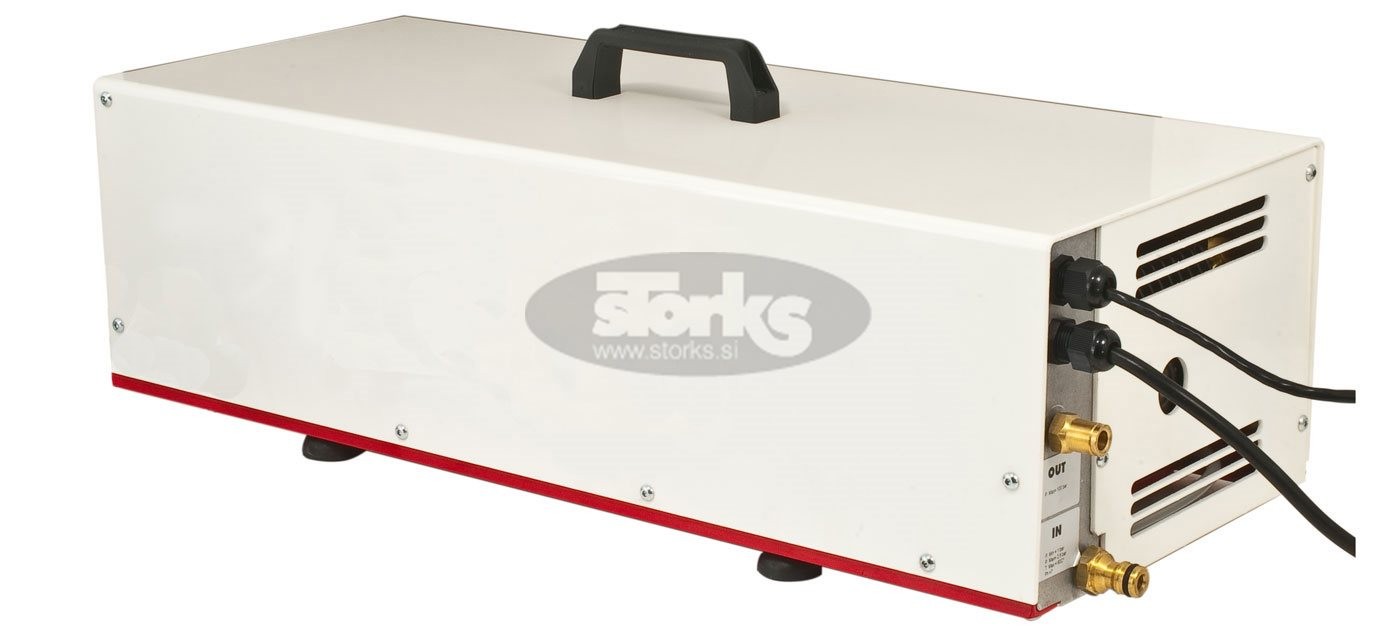

Pump features:
Power: 750 W
Pressure: 0 - 100 bar
Weight: 18 kg
Dimensions: 454 x 208 x 188 mm
Supply pressure: 1 - 2.5 bar
Voltage: 230V~ 50Hz
Operating temperature: 0-50°C
IP Protection: IPX5
