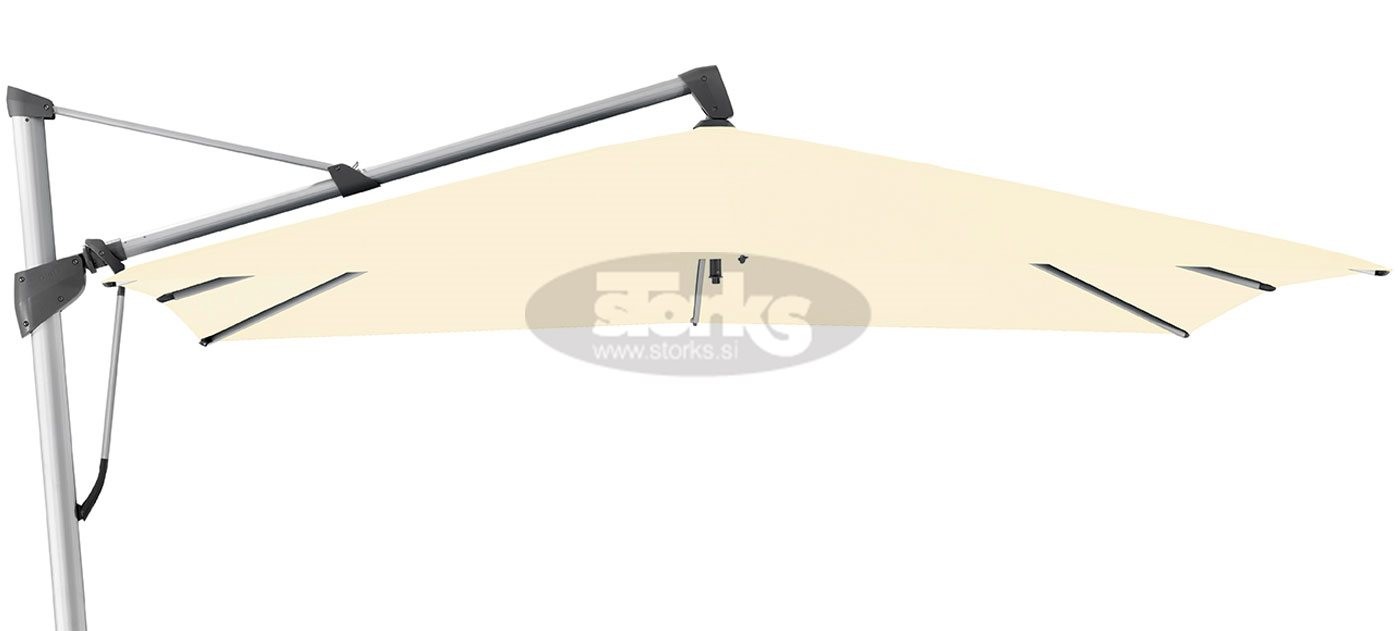

Sombrano S+ umbrella max. R 4 m or 3,5 x 3,5 m
dimensions and colors from stock (quickship program), (natural anodized or anthracite powder-coated):
Ø350 cm, Ø400 cm, without flounce, in colors: 150 / 157 / 408 / 420 / 422 / 453 / 461 / 501 / 523 / 605 / 684 / 686
300 × 400 cm, without flounce, in colors: 150 / 157 / 408 / 420 / 422 / 453 / 461 / 501 / 523 / 605 / 684 / 686
300 × 300 cm, 350 × 350 cm, without flounce, in colors: 150 / 157 / 408 / 420 / 422 / 453 / 461 / 501 / 523 / 605 / 684 / 686
shape:
round or square
dimensions:
R 350 or R 400 cm
300 x 300 cm, 300 x 400 cm, or 350 x 350 cm
flounce:
not available
Protective cover:
included in the standard equipment
frame:
8 rods made of natural anodized, with crank mechanism, (selflocking on both sides) and tilting rod for effortless tilting of the shade roof on both sides up to 54 degrees. The pole profile is oval 66 × 95 × 3 mm. M4 turnable ball-bearing base, powder-coated cast steel, is included.
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester approx. 220 g/m²),
Class 4 (100 % polyester approx. 250 g/m²),
Class 5 (100 % polyacrylic approx. 300 g/m²).
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)

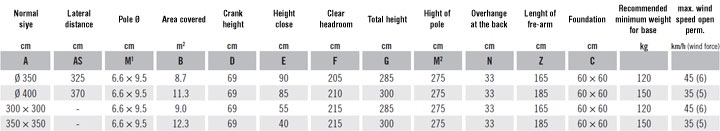

Specification
Looser cover max. 10 cm, concrete thickness min. 30 cm 8 parts
(pay attention to frost depth), water outflow.
****10 km/h less with flounce
The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Height dimensions are based on ground socket M4. These differ slightly depending on the type of base. Except for base M4, 180 kg plus 15.5 m, 240 kg plus 19 cm.
The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage.
In the presence of several sunshades, the min. distance between one sunshade and another and between sunshades and walls shall be 20 cm.
