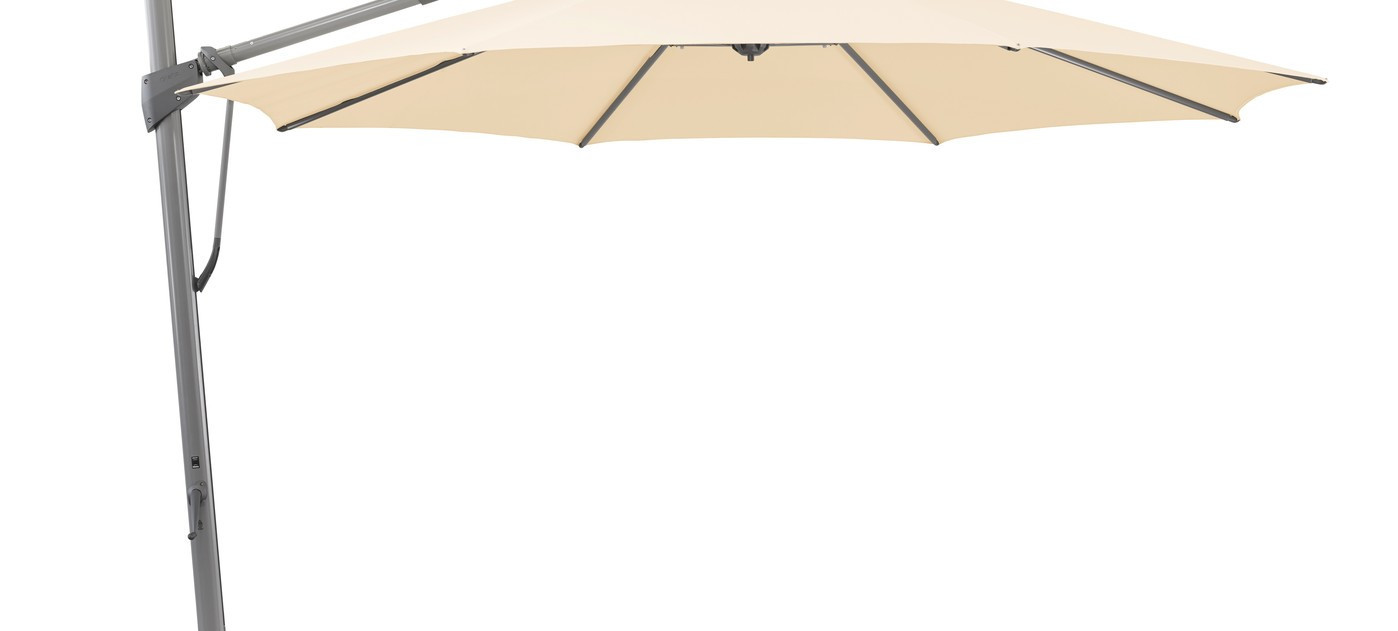

Sombrano S+ umbrella max. R 4 m or 3,5 x 3,5 m
colors from stock (quickship program), (natural anodised or anthracite powder-coated):
without flounce, in colors: 157 / 158 / 404 / 417 / 420 / 422 / 4461 / 501 / 502 / 523 / 556 / 686 / 803
shape:
round or square
frame:
8 ribs
Aluminium
Mast profile oval 66 × 95 × 3 mm
Crank housing, trolley, support arm guide and head made from die-cast aluminium
Screws and rivets made from stainless steel
M4 turnable ball-bearing base, powder-coated cast steel, is included
function:
Crank drive for synchronous opening
Roof pitch in both directions up to 54° using a comfort crank
360° rotation thanks to the turntable base with pedal
frame colour:
Natural anodised aluminium
Anthracite powder-coated aluminium
flounce:
Only available without
Protective cover is included in the delivery
shade cover:
self-tautening thanks to the flexible rod ends, available in materials:
Class 2 (100 % polyester, approx. 220 g/m²),
Class 4 (100 % polyester, approx. 250 g/m²),
Class 5 (100 % polyacrylic, approx. 300 g/m²).
Video presentation
Material class 2 (100 % polyester approx. 220 g/m²)
Material class 4 (100 % polyester approx. 250 g/m²)
Material class 5 (100 % polyacrylic approx. 300 g/m²)
Specification
Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage.
The listed measures represent extrapolated average values that may differ slightly from the product (±2% ±5 cm).
The height dimensions are based on the ground socket M4. With the base M4, 120 kg, these vary by 11.5 cm, and with the base M4, 180 kg, by 15.5 cm. With the natural granite base, 120 kg, these vary by 9.5 cm, and with the natural granite base with a set of castors, by 14 cm.
The max. Wind speed limits as per our separate sheet apply only if the parasol canopy is in a horizontal position and if there is a fixed ground anchorage. A base with the specified minimum weight is not sufficient.
In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.
