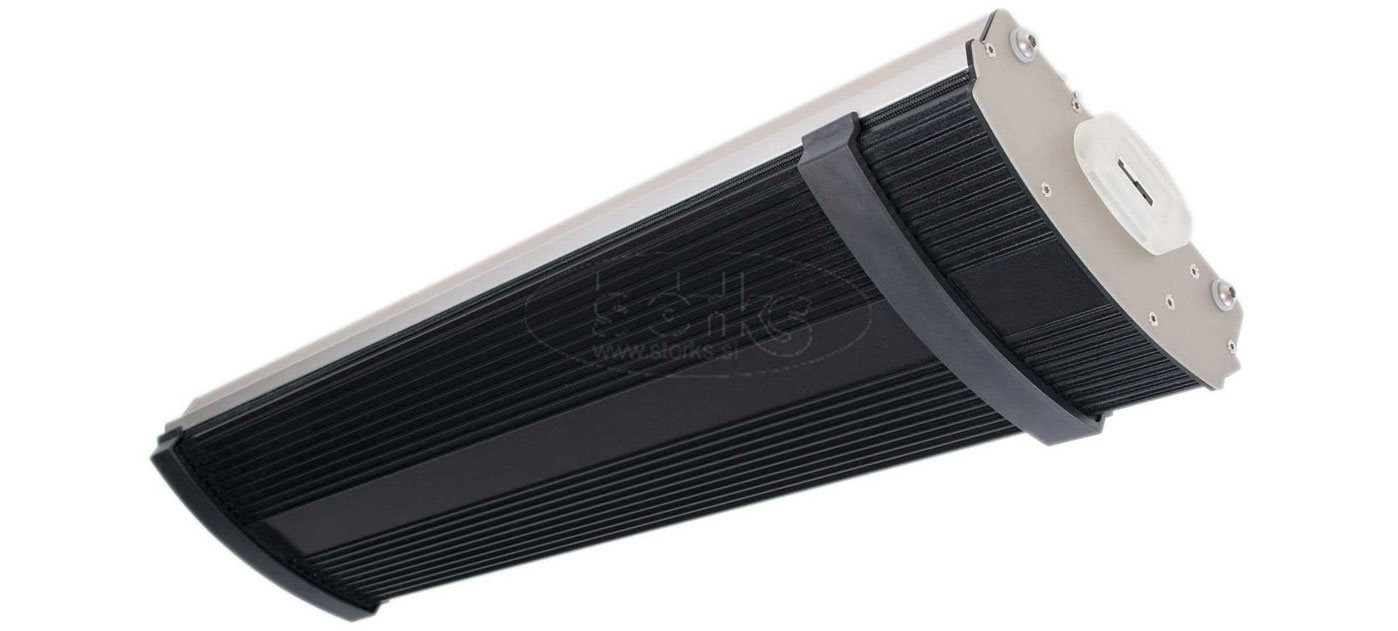

HEATZONE black 1800W, IPx4
HeatZone Dark Radiator: Premium Heating Solution
The HeatZone, a dark radiator, is the heart of the ExtremeLine infrared heating system. It is technically ideal for cold and warm winter gardens, living rooms, and enclosed public areas. Its elegant and simple design allows it to blend seamlessly into any environment, and it was honored with the "reddot Design Award" in 2010.
Key Features
- Tiled Stove Principle: The HeatZone operates on this principle, utilizing a highly efficient ceramic-coated heating surface that releases predominantly natural infrared heat, perceived as very pleasant.
- High Efficiency: The unique ceramic coating is crucial for its high efficiency, setting it apart from many replicas of our legendary dark radiator.
Specifications
- Light Emission: None
- Power Supply: 230V/AC 50 Hz
- Heating Area:
- 1,800W: 5.36 m² (115 x 17 x 7.5 cm)
- Spatial Range: Approx. 3 m
- Surface Temperature: Max. 360°C
- Radiation Efficiency: 65%
- Beam Angle: 60°
- IP Protection Class: IPx4
- Heating Time: Approx. 10 minutes
- Lifespan: 20,000 hours
- Infrared Range: IR-C long wave 3,000 nm – 12,000 nm
- Minimum Distance:
- 6 cm to wood and metal
- 15 cm to glass, awning, and fabric
Compliance
The ExtremeLine HeatZone dark radiator complies with the Ecodesign Directive 2015/1188. [Click here for the declaration of conformity](DE_Ecodesign_Directive & EN_Ecodesign_Directive).
Inclusions
- 2x Joint for the HeatZone
- 2x Mounting Plates (optional)
- Wireless Temperature Sensor (optional)
- Remote Control: Included only with the ExRemote control. Not included for Somfy, Elsner, or BLE controls.
Control Options
The ExtremeLine infrared heaters can also be controlled without a radio system. They come with an integrated ON/OFF switch. Additional control options include:
- A simple ON/OFF switch via a conventional wall switch.
- Integration into a BUS system via a switching or dimming actuator.
- Control via a thermostat, such as those from Salus.
Please ensure compliance with the Ecodesign Directive 2015/1188 when using this product.
