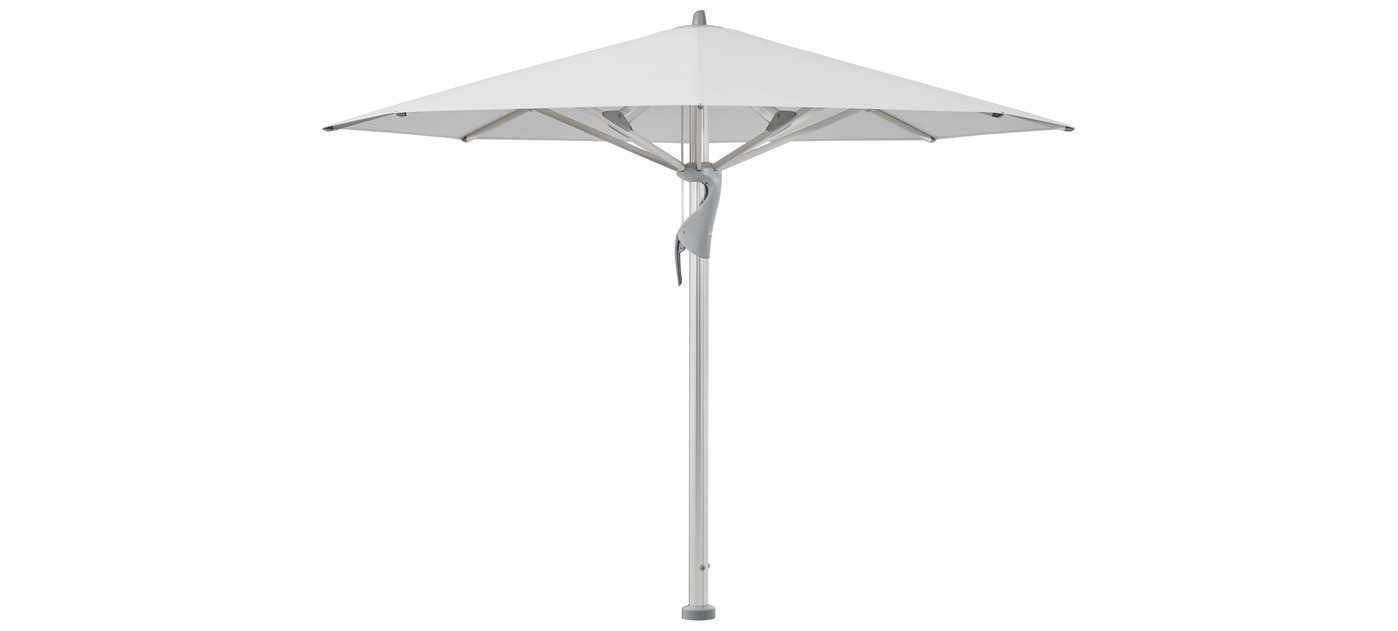

Castello Pro umbrella max. R 6 m or 5 x 5 m
shape:
square, rectangular or round
function:
Quick opening and closing with the tensioning lever
Opposing opening principle for easy opening and high closing height
Lockable tensioning lever
frame color:
Natural anodised aluminium
Anthracite (RAL 7016) matt powder-coated aluminium
Additional RAL colours: for a surcharge
special sizes:
Available on request.
flounce:
available with or without
frame:
8 ribs
Aluminium
Profiled, non-rotatable mast, ∅ 90 mm, wall thickness 3,2 mm
Runner and crown made from fibreglass-reinforced plastic parts
Screws and rivets made from stainless steel
protective cover:
Can be ordered as an optional extra
shade cover:
Self-tautening thanks to the flexible rod ends, available in material:
Class 5 (100 % polyacrylic, approx. 300 g/m²)
Each of our umbrellas is hand-crafted upon request, allowing for complete customization of every component to perfectly match your patio's aesthetic.
We leverage our expertise, experience, and state-of-the-art 3D projection technology to meet your desires, creating a unique umbrella that fulfils all your requirements.
We also offer the option to design and develop various custom shapes and sizes and numerous other tailored solutions to ensure your vision becomes a reality.
Video presentation
Material class 5 (100 % polyacrylic approx. 300 g/m²)
Specification
Looser cover max. 10 cm, concrete thickness min. 30 cm 8 parts
(pay attention to frost depth), water outflow,
supply line te electric kit, 7-wire
* reinforced top rods
****10 km/h less with flounce
The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).
Height dimensions are based on ground socket M4. These differ slightly depending on the type of base. Except for base M4, 180 kg plus 15.5 m, 240 kg plus 19 cm.
The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage.
In the presence of several sunshades, the min. distance between one sunshade and another and between sunshades and walls shall be 20 cm.
