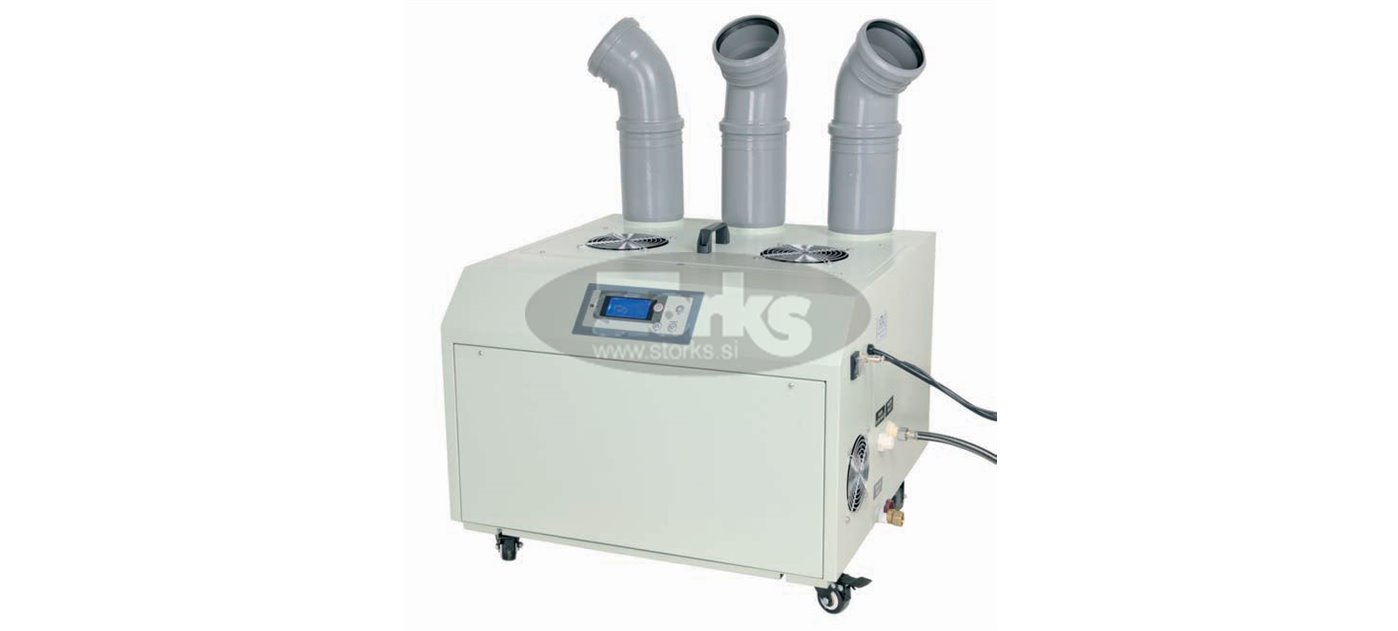

FOGGY 18000 portable ultrasonic system for disinfection and humidity control, 18L/h
Professional mist-effect ultrasonic humidifier nebulizer, with a chassis made of painted anticorrosive material and braked wheels for transport, controlled by a microprocessor that effectively contributes to environmental sanitation in accordance with Decree 274, which "regulates the activities of cleaning, disinfection, disinfestation, rodent control, and sanitation."
Technical Features of the Sanitizing Nebulizer: Net weight: 40 Kg Dimensions: 640 x 650 x 500 mm Water flow: 18 L/h Airflow: 630 m3/h Average droplet diameter: 5 μm (microns) Power supply: 230V - 50 Hz Water treatment requires filtering and softening Power: 1800 W Outlet pipe diameter: 3x 110 mm Max outlet pipe length: 8 m
Why do we recommend this nebulizer for disinfection and humidity control? The FOGGY 18000 nebulizer ultrasonic humidifier with a fog effect is a modern tool for sanitizing environments and controlling relative humidity.
In particular, it performs:
- Disinfection cycles
- Control of the microclimate through humidity regulation
Advantages of the Foggy 18000 Sanitizing Nebulizer:
- Nebulizer for disinfection with no mechanical drive, resulting in no noise and ease of maintenance.
- The diameter of the fog output is only 1-10 μm (microns).
- Operates quietly and safely with a cold mist system.
- Easy to install and move, weighing 40 kg and equipped with braked wheels.
- Ideal for centralized humidification systems thanks to the extendable hose of up to 8 meters.
- High atomization capacity, nearly 100%, producing a very fine and uniform mist for rapid attainment of required conditions with water savings.
- Separate and ventilated electrical panel design makes the Foggy 18000 sanitizing nebulizer suitable for continuous 24-hour operation.
- Features fittings for water inlet, tank drainage, and overflow, making it ideal for automation.
- Utilizes the best technology in ultrasonic nebulization, effectively removing all dissolved liquids from the water through ultrasonic oscillations.
- Features a chassis made of corrosion-resistant stainless steel with a powder-coated finish, a water filling spout, an operating switch, and hydraulic connections.
- Control is managed by a microprocessor with an integrated humidity sensor, ensuring an automatic process.
- Maintenance is simple, with low operational and maintenance costs. Since water is purified before entering the ultrasonic humidifier, maintenance is less demanding than in a steam system.
- Ensures precise relative humidity control, automatically switching fog on/off based on the relative humidity setpoint.
- The Foggy 18000 is a professional ultrasonic humidifier with a mist effect, controlled by a microprocessor, and effectively contributes to environmental sanitation according to Decree 274. It conducts disinfection cycles and microclimate control through humidity regulation.
Applications of the Foggy 18000 Sanitizing Nebulizer:
- Printers
- Tobacco Industry
- Timber industry
- Data processing centers
- Paper industry
- Art and Antiques
- Automotive Industry
- Cold rooms
- Textile industry
- Offices
- Pharmaceutical Industry
- Manufacturing industry
- Explosives Industry
- Food industry
- Medical device industry
- Electronics Industry
- Hatcheries
- HVAC systems
- Concert halls and organs
- And more
Standard Equipment for Sanitization and Humidification: The Foggy 18000 sanitizing nebulizer comes in a wooden case and includes:
- Foggy 18000 unit
- Nebulizer tube (25cm)
- Elbow (45°)
- Installation, use, and maintenance manual.
How the Ultrasonic Technology of the Sanitizing Nebulizer Works: Ultrasonic nebulizers use a piezoelectric translator to create high-frequency mechanical oscillations in the water. Water attempts to follow these oscillations but cannot do so due to its weight and mass inertia. This creates a momentary vacuum during the negative oscillation, causing the water to cavitate into vapor. The transducer follows this with a positive oscillation, generating high-pressure compression waves at the water's surface, releasing tiny water vapor molecules into the air. This results in an extremely fine mist, about 1 μm in diameter, which is quickly absorbed into the airflow. Since the mist is created through oscillation rather than heat, there is no need to raise the water temperature. Ultrasonic humidifiers can instantly generate humidity without waiting for water to boil. This precise on/off humidity control is a unique feature of ultrasonic humidifiers. Furthermore, ultrasonic humidifiers can be smaller in size while still producing substantial amounts of steam compared to other humidifiers. The ultrasonic humidifier activates when the measured humidity falls below a set value and turns off when it exceeds the set threshold, ensuring effortless maintenance of high humidity levels in a room as the ultrasonic humidifier operates automatically.
